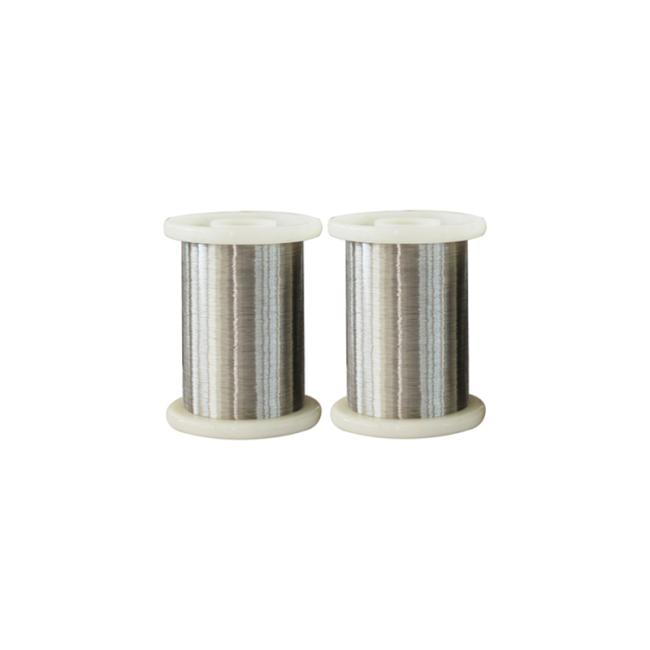

Nichrome Wire Ni60Cr15 Bright Annealed Nickel Chromium Wire 0.02-1.0mm for High Temperature Applications
Grade: NiCr 60/15
|
Performance\ material
|
Cr10Ni90
|
Cr20Ni80
|
Cr30Ni70
|
Cr15Ni60
|
Cr20Ni35
|
Cr20Ni30
|
|
|
Composition
|
Ni
|
90
|
Rest
|
Rest
|
55.0~61.0
|
34.0~37.0
|
30.0~34.0
|
|
Cr
|
10
|
20.0~23.0
|
28.0~31.0
|
15.0~18.0
|
18.0~21.0
|
18.0~21.0
|
|
|
Fe
|
|
≤1.0
|
≤1.0
|
Rest
|
Rest
|
Rest
|
|
|
Maximum temperatureºC
|
1300
|
1200
|
1250
|
1150
|
1100
|
1100
|
|
|
Meltiing point ºC
|
1400
|
1400
|
1380
|
1390
|
1390
|
1390
|
|
|
Density g/cm3
|
8.7
|
8.4
|
8.1
|
8.2
|
7.9
|
7.9
|
|
|
Resistivity at 20ºC((μΩ·m)
|
|
1.09±0.05
|
1.18±0.05
|
1.12±0.05
|
1.00±0.05
|
1.04±0.05
|
|
|
Elongation at rupture
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
|
|
Specific heat
J/g.ºC
|
|
0.44
|
0.461
|
0.494
|
0.5
|
0.5
|
|
|
Thermal conductivity
KJ/m.hºC
|
|
60.3
|
45.2
|
45.2
|
43.8
|
43.8
|
|
|
Coefficient of lines expansion
a×10-6/
(20~1000ºC)
|
|
18
|
17
|
17
|
19
|
19
|
|
|
Micrographic structure
|
|
Austenite
|
Austenite
|
Austenite
|
Austenite
|
Austenite
|
|
|
Magnetic properties
|
|
Non-magnetic
|
Non-magnetic
|
Non-magnetic
|
Weak magnetic
|
Weak magnetic
|
|
It contains rare-earth additions for increased resistance, especially under conditions of frequent switching or wide temperature fluctuations.This is an excellent choice for heating elements operating at a temperature up to 1100 C, which include the majority of household appliances and other heating elements operating in an average range of temperatures, and where the exceptional properties of Resistohm 80 are not necessary.
Its applications include all sorts of heating elements and resistances (toasters elements, potentiometer resistances and other household and industrial appliances).
Ni-Cr Alloy, Ni-Fe Alloy,Cu-Ni Alloy,nickel iron alloy wire, Fechral, thermocouple wire, pure nickel and other precision alloy materials in the form of wire, strip, rod, bar and plate.Heating Resistance Alloy, Nickel Chromium Alloy,Nickel Iron Alloy, Nickel Copper Alloy,Iron Chrome Alumium Alloy,Kovar,Invar,Nichrome,Soft Expension Alloy,Tankii Alloy,Alloy Wire, Alloy Rod, Alloy Sheet, Alloy Strip, Alloy Ribbon, Alloy Flat Wire,Alloy Bar, Alloy Plate, Heating elements
