0.1mm * 8mm Pure Nickel 200 Strip , Nickel 201 for Cadmium Battery
0.1mm * 8mm Pure Nickel 200 Strip , Nickel 201 for Cadmium Battery
Product Description
Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F. It has outstanding magnetic properties and thermal and electrical conductivity.

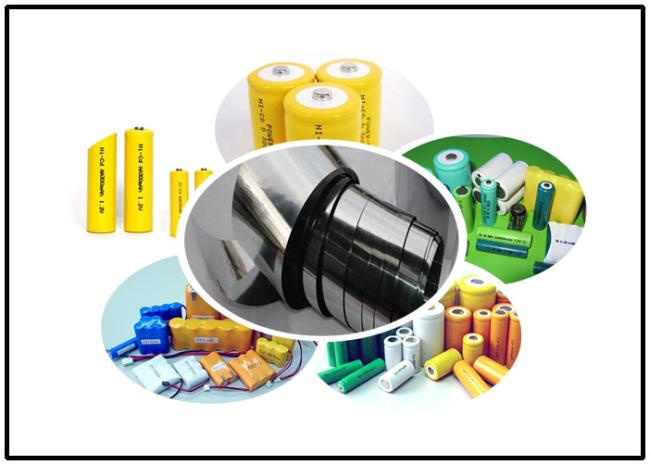

Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.
Chemical Composition of Pure Nickel Strip:
|
Nickel |
99.6% |
|
Copper |
0.25% |
|
Iron |
0.40% |
|
Manganese |
0.35% |
|
Carbon |
0.15% |
|
Silicon |
0.35% |
|
Sulfur |
0.01% |
Nickel Strip Chemical requirements
|
Grade |
Ni+Co |
Cu |
Si |
Mn |
C |
Mg |
S |
P |
Fe |
|
N4 |
99.9 |
0.015 |
0.03 |
0.002 |
0.01 |
0.01 |
0.001 |
0.001 |
0.04 |
|
N6 |
99.6 |
0.10 |
0.10 |
0.05 |
0.10 |
0.10 |
0.005 |
0.002 |
0.10 |
|
Ni201 |
99.0 |
≤0.25 |
≤0.35 |
≤0.35 |
≤0.02 |
/ |
≤0.01 |
/ |
≤0.40 |
|
Ni200 |
99.0 |
0.20 |
0.30 |
0.30 |
0.15 |
/ |
0.01 |
/ |
0.40 |
Nickel Strip Product Precision
|
Thickness |
Thickness allowance |
Burr height |
Width scope and tolerance |
|||||
|
2≤w<10 |
10≤w<50 |
50≤w<100 |
100≤w<150 |
150≤w<200 |
200≤w |
|||
|
0.02≤t<0.05 |
±0.003 |
≤0.005 |
± |
±0.10 |
±0.15 |
±0.20 |
±0.30 |
±0.50 |
|
0.05≤t<0.1 |
±0.005 |
≤0.01 |
||||||
|
0.1≤t<0.2 |
±0.008 |
≤0.015 |
||||||
|
0.2≤t<0.3 |
±0.012 |
≤0.02 |
||||||
|
0.3≤t<0.4 |
±0.015 |
≤0.03 |
± |
±0.15 |
±0.25 |
±0.50 |
±0.80 |
±1.00 |
|
0.4≤t<0.6 |
±0.025 |
≤0.05 |
||||||
|
0.6≤t<0.8 |
±0.030 |
≤0.06 |
± |
±0.40 |
±0.50 |
±0.50 |
±0.80 |
±1.00 |
|
0.8≤t<1.0 |
±0.040 |
|||||||
|
1.0≤t<1.2 |
±0.050 |
≤0.08 |
± |
±0.50 |
±0.80 |
±1.00 |
±1.00 |
±1.50 |
|
1.2≤t<1.4 |
±0.060 |
|||||||
|
1.4≤t<1.7 |
±0.070 |
≤0.10 |
||||||
|
1.7≤t<2.0 |
±0.080 |
|||||||
Physical properties of Pure Nickel Strip:
|
Density, g/cm3 |
8.89 |
|
Melting Range, °C |
1435-1446 |
|
Specific Heat, J/kg•°C |
456 |
|
Curie Temperature, °C |
360 |
Properties of Pure Nickel Strip:
- Higher electrical conductance
- Raised Curie Temperature
- Superior Magnetostrictive Properties
- Excellent thermal conductivity
Applications of Nickel 200 Strip:
- Manufacturing artificial synthetic fibers.
- Chemical Treatment and Preservation.
- Aerospace Industry.
- Cathode tap
- Cell connector
