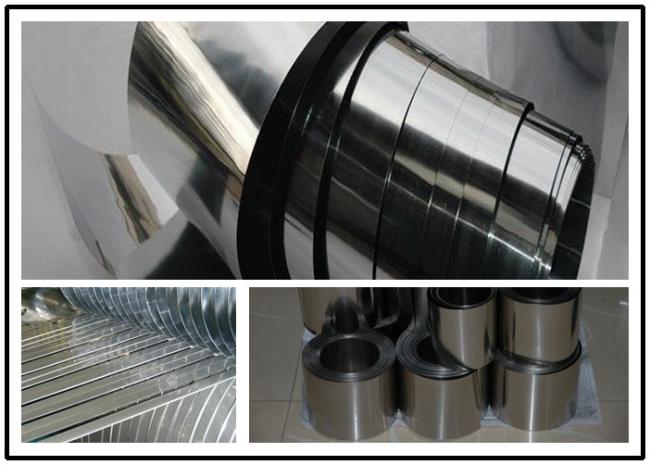

Purity ＞ 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil
Purity ＞ 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil
Product Description
Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F. It has outstanding magnetic properties and thermal and electrical conductivity.
Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.
1. pure nickel foil for sale
2. Purity: more than 99.5%
3. Thickness: 0.005-2mm
4. Standard: ASTM B162
5. MOQ: 5 kilogram
Specification of Pure Nickel Strip:
|
Strip Size |
Thickness – 0.005mm above, Width- 0.2mm above |
Chemical Composition of Pure Nickel Strip:
|
Nickel |
99.6% |
|
Copper |
0.25% |
|
Iron |
0.40% |
|
Manganese |
0.35% |
|
Carbon |
0.15% |
|
Silicon |
0.35% |
|
Sulfur |
0.01% |
Physical properties of Pure Nickel Strip:
|
Density, g/cm3 |
8.89 |
|
Melting Range, °C |
1435-1446 |
|
Specific Heat, J/kg•°C |
456 |
|
Curie Temperature, °C |
360 |
Nickel Strip Chemical requirements
|
Grade |
Ni+Co |
Cu |
Si |
Mn |
C |
Mg |
S |
P |
Fe |
|
N4 |
99.9 |
0.015 |
0.03 |
0.002 |
0.01 |
0.01 |
0.001 |
0.001 |
0.04 |
|
N6 |
99.6 |
0.10 |
0.10 |
0.05 |
0.10 |
0.10 |
0.005 |
0.002 |
0.10 |
|
Ni201 |
99.0 |
≤0.25 |
≤0.35 |
≤0.35 |
≤0.02 |
/ |
≤0.01 |
/ |
≤0.40 |
|
Ni200 |
99.0 |
0.20 |
0.30 |
0.30 |
0.15 |
/ |
0.01 |
/ |
0.40 |
Nickel Strip Product Precision
|
Thickness |
Thickness allowance |
Burr height |
Width scope and tolerance |
|||||
|
2≤w<10 |
10≤w<50 |
50≤w<100 |
100≤w<150 |
150≤w<200 |
200≤w |
|||
|
0.02≤t<0.05 |
±0.003 |
≤0.005 |
± |
±0.10 |
±0.15 |
±0.20 |
±0.30 |
±0.50 |
|
0.05≤t<0.1 |
±0.005 |
≤0.01 |
||||||
|
0.1≤t<0.2 |
±0.008 |
≤0.015 |
||||||
|
0.2≤t<0.3 |
±0.012 |
≤0.02 |
||||||
|
0.3≤t<0.4 |
±0.015 |
≤0.03 |
± |
±0.15 |
±0.25 |
±0.50 |
±0.80 |
±1.00 |
|
0.4≤t<0.6 |
±0.025 |
≤0.05 |
||||||
|
0.6≤t<0.8 |
±0.030 |
≤0.06 |
± |
±0.40 |
±0.50 |
±0.50 |
±0.80 |
±1.00 |
|
0.8≤t<1.0 |
±0.040 |
|||||||
|
1.0≤t<1.2 |
±0.050 |
≤0.08 |
± |
±0.50 |
±0.80 |
±1.00 |
±1.00 |
±1.50 |
|
1.2≤t<1.4 |
±0.060 |
|||||||
|
1.4≤t<1.7 |
±0.070 |
≤0.10 |
||||||
|
1.7≤t<2.0 |
±0.080 |
|||||||
Properties of Pure Nickel Strip:
- Higher electrical conductance
- Raised Curie Temperature
- Superior Magnetostrictive Properties
- Excellent thermal conductivity
Applications of Nickel 200 Strip:
- Manufacturing artificial synthetic fibers.
- Chemical Treatment and Preservation.
- Aerospace Industry.
- Cathode tap
- Cell connector
