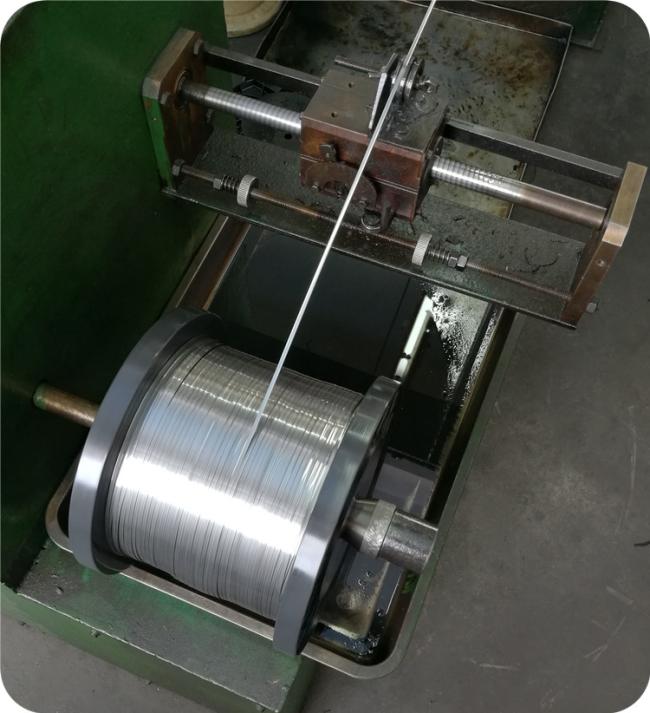

Pure Nickel 200 ribbon UNS NO2200 flat Wire for lamp and chemical machinery
Nickel 200(UNS NO2200)&Nickel 201(UNS NO2201)
Nickel 200 and Nickel 201 are solid solution strengthened,commercially pure wrought material with good mechanical properties over a wide range of temperature and excellent resistance to many corrosives,in particular hydroxides.Nickel 201 was a modification of 200 to control carbon(0.02max) which keeps it from it being embrittled by intergranular precipitates at temperature of 600°Fto 1400°F in many processes.
Nickel 200$201 Application
- Food processing equipment
- Marine and offshore engineering
- Salt production
- Caustic handling equipment
- Manufacture and handling of sodium hydroxide,particular at temperatures above 300°F
- Reactors and vessels in which fluorine is generated and reacted with hydrocarbons
Chemical Composition
| Ni | |||||||||||||||||||
| Purity | Cu | Si | Mn | C | Mg | S | P | Fe | Pb | Bi | As | Sb | Zn | Cd | Sn | Impurity | |||
| 201 | Min | 99.90% | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | |
| Max | _ | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 | 0.001 | 0.001 | 0.001 | 0.001 | 0.005 | 0.001 | 0.001 | 0.1 | ||
| 200 | Min | 99.60% | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | |
| Max | _ | 0.10 | 0.10 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 | 0.002 | 0.002 | 0.002 | |||||||
Application where Nickel 200-201can be uesd include chemical processing and storage,synthetic fiber production,and processes where solium hydroxide and fluorine is uesd.Other applications include aerospace and defense as well as food processing.Nickel 200-201 has exceptional resistances to caustic alkalies at various temperature and concentrations.
Product item size
| Item | Size |
| Plate/Sheet | 0.5~60.0mm(THK)*2000mm(WIDTH)*6000mm(LENGTH) |
| Bar ( Round) | Φ5.5~250mm |
| Bar (Square) | 40~240mm*40~240mm |
| Strip | 0.05~3.0mm(THK)*≤420mm(WIDTH) |
| Seamless Pipe | 0.2mm~508mm(OD)*0.5mm~18mm(WT) |
| Welded Tube | 0.5mm~120mm(OD)*0.05mm~10mm(WT) |
| Wire |
Φ0.1mm~18mm |
