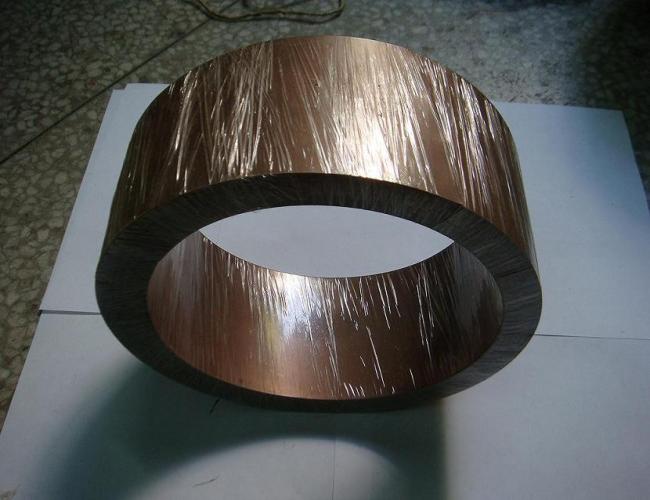

30 - 110 Mm Width Copper alloy Sheet 0.38 UΩ / M Precision Shunts Manganin
manganin Sheet / 0.38uΩ/m Precision shunts manganin
The distinctive features of this alloy is a very small temperature coefficient of resistance, low in copper thermoelectric potential, and has the special excellent resistance stability.In the electrical and instrument measuring technology as well as the benchmark unit with a resistor has been widely used.Type manganin alloy also has good weldability and workability, can pull microfilament, rolling piece, foil, but poor corrosion resistance and oxidation resistance.
Strip specification range
Thickness: 0.01-7 (mm) width: 5-300 (mm)
Chemical composition
| brand | C | S | Bi | Sb | Ni+Co | Mn | Si | Cu |
| ≤ | ||||||||
| Manganese bronze(6j13) | 0.05 | 0.02 | 0.002 | 0.002 | 2~5 | 11~13 | - | remaining |
Technical performance
| resistivity() | Using temperature range(ºC) | density(g/cm³) | elongation | Temperature coefficient of resistance | For copper electromotive force |
| 0.44±0.04 | 10~80 | 8.4 | ≥15 | 0~+40 | 2 |
The marked characteristics of manganese copper alloy is a very small temperature coefficient of resistance, low identical electromotive force, and has the special excellent resistance stability.In the electrical and instrument measuring technology as well as the benchmark unit with a resistor is widely used.Manganese copper alloy has good welding performance and machining performance, can form the fine silk, rolling piece, foil, but poor corrosion resistance and oxidation resistance.
Strip specification range
