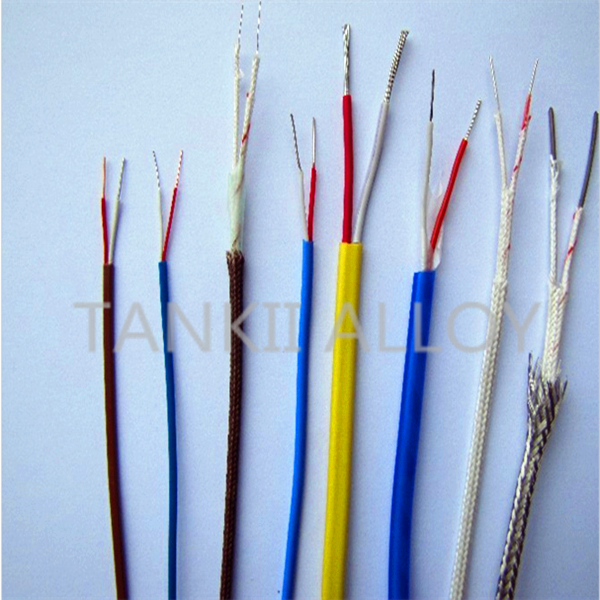

Purple and white color EX extension Thermocouple Cable With PTFE Insulation And Shield
Price:
Negotiation
MOQ:
200 Meters
Delivery Time:
Negotiable
Brand:
Tankii
Product Description
Purple and white color EX Thermocouple extension Cable With PTFE Insulation And Shield
Description
Name:Shield Cable
Model No.:Tankii
Size:3*0.5mm2 3*1.0mm2 3*1.5mm2 3*1.0mm2 4*1.0mm2, same as 2 cores
Feature
Ratings:-60ºC~+200ºC, 300/ 500V
Conductor:Tinned Copper
Insulation:PTFE
Sheath:PTFE or fiberglass braid
Shield:Tinned Copper ,Stainless steel wire
Application
For High Temperature equipment.
Name:Shield Cable
Model No.:Tankii
Size:3*0.5mm2 3*1.0mm2 3*1.5mm2 3*1.0mm2 4*1.0mm2, same as 2 cores
Feature
Ratings:-60ºC~+200ºC, 300/ 500V
Conductor:Tinned Copper
Insulation:PTFE
Sheath:PTFE or fiberglass braid
Shield:Tinned Copper ,Stainless steel wire
Application
For High Temperature equipment.
Detailed Description
| Thermocouple Code | Comp. Type | Comp. Wire Name | Positive | Negative | ||
| Name | Code | Name | Code | |||
| S | SC | copper-constantan 0.6 | copper | SPC | constantan 0.6 | SNC |
| R | RC | copper-constantan 0.6 | copper | RPC | constantan 0.6 | RNC |
| K | KCA | Iron-constantan22 | Iron | KPCA | constantan22 | KNCA |
| K | KCB | copper-constantan 40 | copper | KPCB | constantan 40 | KNCB |
| K | KX | Chromel10-NiSi3 | Chromel10 | KPX | NiSi3 | KNX |
| N | NC | Iron-constantan 18 | Iron | NPC | constantan 18 | NNC |
| N | NX | NiCr14Si-NiSi4Mg | NiCr14Si | NPX | NiSi4Mg | NNX |
| E | EX | NiCr10-Constantan45 | NiCr10 | EPX | Constantan45 | ENX |
| J | JX | Iron-constantan 45 | Iron | JPX | constantan 45 | JNX |
| T | TX | copper-constantan 45 | copper | TPX | constantan 45 | TNX |
| The color of Insulation and Sheath | ||||||
| Type | Insulation Color | Sheath Color | ||||
| Positive | Negative | G | H | |||
| / | S | / | S | |||
| SC/RC | RED | GREEN | BLACK | GRAY | BLACK | YELLOW |
| KCA | RED | BLUE | BLACK | GRAY | BLACK | YELLOW |
| KCB | RED | BLUE | BLACK | GRAY | BLACK | YELLOW |
| KX | RED | BLACK | BLACK | GRAY | BLACK | YELLOW |
| NC | RED | GRAY | BLACK | GRAY | BLACK | YELLOW |
| NX | RED | GRAY | BLACK | GRAY | BLACK | YELLOW |
| EX | RED | BROWN | BLACK | GRAY | BLACK | YELLOW |
| JX | RED | PURPLE | BLACK | GRAY | BLACK | YELLOW |
| TX | RED | WHITE | BLACK | GRAY | BLACK | YELLOW |
| Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign | ||||||
Packaging & Delivery
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
Purple and white color EX Thermocouple extension Cable With PTFE Insulation
Application:
About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable, thermocouple connector, and other thermocouple products.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business. Welcome to call me or email to me for more info on t type thermocouple extension wire.
