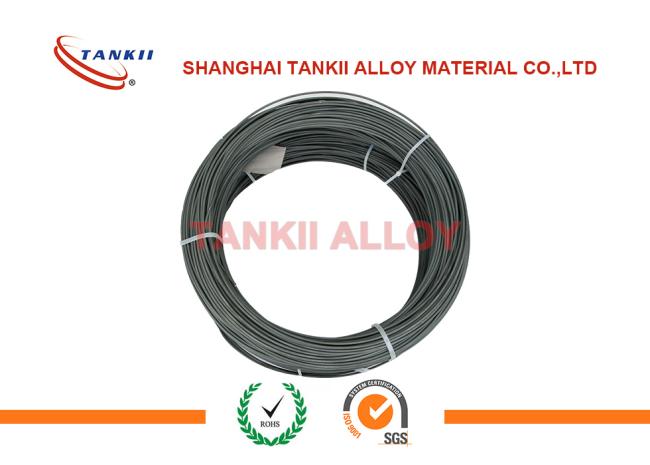

Tankii Alloy Thermocouple Thick Wire / Rod With 4.4mm 6mm 8mm Oxidized Color In Roll
Tankii Alloy Thermocouple Thick Wire / Rod With 4.4mm 6mm 8mm Oxidized Color In Roll
This is the most common thermocouple type that provides the widest operating temperature range. Type K thermocouples generally will work in most applications because they are nickel based and have good corrosion resistance.
Thermocouple thick wire or rod is available as per your request.
Characters of K type thermocouple alloys:
1. Positive leg is non-magnetic , negative leg is magnetic.
2. Traditional base-metal choice for high temperature work.
3. Appropriate for use in oxidizing or inert atmospheres at temperatures up to 1260°C (2300°F).
4. Vulnerable to sulfur attack (refrain from exposing to sulfur-containing atmospheres).
5. Perform best in clean oxidizing atmospheres.
6. Not recommended for use under partially oxidizing conditions in vacuum, or when subjected to alternating cycles of oxidization and reduction.
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6
|
B | 600~1700 |
|
PtRh13-Pt
|
R | 0~1600 |
|
PtRh10-Pt
|
S | 0~1600 |
|
NiCr-NiSi
|
K | -200~1300 |
|
NiCr-CuNi (constantan)
|
E | -200~900 |
|
Fe-CuNi (constantan)
|
J | -40~750 |
|
Cu-CuNi (constantan)
|
T | -200~350 |
|
NiCrSi-NiSi
|
N | -200~1300 |
Thermocouple type and grade for thermocouple TYPE K ROD
| Thermocouple Type | Grade | Temperature Range(°C) | Allowable Deviation |
| type K and type N | I | -40-1100 | ±1.5°C or±0.4%t |
| II | -40-1300 | ±2.5°C or ±0.75%t | |
| III | -200-40 | ±2.5°C or ±1.5%t | |
| type E | I | -40-1100 | ±1.5°C or ±0.4%t |
| II | -40-1300 | ±2.5°C or ±0.75%t | |
| III | -200-40 | ±2.5°C or±1.5%t | |
| type J | I | -40-750 | ±1.5°C or ±0.4%t |
| II | -40-750 | ±2.5°C or ±0.75%t | |
| type T | I | -40-350 | ±0.5°C or± 0.4%t |
| II | -40-350 | ±1.0°C or± 0.75%t | |
| III | -200-40 | ±1.0°C or± 1.5%t | |
| NiCr-AuFe0.07 | I | -270-0 | ±0.5°C |
| II | ±1.0°C |
1. Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package.
2. Delivery time: About 7 days, as the order quantity.
3. Delivery: By sea / air/ express as per the qty
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable, thermocouple connector, and other thermocouple products.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.
Welcome to call me at +86-18017475212 or email to me for more details on thermocouple wire or rod.
