Bright Surface Nichrome Ribbon Resistance Alloy For Medical Machinery
Nichrome 80/20 Strip nickel chromium Ribbon Resistance Alloy For Medical machinery
Nickel Chromium Alloy Introduction:
Nickel Chromium alloy has high resistivity, good anti-oxidation properties, high temperature strength, very good form stability and weld ability. It is widely used in electrical heating element material, resistor, industrial furnaces, etc.
Detailed Description:
Grade: NiCr 80/20 is also called Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1
We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 35/20, Karma,Evanohm
Chemical Composition and Propertes:
| Grade | Ni80Cr20 | Ni70Cr30 | Ni60Cr23 | Ni60Cr15 | Ni35Cr20 | Karma | Evanohm | |
|
Nominal composition % |
Ni | Bal | Bal | 58.0-63.0 | 55.0-61.0 | 34.0-37.0 | Bal | Bal |
| Cr | 20.0-23.0 | 28.0-31.0 | 21.0-25.0 | 15.0-18.0 | 18.0-21.0 | 19.0-21.5 | 19.0-21.5 | |
| Fe | ≤1.0 | ≤1.0 | Bal | Bal | Bal | 2.0-3.0 | -- | |
|
Al 1.0-1.7 Ti 0.3-0.5 |
Al 2.7-3.2 Mn0.5-1.5 |
Al 2.7-3.2 Cu2.0-3.0
|
||||||
| Max continuous Operating Temperature(°C) | 1200 | 1250 | 1150 | 1150 | 1100 | 300 | 1400 | |
|
Resisivity (Ω/cmf,20°C) |
1.09 | 1.18 | 1.21 | 1.11 | 1.04 | 1.33 | 1.33 | |
|
Resisivity (μΩ/m,60°F) |
655 | 704 | 727 | 668 | 626 | 800 | 800 | |
|
Density (g/cm³) |
8.4 | 8.1 | 8.4 | 8.2 | 7.9 | 8.1 | 8.1 | |
|
Tensile Strength (N/mm²) |
750 | 875 | 800 | 750 | 750 | 780 | 780 | |

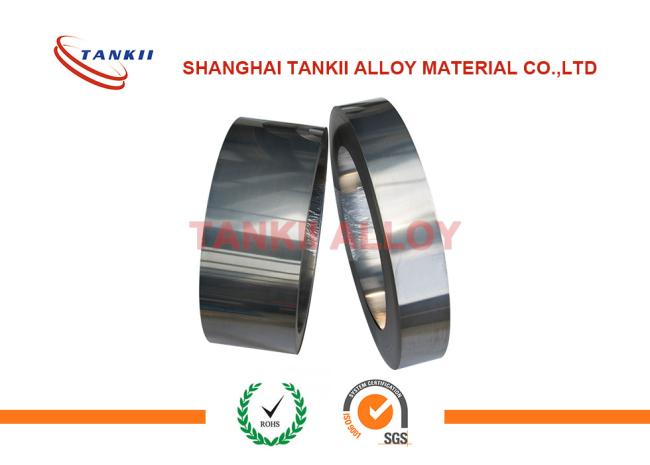

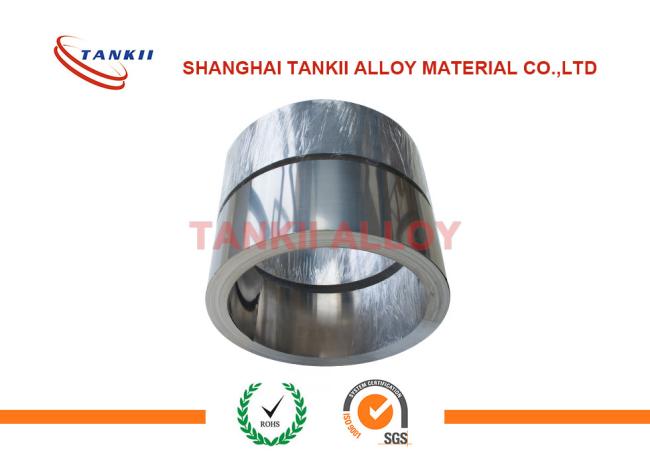

Product: Nichrome Strip/Nichrome Tape/Nichrome Sheet/Nichrome Plate
Grade: Ni80Cr20/Resistohm 80/Chromel A
Chemical Composition: Nickel 80%, Chrome 20%
Resistivity: 1.09 ohm mm2/m
Condition: Bright, Annealed, Soft
Surface: BA, 2B, polished
Dimension: Width 1~470mm, Thickness 0.005mm~7mm
We also produce NiCr 60/15, NiCr 70/30, NiCr 60/23, NiFe80, NiFe50, NiFe42,NiFe36, etc.
Producer: Shanghai Tankii Alloy Material Co., Ltd.
Shanghai Tankii Alloy Material Co., Ltd. is a professional producer of nichrome strip, nichrome sheet, nichrome foil.
