99.6%Min Ni201 / Ni200 / Ni212 /NiMn2 Pure Nickel Micro wire / Strip for Medical 0.025mm
99.6%Min Ni201 / Ni200 / Ni212 /NiMn2 Pure Nickel Micro wire / Strip for Medical 0.025mm

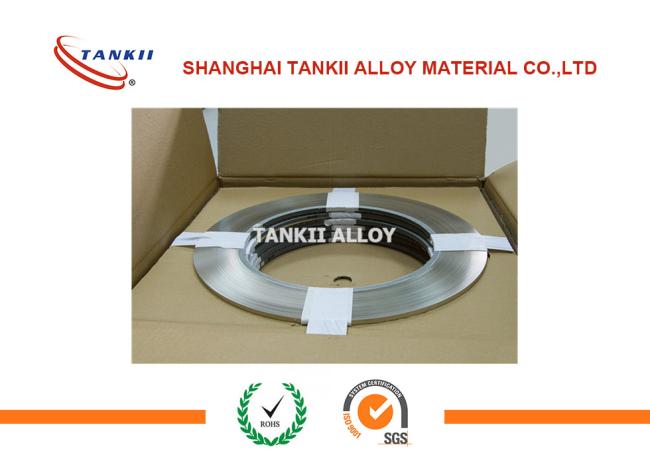

Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600F. It has outstanding magnetic properties and thermal and electrical conductivity.
Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.
Specification of Pure Nickel Strip:
| Strip Size | Thickness - 0.005mm above, Width- 0.2mm above |
Chemical Composition of Pure Nickel Strip:
| Nickel | 99.6% |
| Copper | 0.25% |
| Iron | 0.40% |
| Manganese | 0.35% |
| Carbon | 0.15% |
| Silicon | 0.35% |
| Sulfur | 0.01% |
Physical properties of Pure Nickel Strip:
Density, g/cm3 |
8.89 |
Melting Range, °C |
1435-1446 |
Specific Heat, J/kg.°C |
456 |
Curie Temperature, °C |
360 |
The description of products
1) The chemical composition:
Name |
Brand | Main chemical composition,% | executive standard |
||||||
| Ni+Co | Cu | Si | Mn | C | Mg | impurity | |||
| Pure nickel |
Ni201 | ≥99.0 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.1 | GB/T5235-2007 |
| Ni200 | ≥99.0 | ≤0.10 | ≤0.10 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.5 | ||
2) Size and Tolerances
| Diameter | 0.025-0.03 | >0.03-0.10 | >0.10-0.40 | >0.40-0.80 | >0.80-1.20 | >1.20-2.00 |
| Tolerance | ±0.0025 | ±0.005 | ±0.006 | ±0.013 | ±0.02 | ±0.03 |
3) Properties of Products
| Diameter(mm) | Status | Tensile strength,N/mm2 | Elongation% (no less than) |
|
| Ni201 | Ni200 | |||
| 0.03-0.20 | M | ≥370 | ≥420 | 15 |
| 0.20-0.50 | ≥340 | ≥390 | 20 | |
| 0.50-1.00 | ≥310 | ≥370 | 20 | |
| 1.00-6.00 | ≥290 | ≥340 | 25 | |
| 0.10-0.50 | Y2 | 685-885 | 780-980 | - |
| 0.50-1.00 | 580-785 | 685-835 | - | |
| 1.00-6.00 | 490-640 | 540-685 | - | |
| 0.03-0.09 | Y | 780-1275 | 880-1325 | - |
| 0.09-0.50 | 753-980 | 830-1080 | - | |
| 0.50-1.00 | 685-880 | 735-980 | - | |
| 1.00-6.00 | 535-835 | 640-885 | - | |
Properties of Pure Nickel Strip:
Higher electrical conductance
Raised Curie Temperature
Superior Magnetostrictive Properties
Excellent thermal conductivity
Applications of Nickel 200 Strip:
Manufacturing artificial synthetic fibers.
Chemical Treatment and Preservation.
Aerospace Industry.
Cathode tap
Cell connector
Nickel Eletronic Cigarette Pure Ni200 Heating Wire
Nickel wire 30 28 26 24 gauge Ni200 for electronic cigarette
Pure nickel wire grade: Ni200,Ni201, N4,N6
Pure nickel wire size: 0.025mm-6mm
Description
Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.
Tempered Ni200 nickel wire has the feel and consistency of resistance A1 wire, but almost exactly the same resistance as annealed Ni200 wire. Recommended for temperature controlled devices & chips.
a,Available in 20AWG, 22AWG, 24AWG,26AWG, 28AWG, 30AWG, 32AWG, 34 AWG
b,Tempered for a more firm end product
c,Perfect for temperature controlled devices
d,MUCH easier to build with than annealed Ni200
e,NOTE: Heating this wire above 750C (1382 F) will effectively anneal the wire and make soft.
