N Type Nichrome Strip 0.2 - 0.8mm Thickness For Thermocouple Connector Tabs
N Type Thermocouple Strips Nichrome Nickel Strips Used For Thermocouple Connector Tabs 0.2mm to 0.8mm Thickness
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.

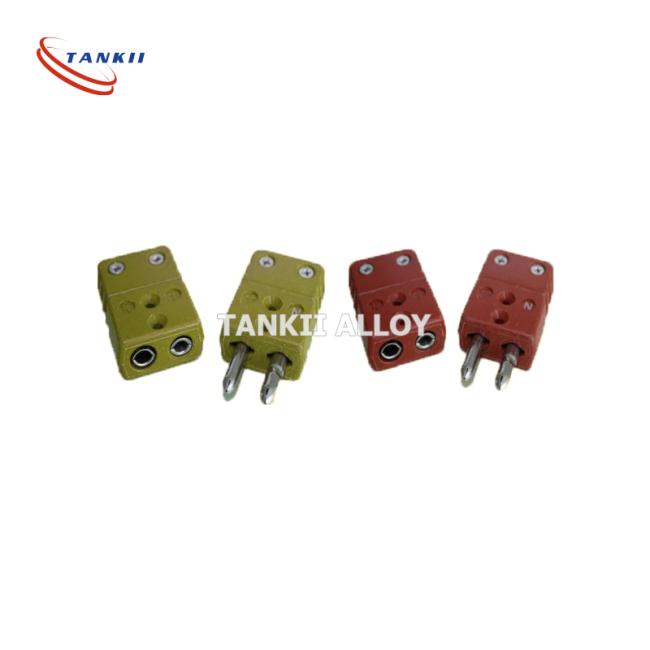

The thermocouple strip have excellent performance and are extensively used in the thermcouple connector's plug.
Thermocouple temperature range and tolerance
| Type | Standard | Operating temperature range (°C) | Tolerance(°C) | |||
| Long term | Short term | Grade | Temperature range | Tolerance | ||
| Type K | GB/T2614 K | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type N | GB/T17615 N | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type E | GB/T4993 E | 750 | 900 | I | -40~800 | ±1.5°C/±0.4%t |
| II | -40~900 | ±2.5°C/±0.75%t | ||||
| Type J | GB/T4994 J | 600 | 750 | I | 0~750 | ±1.5°C/±0.4%t |
| II | ±2.5°C/±0.75%t | |||||
| Type T | GB/T2903 T | 300 | 350 | I | -40~350 | ±0.5°C/±0.4%t |
| II | ±1°C/±0.75%t | |||||
| III | -200~40 | ±1°C/±1.5%t | ||||
Tankii's thermocouple products list includes the following:
- Thermocouple wire - round and flat
- Thermocouple strip
- Thermocouple extension leads/extension cables
- Thermocouple compensatingcables
- Bunched wire (Stranded wire)
- Thermocouple protection tubes
- Thermocouple connectors & plug
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings industry
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
