Cold Rolled Furnace Heating Element Bright Ni80 Nickel Chromium Alloy
Ni80 Nickel Alloy for High Temperature Resistance Material Auto Parts Resistor Spring
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Mechanical Properties of Nichrome 80 Flat Heating Rod
| Max Continuous Service Temperature: | 1200ºC |
| Resisivity 20ºC: | 1.09 ohm mm2/m |
| Density: | 8.4 g/cm3 |
| Thermal Conductivity: | 60.3 KJ/m·h·ºC |
| Coefficient of Thermal Expansion: | 18 α×10-6/ºC |
| Melting Point: | 1400ºC |
| Elongation: | Min 20% |
| Micrographic Structure: | Austenite |
| Magnetic Property: | nonmagnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.026 | 1.018 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | 1.025 | - |
Style of supply
| Alloys Name | Type | Dimension | ||
| Ni80Cr20W | Wire | D=0.03mm~8mm | ||
| Ni80Cr20R | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| Ni80Cr20S | Strip | W=8~250mm | T=0.1~3.0 | |
| Ni80Cr20F | Foil | W=6~120mm | T=0.003~0.1 | |
| Ni80Cr20B | Bar | Dia=8~100mm | L=50~1000 | |
Product Description
1. ODM&OEM service are all welcomed
2. Practicable Software: Solidworks,Pro/Engineer,Auto CAD,PDF,JPG
3. Small orders accept
4. Reasonable and competitive price according to your drawings
Packing & Delivery
Packing Details : Inner plastic bag,outside carton box,last is the pallet,all are based on the customers' requirments
Delivery Details : 10-30 days after you confirm the samples
Payment terms: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us.

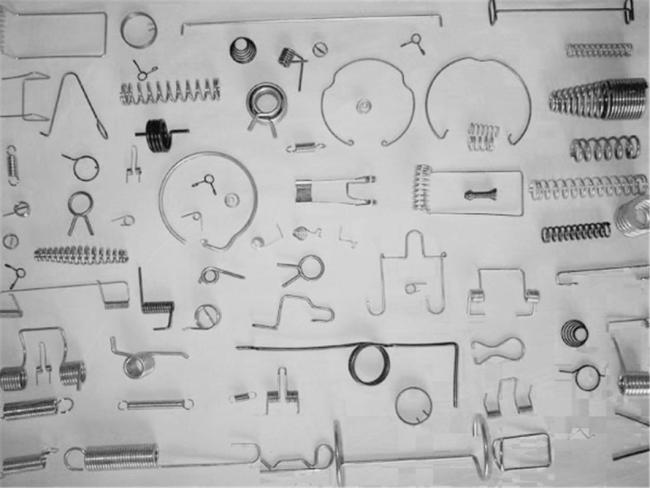

Applications & Products Show
