Ni60Cr15 High Resistance Bright Nicr Alloy Wire For Power Resistor Iso9001 Approval
Ni60Cr15 nichrome alloy wire bright wire iso 9001 for power resistor high resistance

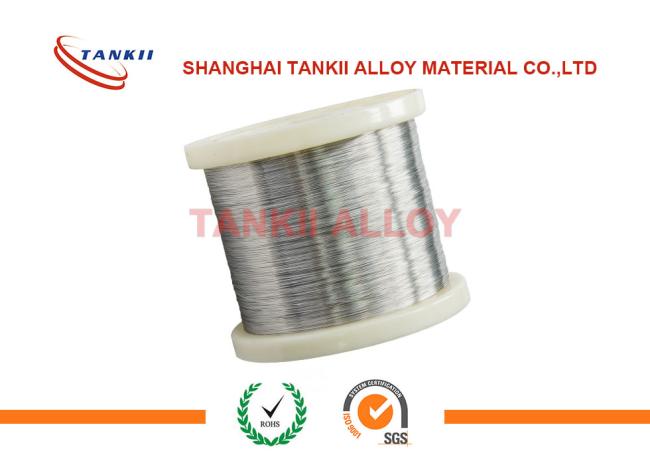

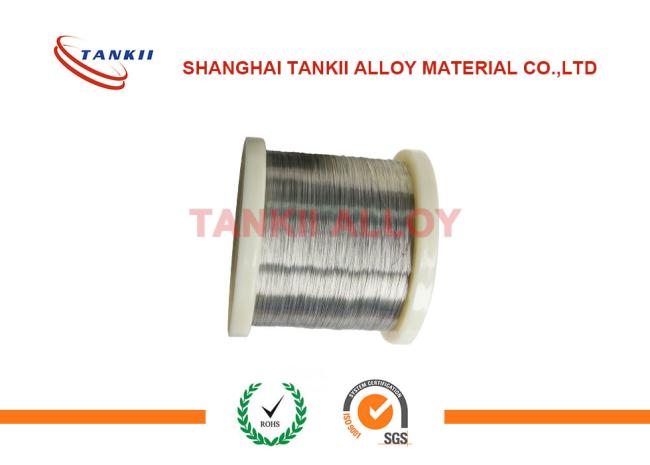

Product: Nickel Chromium Wire
Grade: NiCr 60/15
Chemical Composition: Nickel 60%, Chrome 15%, Iron balance.
Electrical Resistivity: 1.12 ohm mm2/m
Max contineous working temperature: 1150 C
Temper: Annealed
Diameter: Wire 0.02mm-1.0mm packing in spool
Rod, Bar 1mm-30mm
Producer: Shanghai Tankii Alloy Material Co., Ltd.
NiCr 60/16 is also called Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II, Electroloy, Nichrome, Alloy C, Nikrothal 6, MWS-675, Stablohm 675, NCHW2
If there is any question, pls be free to contact with us.
Chemical Composition and Properties
| Properties/Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition(%) | Ni | Bal. | Bal. | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Bal. | Bal. | Bal. | |
| Max Working Temperature(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μ Ω · m) |
1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density(g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity (KJ/m· h· ºC) |
60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α × 10-6/ºC) | 18 | 17 | 17 | 19 | 19 | |
| Melting Point(ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | |
