K type Chromel AlumelThermocouple Alloys Strip 1.0*30mm For Thermocouple Insert
Thermocouple Alloy Strip 1.0*30mm K type Chromel Alumel Used For Thermocouple Insert
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
Thermocouple alloys have been engineered for use between the point of sensor and the cold junction compensation (cjc) where the signal is received and measured.
Thermocouple strips are available in either round wire or flat ribbons, produced to customer specification.
Our products conform to the standards of IEC584 -1and IEC-2.
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
| Tankii Product | Thickness Range | Width Range | Specification | Available Grades |
| Thermocouple Strip |
From 0.05mm(flat wire) From 0.1mm (strip) |
up to 200mm |
As per ASTM E230 As per IEC 584-3 |
Type K Type T Type N |
Application in Themrocouple connector:

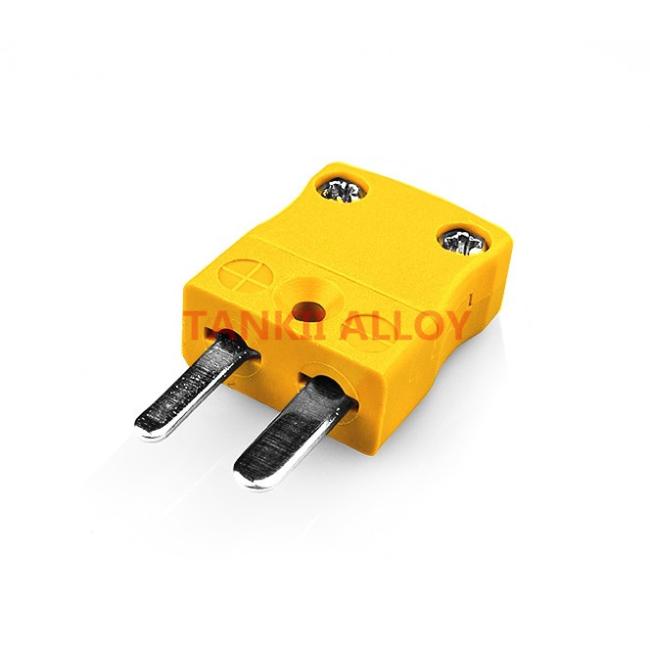

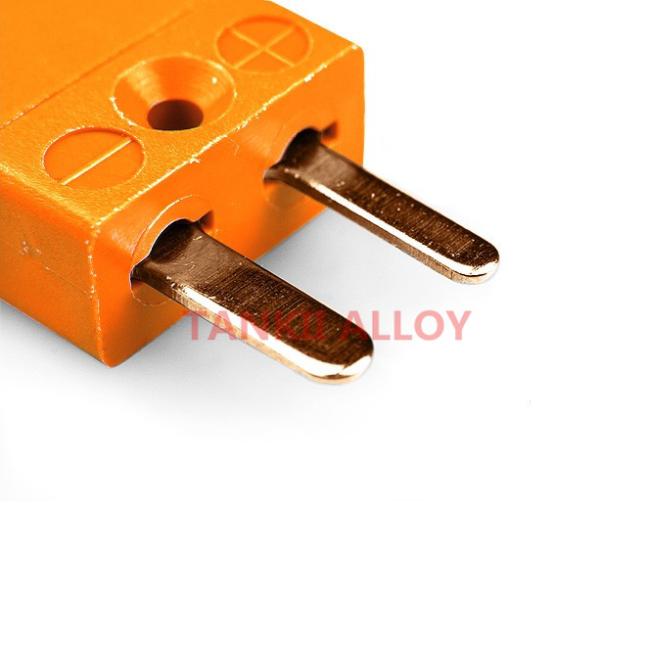

Flat pin

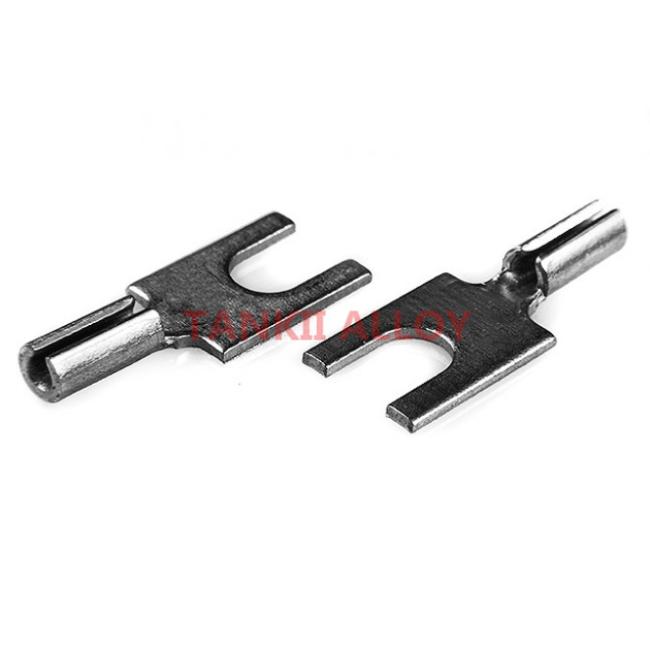

Usage as Thermocouple Spade
