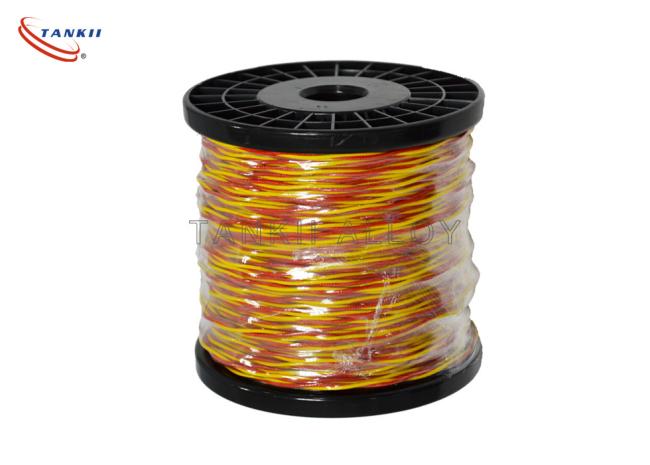

Type K/J/T/S/B/R Thermocouple Cable Wire PVC / Fiberglass Insulated Cable
Type K/J/T/S/B/R Thermocouple Cable Wire PVC/ Fiberglass Insulated Cable
Description
Name: Type K/J/E/N/T/R/S/B fiberglass/silicone/PVC thermocouple compensation extension cable wire
Model: Type K/J/E/N/T/R/S/B
Size: 26~4AWG
Structure:
Conductor: Positive leg and negative leg depends on thermocouple type.
Insulation: PVC, Silicone, Teflon, fiberglass insulated.
Braiding: fiberglass braiding.
Sheath: PVC, Silicone, Teflon, fiberglass braided.
Shield: Stainless steel or tinned copper wire.
Color: Can be customized.
Application temperature range: -40°C~+1100°C
Feature
Rated Voltage:300V
Rated temperature: -60℃~+350℃
Temperature of insulation materials:
| Insulation materials | Temperature of insulation materials |
| PVC | 0 ~ 80 °C |
| PTFE | 0 ~ 250 °C |
| Glass fiber | 0 ~ 600 °C |
| Quartz yarn | 0 ~ 1000 °C |
| Ceramic fiber | 0 ~ 1200 °C |
| Compensation wire code | Thermocouple type | Thermocouple index | Alloy material of wine | Insulation color | ||
| Anode | Cathode | Anode | Cathode | |||
| SC | PtRh10-Pt | S | SPC(Cu) | SNC(Cu-Ni) | Red | Green |
| RC | PtRh13-Pt | R | RPC(Cu) | RNC(Cu-Ni) | Red | Green |
| KCA | Nichrome-NiSi | K | KPCA(Fe) | KNCA(Cu-Ni) | Red | Blue |
| KCB | KNCB(Cu) | KNCB(Cu-Ni) | Red | Blue | ||
| KX | KPX(NiCr) | KNX(NiSi) | Red | Black | ||
| NC | NiCrSi-NiSi | N | NPC(Fe) | NNC(Cu-Ni) | Red | Grey |
| NX | NPX(NiCrSi) | NNX(NiSi) | Red | Grey | ||
| EX | NiCr-CuNi | E | EPX(NiCr) | ENX(Cu-Ni) | Red | Brown |
| JX | Fe-CuNi | J | JPX(Fe) | JNX(Cu-Ni) | Red | Purple |
| TX | Cu-CuNi | T | TPX(Cu) | TNX(Cu-Ni) | Red | White |
