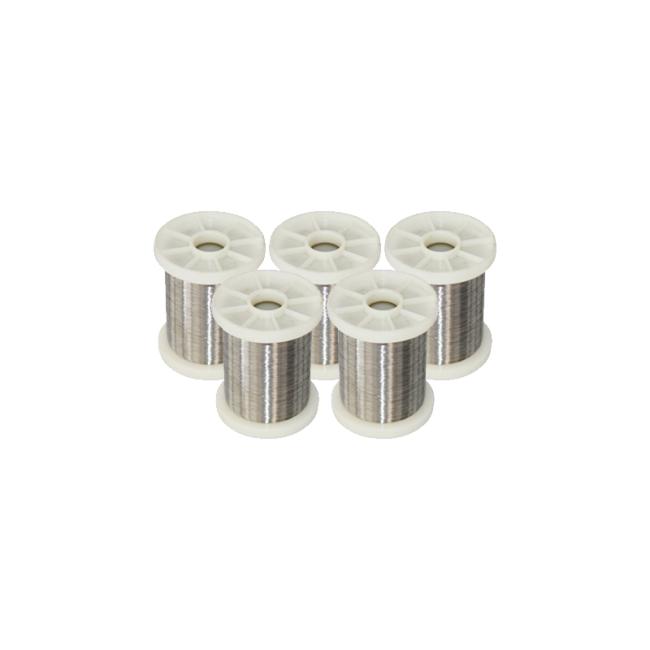

Enameled Tin Copper Nickel Alloy Wire / Silver Plated Copper Alloy Ribbon Flat Wire

Price Negotiable

Price: negotiable

MOQ: Negotiable

Delivery Time: 7-12 work days

Brand: TANKII

Product Description

Enameled Tin / Nikcel / Silver Plated Copper Alloy Ribbon/ Flat Wire for cable

Silver Plated Copper Alloy Wire

Product standard: refer to JB / T 3135-2011, ASTM B289-99 or according to customer requirements

Item	Diameter(mm)
	0.016	0.02	0.025	0.03	0.04	0.05
Tolerance(mm)	±0.001	±0.001	±0.002	±0.002	±0.002	±0.002
Conductivity(%)	≧70
Elongation(%)	≧6				≧10
Tensile Strength(MPa)	/
Coating Thickness(um)	≧0.3
Appearance	No scratches, oil stains, exposed copper, oxidation, etc.
Packing	3 inch, 5 inch, etc.
Remark	According to customers’ requirements

Soft Wire

Silver Plated Copper Alloy Wire-Hard Wire

Item	Diameter(mm)
	0.016	0.02	0.025	0.03	0.04	0.05
Tolerance(mm)	±0.001	±0.001	±0.002	±0.002	±0.002	±0.002
Conductivity(%)	≧70
Elongation(%)	≤4
Tensile Strength(MPa)	≧700
Coating Thickness(um)	≧0.2
Appearance	No scratches, oil stains, exposed copper, oxidation, etc.
Packing	3 inch, 5 inch, etc.
Remark	According to customers’ requirements

Silver Plated Copper Alloy Stranded Wire

Item	Diameter(mm)
	7/0.016	7/0.02	7/0.025	7/0.03	7/0.04	7/0.05
Tolerance(mm)	±0.001	±0.001	±0.002	±0.002	±0.002	±0.002
Conductivity(Ωmm2/m)	≧70
Strand	7
Direction of Twist	S(right)
Elongation(%)	≤4(Hard)
	≧5(Soft)
Tensile Strength(MPa)	≧700(Hard)
	/(Soft)
Coating Thickness(um)	≧0.2
Appearance	No scratches, oil stains, exposed copper, oxidation, etc.
Packing	Type 200
Remark	According to customers’ requirements
