Cr20Ni80 0.5mm Insulation Nichrome80 Heat Resistant Wire

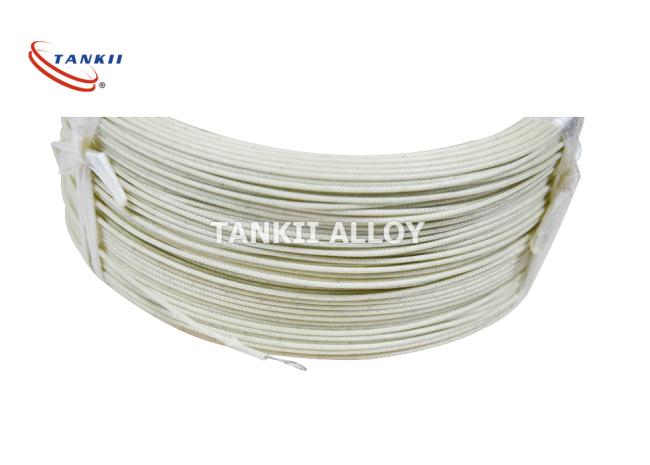

White Color Fiberglass Insulated Nichrome80 With Single Core Used For Heating
Cr20Ni80 is an ideal material, it has good ductility,workability and weldability under high temperature and seismic strength.
Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil-forming ability.
NiCr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.
Product size:
Flat strip thickness0.03—5mm,flat strip width0.2—500mm.
White Color Fiberglass Insulated Nichrome80 With Single Core Used For Heating

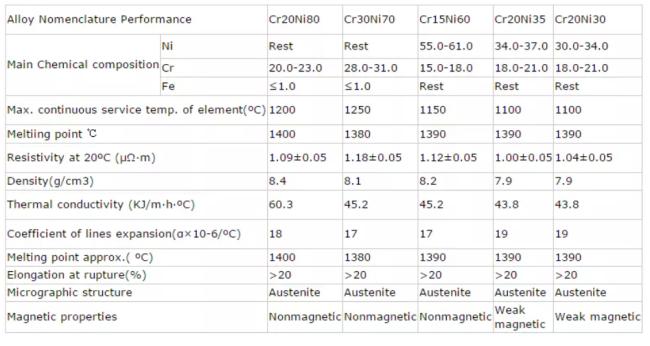

Ni80Cr20
Chemical Content, %
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Mechanical Properties
|
Max Continuous Service: Resisivity( 20℃)/Ω·m:
Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
1200℃ 1.09 +/-0.05 (Dia: <0.5mm) 1.13+/-0.05 (Dia: 0.50-3.00 mm) 1.14+/-0.05 (Dia: >3.0mm)
8.4 g/cm3 60.3 KJ/m·h·℃ 18.0 α×10-6/℃ 1400 ℃ Min 20% Austenite nonmagnetic |

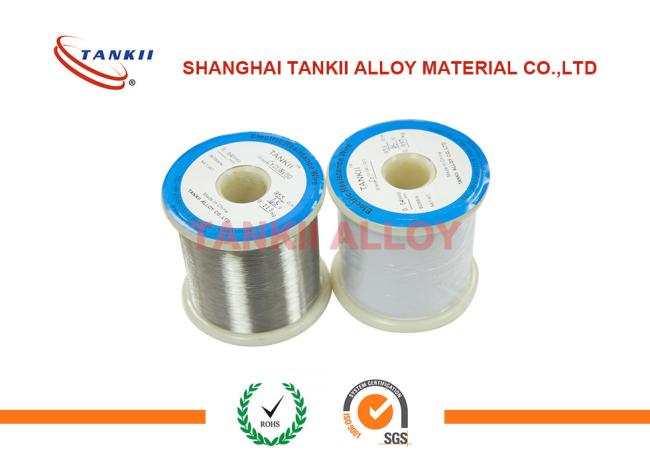

Our Nichrome alloy are in the form of wire, ribbon, strip, coil.
- Round wire
- Ribbon (flat wire)
- Strip / foil
- Stranded wire
- Sheet / plate
Delivery conditions are:
- Bright annealed
- Oxidized
- Pickled
- Enameled
Nichrome products sizes are:
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.02*5.0mm-5.0*250mm
Bar: 10-100mm
NiCr 80:20 – Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.
NiCr 70:30 – Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.
NiCr 60:15 – Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.
NiCr 40:20 – Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.
NiCr 30:20/ NiCr 20:25 – Industrial furnaces (upto 1050°C), heating elements of cooking equipment.

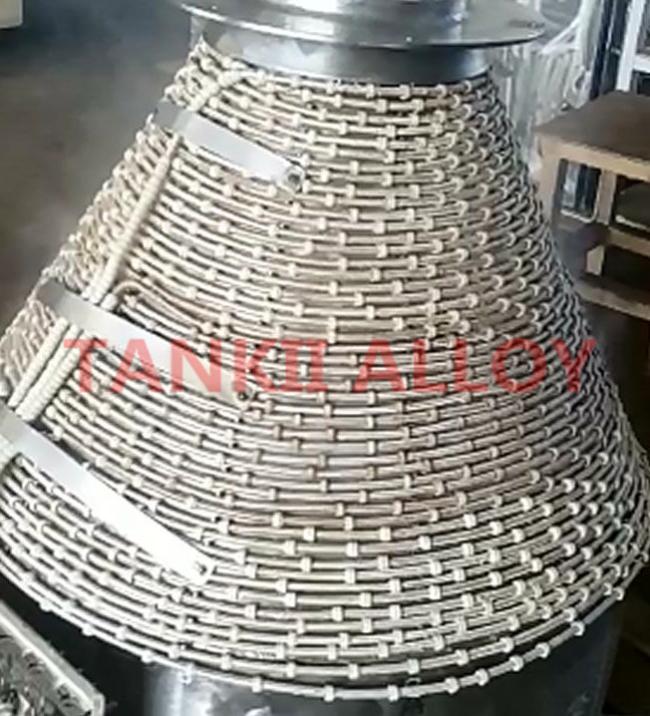

Application:
2. Neutral Grounding Resistor
3. Resistor Box
4. Hot Cutting Wire
5. Industrial Furnace Ovens
6. Industry Heater
