Bright Annealed Polished Ni80Cr20 Nickel Chromium Wire
nicr 8020 Ni80Cr20 NiCr8020 electric resistance nicrome alloy wire Smooth Bright Surface Round Annealed Bar
Nichrome wire is an ideal material, it has good ductility,workability and weldability under high temperature and seismic strength.
Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil-forming ability.
Size dimension range:

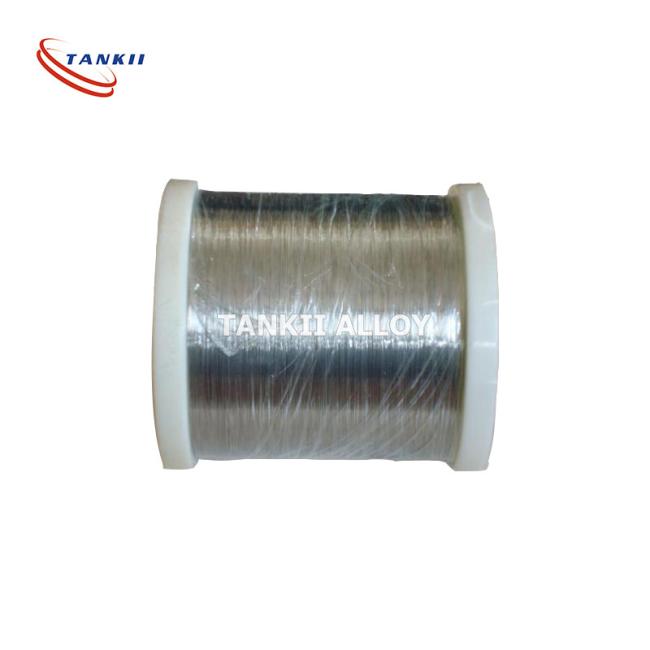

Wire: 0.01-10mm

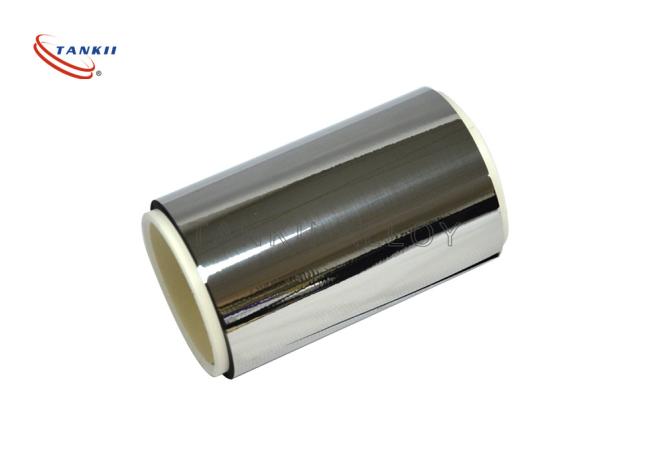

Ribbon: 0.05*0.2-2.0*6.0mm

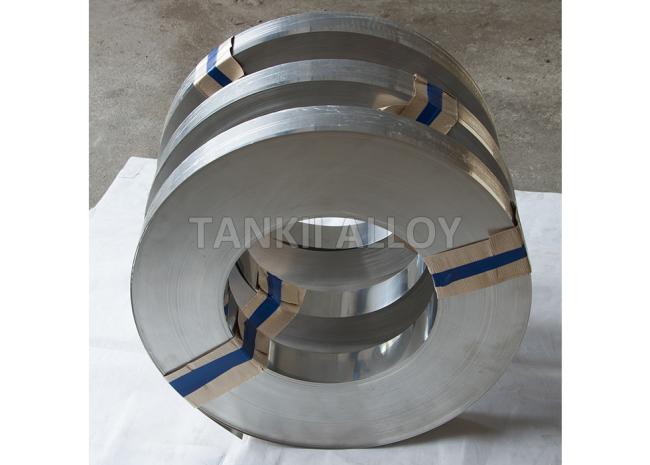

Strip: 0.05*5.0-5.0*250mm
NiCr series: Cr10Ni90,Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30
| Alloy Nomenclature Performance | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Meltiing point ℃ | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Resistivity at 20ºC (μΩ·m) | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Density(g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal conductivity (KJ/m·h·ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/ºC) | 18 | 17 | 17 | 19 | 19 | |
| Melting point approx.( ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture(%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Magnetic properties | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
Cr15Ni60,Cr20Ni80,Cr10Ni90,Cr30Ni70 heating resistance wire
Main Advantage and Application
1. Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
2.Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
Size
wires:0.018-10mm
Ribbons:0.05*0.2-2.0*6.0mm
Strips:0.5*5.0-5.0*250mm
Bars:D10-100mm
Service
1.fine after-sale services
2.small order accepted
3.samples available
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Monel Alloy: Monel 400,K500.
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
