Product Description

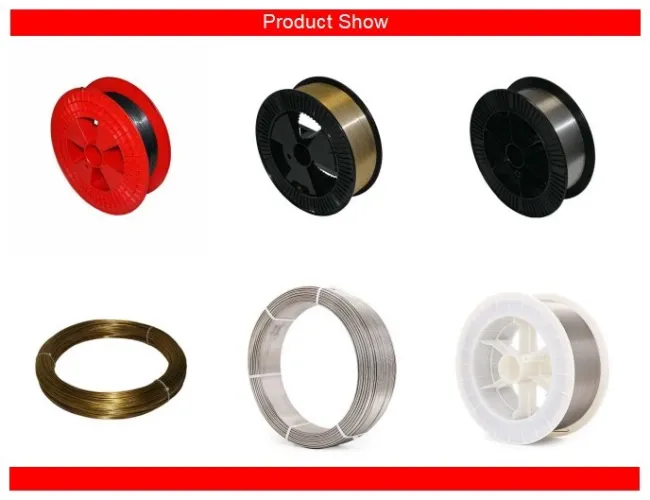

1.6mm Monel 400 Tafa70t Thermal Spray Wires
Description
Monel 400 thermal spray wire with a high strength composition of nickel and cooper alloy. It is specifically designed for spraying in arc spray and flame spray systems. It can produces well-bonded coatings with excellent machineability. It is highly resistant to seawater, atmospheric corrosion,various acids and alkaline environments. It can equivalent to: Tafa 70T, 71E Monel 60.
Description
Monel 400 thermal spray wire with a high strength composition of nickel and cooper alloy. It is specifically designed for spraying in arc spray and flame spray systems. It can produces well-bonded coatings with excellent machineability. It is highly resistant to seawater, atmospheric corrosion,various acids and alkaline environments. It can equivalent to: Tafa 70T, 71E Monel 60.
Applications
Corrosion protection for chemical and desalination plants.
Resist saltwater corrosion for compoents such as steam valves, pumps, seal rings and plungers.
Protects immersed machine elements from saltwater corrosion, particularly for applications where a surface harder than typical galvanic coatings is required.
Product Details
Chemical composition:
| Grade | Chemical composition(%) | ||||||
| Ni | Fe | Cu | C | Mn | Si | Ti | |
| Monel 400 | Min 62 | Max 2.5 | 28-32 | Max 0.15 | 2-4 | Max 1.2 | 1.5~3.0 |
Physical Properties
| Grade | Density | Melting Point |
| Monel 400 | 8.83g/cm3 | 1310°C |
Typical Characteristics:
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
| HRB 84 | 4310 psi | 10 lbs /hr/100A | 70% | Good |
Sizes & Packaging:
| Diameter | Packaging | Wire Weight |
| 1/16" (1.6mm) | MIG (D 300) | 15kg((33 lb)/spool |
Note that special sizes, or packing requirements are available on all requests.
Specifications:
EN ISO 18274 Ni 4060 ( NiCu30Mn3Ti), EN ISO 14919
