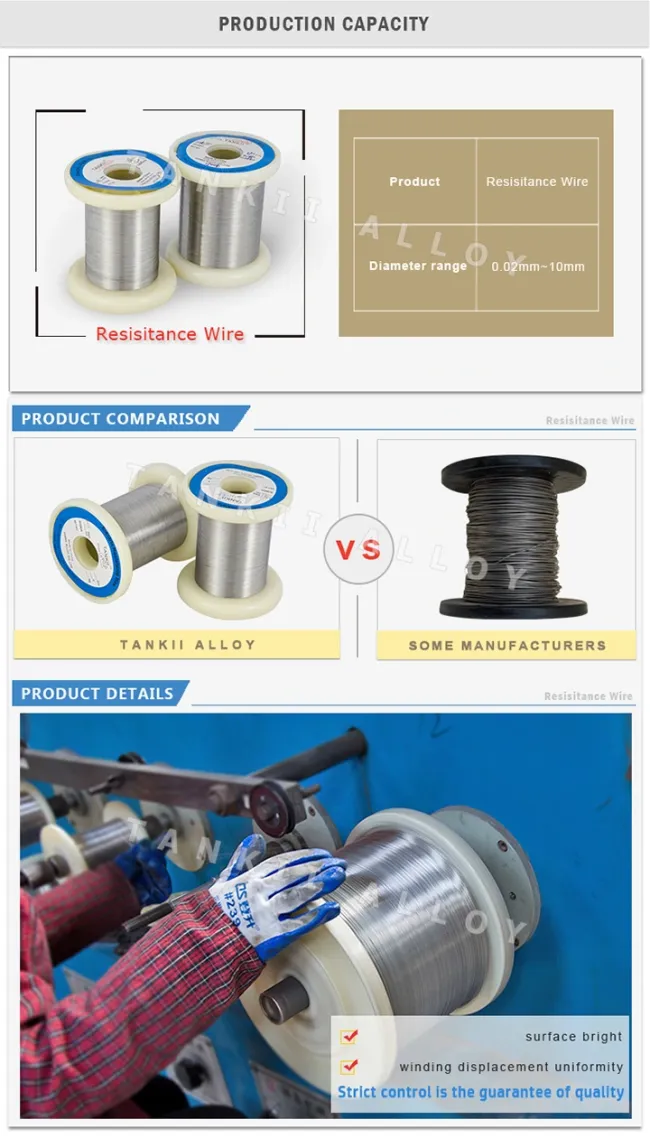

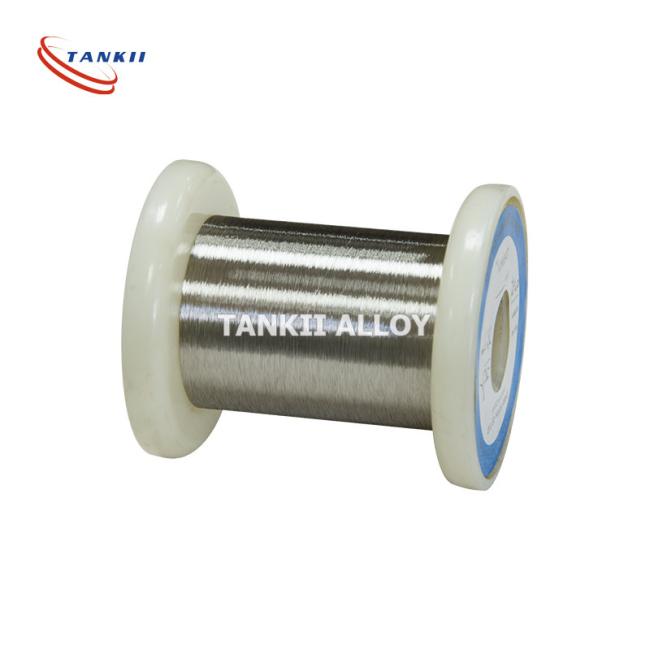

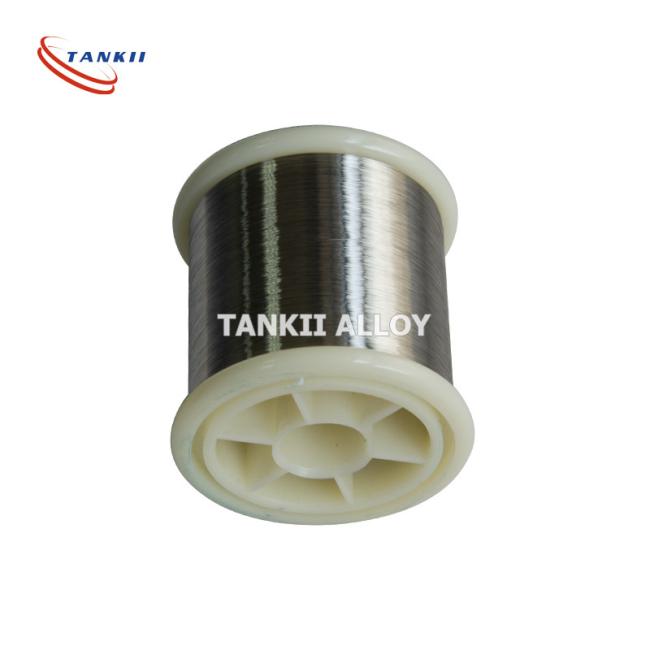

Nichrome Stablohm 675 Ni60Cr15 Electric Resistance Wire
Ni60Cr15 is an austenitic nickel-chromium alloy suitable for temperature applications up to 1150°C. This alloy is characterized by high resistivity, good oxidation resistance, very good form stability, good ductility after use and excellent weldability. Ni60Cr15 is used for electric heating elements in domestic and industrial appliances. Typical applications: potentiometers, heavy-duty resistors, tubular heaters, electric furnaces, grills, hot plates, toasters, storage heaters, fan heaters, hand dryers, etc.
Grade:
Ni60Cr15 ,also called Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Nikrothal 6, MWS-675, Stablohm 675,NiCrC.
Chemical Content(%)
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max 0.08 |
Max 0.02 | Max 0.015 | Max0.6 | 0.75-1.6 | 15-18 | 55-61 | Max0.5 | Bal. | - |
Mechanical Properties
| Max Continuous Service Temperature | 1150°C |
| Resistivity 20°C | 1.12 ohm mm2/m |
| Density | 8.2 g/cm3 |
| Thermal Conductivity | 45.2 KJ/m.h.°C |
| Coefficient of Thermal Expansion | 17*10-6(20°C~1000°C) |
| Melting Point | 1390°C |
| Elongation | MIn 20% |
| Magnetic Property | nonmagnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
Regular Size:
We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.
Bright and white wire--0.025mm~3mm
Pickling wire:1.8mm~10mm
Oxidized wire:0.6mm~10mm
Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm
