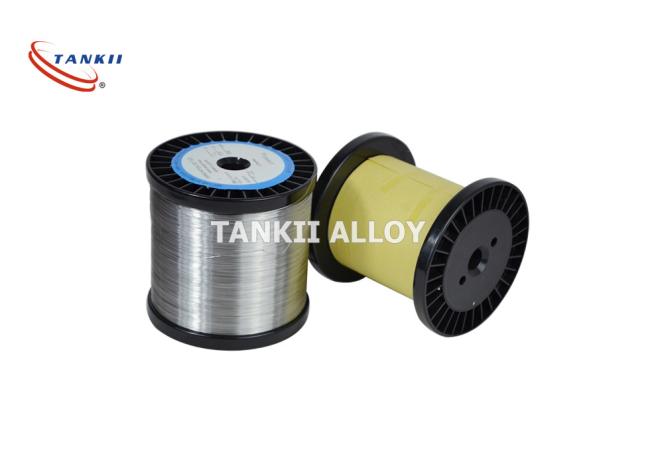

Nikrothal 8 MWS-650 Nicr80/20 Nicr Heating Wire Bright Annealing
Nikrothal 8 MWS-650 nicr80/20 heating wire
1.About Nichrome wire
Nichrome alloy includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.
Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20, Cr25Ni20, pure nickel Ni200 and Ni201
FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo2, 0Cr21Al6Nb, 0Cr21Al6.
Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni
Our Nichrome alloy are in the form of wire, coil, ribbon, strip, foil
size:Wire: 0.018mm-10mm Ribbon: 0.05*0.2mm-2.0*6.0mm Strip: 0.5*5.0mm-5.0*250mm Bar: 10-100mm
2.Grades and properties
1) The chemical composition:
| Brand | Chemical composition | Si | Cr | Ni | Al | Fe | |||
| C | P | S | Mn | ||||||
| Not more than | |||||||||
| Cr20Ni80 | 0.08 | 0.020 | 0.015 | 0.60 | 0.75-1.60 | 20.0-23.0 | remain | ≤0.50 | ≤1.0 |
| Cr15Ni60 | 0.08 | 0.020 | 0.015 | 0.60 | 0.75-1.60 | 15.0-18.0 | 55.0-61.0 | ≤0.50 | remain |
| Cr20Ni35 | 0.08 | 0.020 | 0.015 | 1.00 | 1.00-3.00 | 18.0-21.0 | 34.0-37.0 | - | remain |
| Cr20Ni30 | 0.08 | 0.020 | 0.015 | 1.00 | 1.00-2.00 | 18.0-21.0 | 30.0-34.0 | - | remain |
2) Size and Tolerances
Diameter |
0.030-0.50 | >0.050-0.100 | >0.100-0.300 | >0.300-0.500 | >0.50-1.00 | >1.00-3.00 | EXECUTIVE STRANDARD |
| Tolerance | ±0.005 | ±0.007 | ±0.010 | ±0.015 | ±0.02 | ±0.03 | GB/T1234-1995 |
Properties of Products
When the product is at "M" status, should be followed the standard GB/T1234-1995
Resistivity:
| Brand | Cr20Ni80 | Cr20Ni60 | Cr20Ni35 | Cr20Ni30 | ||
| Diameter mm | <0.50 | 0.50-3.0 | <0.50 | ≥0.50 | <0.50 | ≥0.50 |
| resistivity(20°C)uΩ·m | 1.09±0.05 | 1.13±0.05 | 1.12±0.05 | 1.15±0.05 | 1.04±0.05 | 1.06±0.05 |
Main Advantage and Application
1. Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
2.Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
