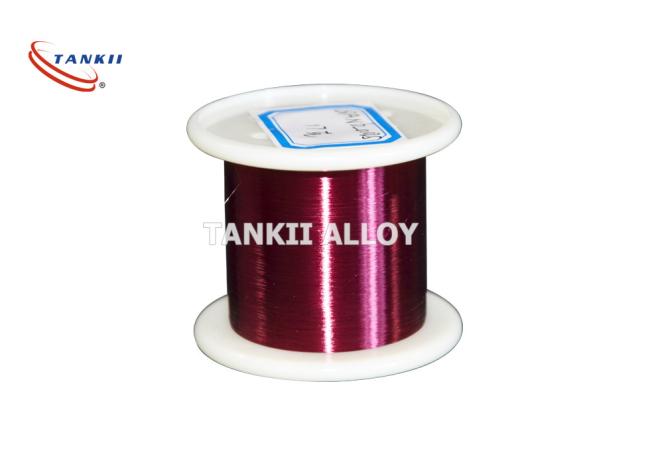

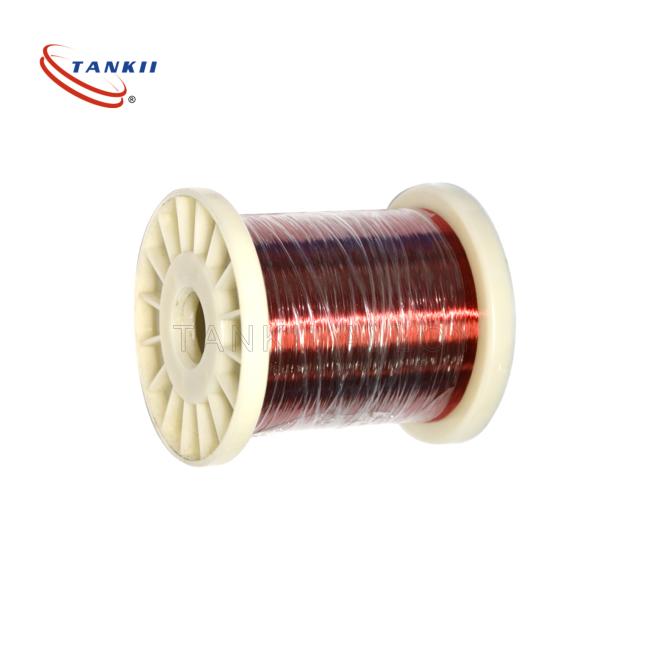

Rohs Certified Enameled Coating Ni200 Pure Nickel Wire 0.025mm Red Color

Ni200 99.6% Pure Nickel Wire 0.025mm With Red Color Enameled Coating

Product Description:

The enameled wire is a main type of winding wire, which consists of two parts: conductor and insulating layer. After annealing and softening, the bare wire is painted and baked for many times. However, it is not easy to produce products that meet the requirements of standards and customers. It is affected by the quality of raw materials, process parameters, production equipment, environment and other factors. Therefore, the quality characteristics of various paint coating lines are different, but they all have four properties: mechanical, chemical, electrical and thermal.

Nickel has high chemical stability and good corrosion resistance in many media.

Its standard electrode position is -0.25V, which is positive than iron and negative than copper.

Nickel exhibits good corrosion resistance in the absence of dissolved oxygen in dilute non-oxidized properties (e.g., HCU, H2SO4), especially in neutral and alkaline solutions.This is because nickel has the ability to passivate, forming a dense protective film on the surface, which prevents nickel from further oxidation.
Main application fields:
Chemical and chemical engineering, generator anti-wet corrosion components (water inlet heater and steam pipe), pollution control equipment (waste gas sulfur removal equipment), etc.

Ni200 99.6% Pure Nickel Wire 0.025mm With Red Color Enameled Coating

Enameled wire conductor:

1. Copper-nickel alloy wire: Constantan Wire,CuNi1~CuNi44

2. Ni-Cr Alloy wire: NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.

3. Fe-Cr-Al Alloy wire: Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,
Cr21Al6Nb,Cr27Al7Mo2,

4. Cu-Ni-Mn Alloy wire: CuMn12Ni2,CuMn12Ni4,Manganin

5. Silver: Purity 99.9%

Type of insulation
