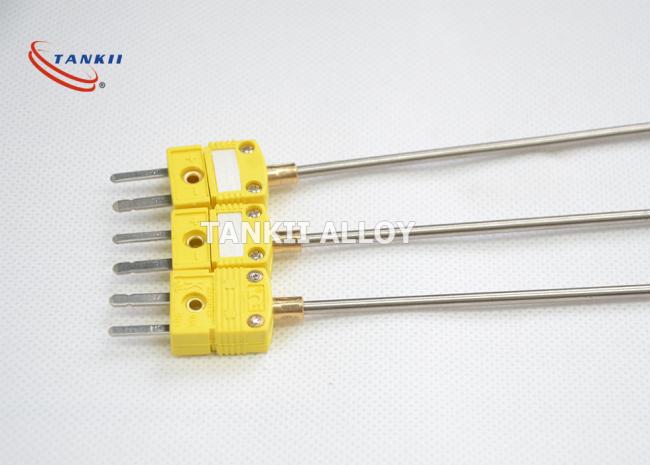

3M MgO Mineral Insulated Metal Sheathed Cable With Yellow Connector
MgO Mineral Insulated MI Cable, Metal Sheath Thermocouple Wire
- Stainless Steel Sheath 304, 310, 316, 321 SS
- Inconel 600 Sheathing
- J, K, N, T, E Wire Calibration Available
- M.I. Cable with MgO
- High Purity and Standard MgO
- Inch and Metric Diameters
- .020 up to .50 Diameter
- Special Limits or Standard Grade
- Can Be Welded, Bent or Formed
- Withstands High Temperatures and Pressures
Tankii offers a wide variety of sheath materials to choose from as there is no single sheath material that is suitable for all conditions.
The most commonly stocked sheath materials are 304 SS, 316 SS and alloy 600.
These are offered in all ANSI recognized thermocouple calibrations.
As a standard, Tankii Thermocouple cable is made with high purity 94% minimum MgO insulation.
Other types and purities are available.
Temperature is measured with one or more kinds of temperature sensors. There are several available on the market today:
1. Thermocouple sensors
2. RTD sensors
3. Thermistor sensors
4. Infrared temperature sensors
| Thermocouple Code | Comp. Type | Comp. Wire Name | Positive | Negative | ||
| Name | Code | Name | Code | |||
| S | SC | copper-constantan 0.6 | copper | SPC | constantan 0.6 | SNC |
| R | RC | copper-constantan 0.6 | copper | RPC | constantan 0.6 | RNC |
| K | KCA | Iron-constantan22 | Iron | KPCA | constantan22 | KNCA |
| K | KCB | copper-constantan 40 | copper | KPCB | constantan 40 | KNCB |
| K | KX | Chromel10-NiSi3 | Chromel10 | KPX | NiSi3 | KNX |
| N | NC | Iron-constantan 18 | Iron | NPC | constantan 18 | NNC |
| N | NX | NiCr14Si-NiSi4Mg | NiCr14Si | NPX | NiSi4Mg | NNX |
| E | EX | NiCr10-Constantan45 | NiCr10 | EPX | Constantan45 | ENX |
| J | JX | Iron-constantan 45 | Iron | JPX | constantan 45 | JNX |
| T | TX | copper-constantan 45 | copper | TPX | constantan 45 | TNX |
|
Type |
Class of Accuracy | |||||
| I | II | III | ||||
| Tolerance | Temp-℃ | Tolerance | Temp-℃ | Tolerance | Temp-℃ | |
| K | ±1.5℃ or ±0.4% t | -40~1000 | ±2.5℃ or ±0.75% t | -40~1000 | ±2.5℃ or ±1.5% t | -200~40 |
| E | -40~1000 | -40~1000 | -200~40 | |||
| N | -40~800 | -40~800 | -200~40 | |||
| J | -40~750 | -40~750 | -200~40 | |||
| T | ±0.5℃ or ±0.4% t | -40~350 | ±1.0℃ or ±0.75% t | -40~400 | ±1.0℃ or ±1.5% t | -200~40 |
| Packaging Details | Packed with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
Application: thermocouple sensors
1. Payment ways?
T/T, PAYPAL, WESTUNION.
In 12 hours since we get your payment.
MTC , ISO9001, ROHS , SGS as customers' request
Company name, Recipients, Correct Address, telephone, zip code.
For most of our products, the warranty will be 12 months.
Within 48 hours (on working days )
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
For General Orders, the shipping time will be 5 workdays.
