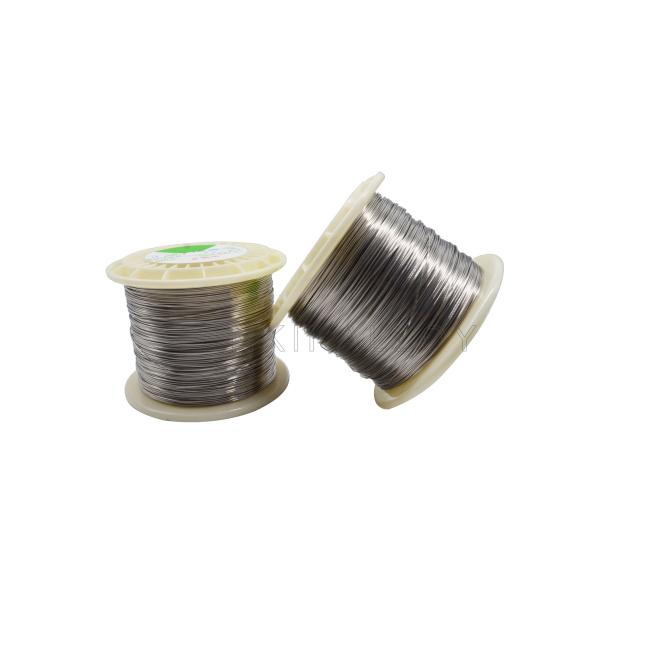

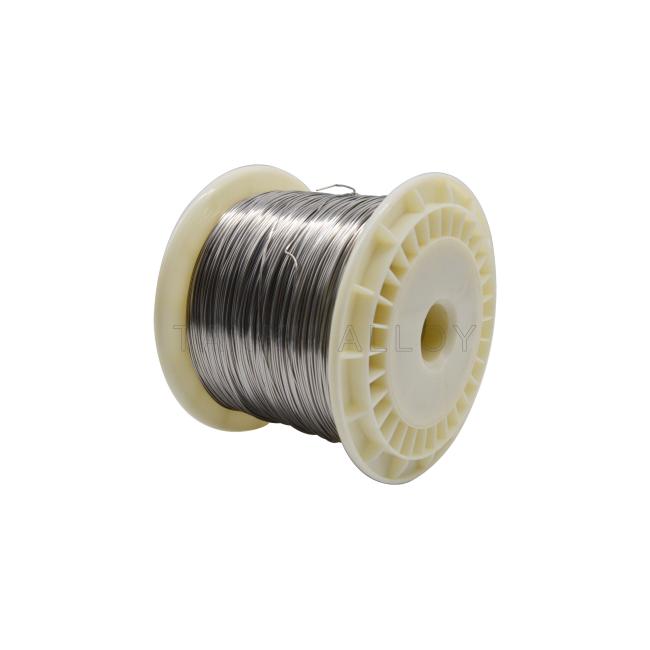

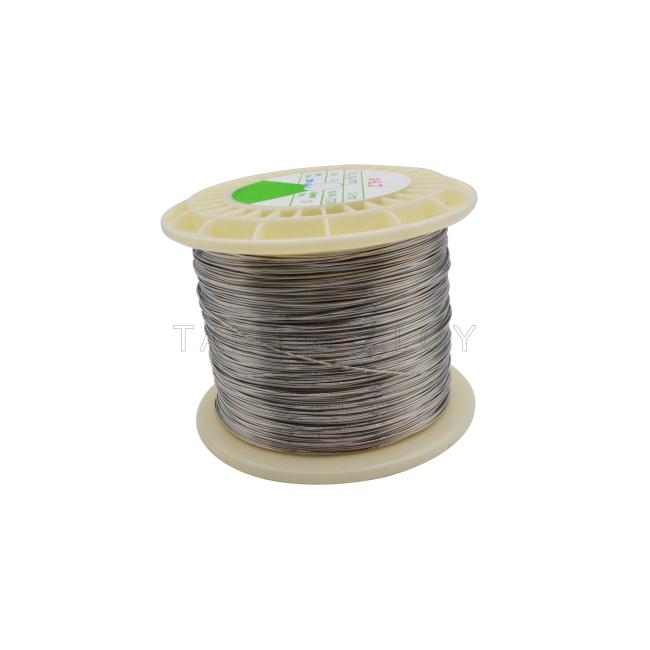

1Cr13Al4 Fecral Alloy Resistance Wire For Low Temperature Drying Oven

Price Negotiable

Price: 5-25USD/KG

MOQ: 20KG

Delivery Time: 5-10 work days

Brand: TANKII

Product Description

Fecral Resistor 1Cr13Al4 wire for Low Temperature Drying Oven

Relaed Grade: Akrothal 14, Alloy 750, Alferon 902, Alchrome 750, Resistohm125, Aluchrom W, 750 Alloy, Stablohm 750.

Our advantage:High quality,short delivery time,small MOQ.

Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.

Chemical Composition

Alloy	Cr%	Al%	Fe%	Re%
1Cr13Al4	12.0-15.0	4.0-6.0	Bal.	Adequacy

Properties

Alloy

Specific Resistance

(at 20°C)

(µΩ-m)

Hardness HB

Linear Expansion Coeff.

(T=20 – 1000°C)

x10-6

Maximum Operating Temperature of

Element (°C)

1Cr13Al4

1.25±0.08

200-260

15.4

950

Packing detail:spool,coil,wooden case(as per client's requiryment)
