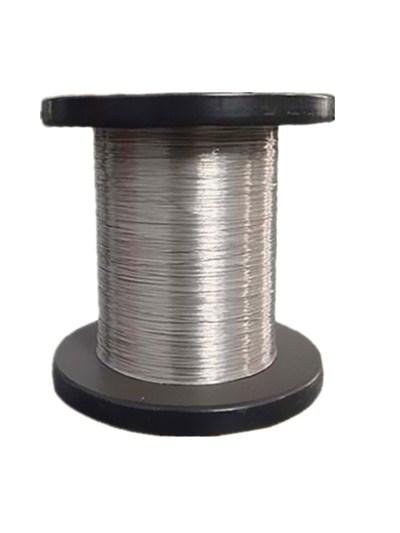

AWG32 Nicr3070 Ni70cr30 Nichrome Wire For Electric Heating Zone
The material NiCr7030 with the material is applied in the form of strips, sheets, tubes and wires for furnace construction components and heating conductors.
It is a nickel-chromium heating conductor alloy for operating temperatures of up to 1250 °C and often contains additives of rare earths for a higher resistance to oxidation, especially with frequent switching operations or broad temperature variations.
The resistance to atmospheric corrosion at 20 °C is high up to the upper operating temperature the resistance to air and other oxygen-containing gases as well as to nitrogen-containing low-oxygen gases is high as well, yet it is low to oxidizing as well as reducing gases containing sulphur.
The resistance to carbonizing is high. Application for industrial electric furnaces, enamelling furnaces, household appliances, night-current storage space-heaters.
Normal composition%
| Model NO. | NiCr7030 | Density | 8.1 g/cm3 |
| Material Shape | Strip | Melting Point | 1400 C |
| Range of Application | Resistor, Heater | OEM | YES |
| Certification | ISO9001, RoHS | Stock | Seyn |
| Brand | TANKII | Tensile Strength | 810 MPa |
| Usage | Resistance materials | Electrical Resistivity | 1.18 |
| Elongation | >20% | Trademark | TANKII |
| Hardness | 180 HV | Transport Package | Spool, Carton, Wooden Case |
| Max Working Temperature | 1250 C | Specification | 0.8mm |
| HS Code | 7506200000 | Origin | China |
