SC APC Fiber Optic Adapter SM Simplex Shutter Without Flange Green

Price Negotiable

Price: 0.04USD-2.15USD

MOQ: 100PCS

Delivery Time: 5-8 working days

Brand: YINGDA

Product Description

Fiber optic adapter SC PC SM Simplex Shutter without Flange Green

This coupler provides a solution for extending a current run of fiber optic cabling. This coupler is constructed from high-grade plastic and has been designed and engineered for durability and a long life.

Features

Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.
Fast delivery,3-8 working days.
Free sample

Specification

Item	Material	Remarks
Sleeve	Zirconia, PB
Housing	PC	Flammability UL94 V-0
Dust cap	PVC	Flammability UL94 V-0
Shutter	ABS	Flammability UL94 V-0
Metal Clip	Stainless steel
Optical performance	P Grade	S grade
Insertion Loss	≤0.1dB	≤0.2dB
Durability	1000 times	1000 times

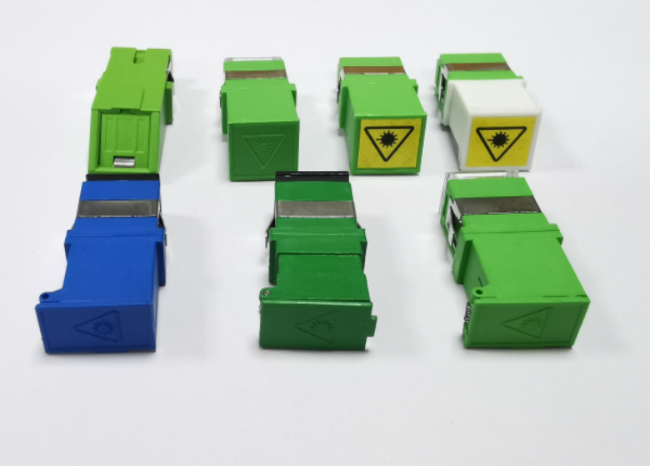

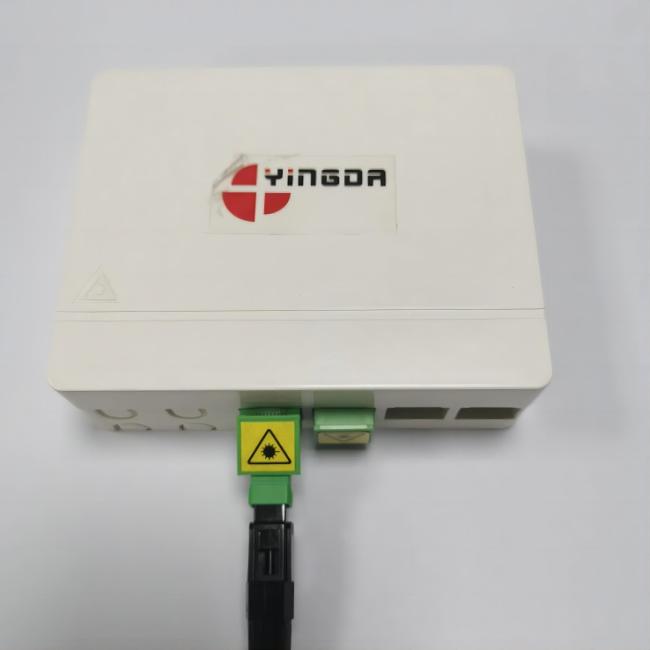

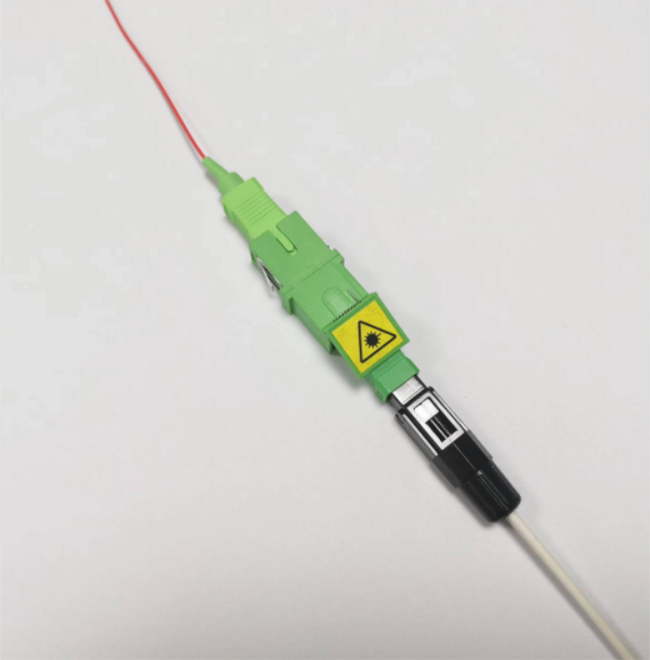

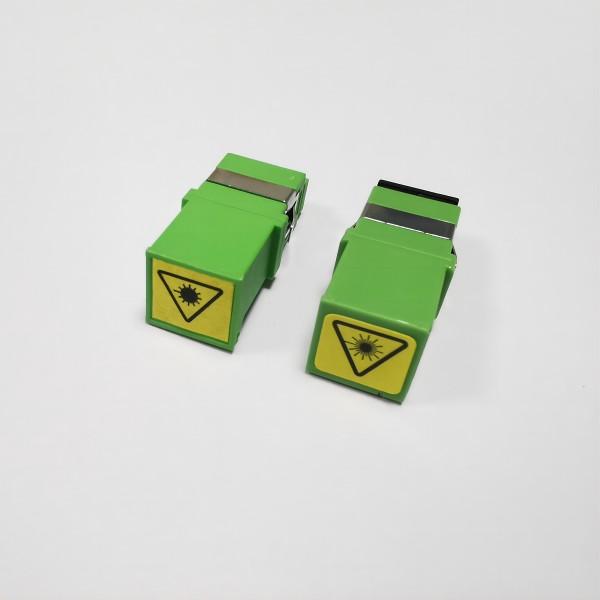

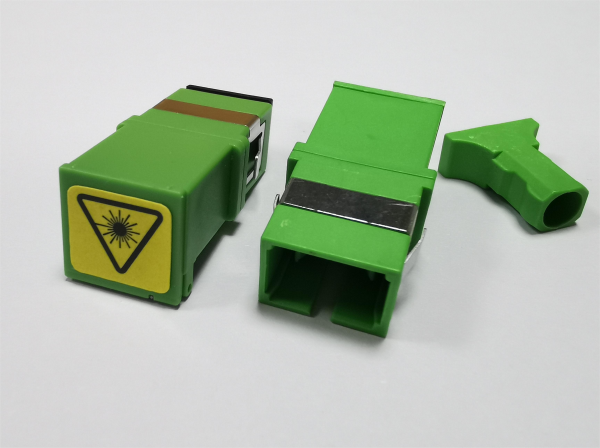

Actual picture

Environment and Mechanical Properties

Item	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40ºC to +75ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidity cycling	40ºC, 95%, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB
