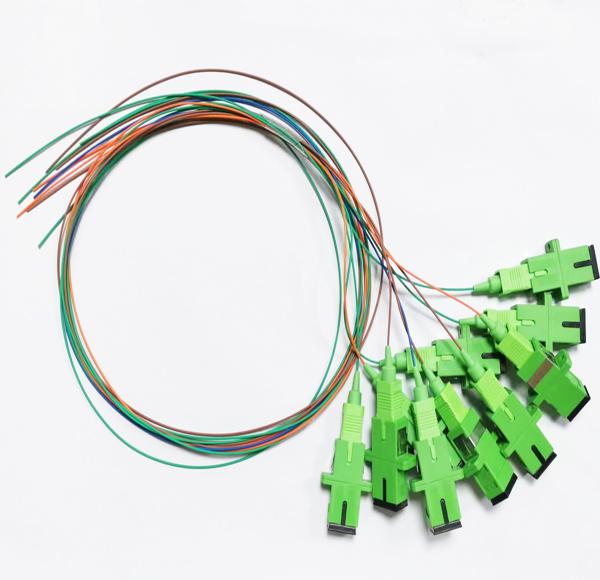

SC APC Fiber Optical Pigtails LSZH 900um SM Ceramic Ferrule For Splitter Box
Supply SC APC Fiber Optical Pigtails LSZH 900um SM Ceramic Ferrule IL<0.2dB for indoor Termination Splitter Box
Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which be cut off.
Then it connect by splice with other cable core. It is widely used in fiber optic terminal box, ODF rack ,
cabinet to connect with fiber optic media converter/transceivers(also use coupler,patch cord,etc.)
Multimode pigtail is orange, wavelength is 850nm, the transmission distance is 500m, for short distance
interconnects. SMF (single mode fiber ) is yellow, the wavelength:1310nm and 1550nm,the transmission
distance are respectively 10km and 40km.
Optical Characteristics
| Cable diameter | φ0.9mm, φ2.0mm, φ3.0mm |
| Insertion loss | ≤0.2dB |
| Return loss | PC≥40dB,UPC≥50dB,APC≥60dB |
| Interchange ability test | ≤0.2dB |
| Mating times | >1000 times |
| Repeat ability | ≤0.1dB |
| Vibration test | ≤0.1dB(10-60Hz,1.5mm Full amplitude) |
| Tensile strength: | 0~15Kg |
| temperature cycling test | ≤0.2dB (-40℃~+85℃,after 5times recycle) |
| Low temperature test | ≤0.2dB(-40℃,last 100 hours) |
| High temperature test | ≤0.2dB (+85℃,last 100 hours) |
| Tensile test | ≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception) |
| Temperature test | ≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours) |
| Fiber count | 4 core 6 core 8 core, 10 core, 12 core. |
| Can use connectors |
FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc |
12 Colors Pigtails Features

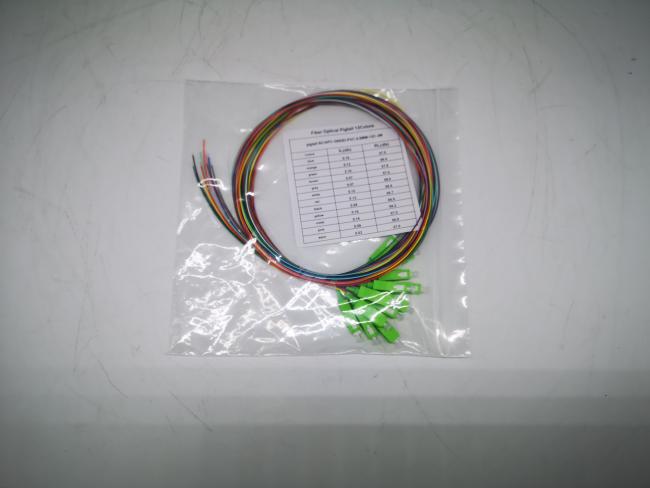

- Individual pacakge: self sealed plastic bag with air vent. Each pigtail is equipped with an English test report.
- All product will be 100% test in factory before delivery twice, and with low insertion loss, high return loss
- Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
- OEM or with customer logo on the plastic bag is acceptable.
- All use fiber optical ceramic ferrule, angel -8 degree, Concentricity 0.5 or 1, all we use is Three-Circle brand high quality ferrules.
- Pre-terminated all kinds of connectors such as SC LC ST FC E2000 MU MTRJ DIN D4 SMA MPO MTP, etc.

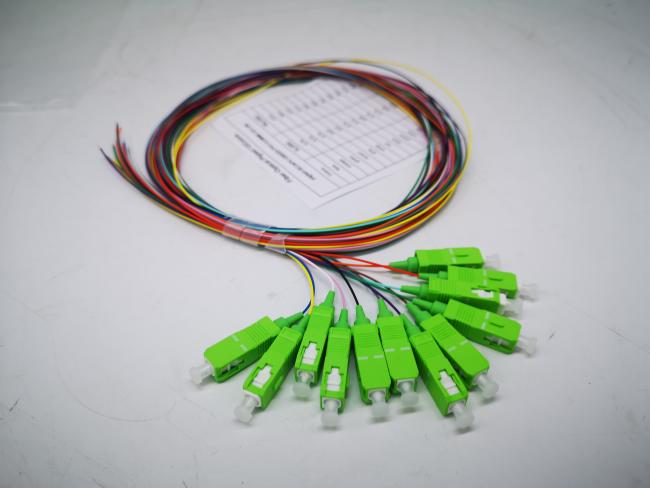

- 12 Colors: blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, light blue.
- After strip the outer jacket of the distribution cable, fan out fibers have a special tube protection from twisting off or injury, good bending properties.
- On the cable circle one side, use a plastic film to wrap the pigtails and the cable together, protect it from mess or break.
- On the other side of the circle, nylon rope is used to fix and tie tightly to prevent falling off and confusion during transportation, and it is also convenient for fixation and subsequent use.
Application
- Medical instruments
- Industry and Army use
- CATV network
- LAN network
- Fiber Access network
- Telecommunications
- Gigabit Data Network test
