24-144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 8ports IP68 For Pole Duct
Price:
Negotiable
MOQ:
1PC
Delivery Time:
12-15 days after pay
Brand:
YINGDA
Product Description
24-144 cores Heat Shrink Dome Fiber Optic Splice Closure 1 oval 8ports IP68 for Pole Duct
GJS-9501-B Fiber Optic Splice Closure (FOSC) is a dome type optical fiber cable splice closure. The cables and the
closure are sealed in a mechanical or heat shrink way with the help of compacting pressure from the plastic screws
(nuts) and the circular plastic hoop. This model is suitable for different methods of branch connection, including
branching and splicing of uncut cables, it can also be used for splitting function with adapters internal.
Dome Fiber Optic Enclosure Specification
| Model | GJS-9501-B |
| Dimension | 460*φ225mm |
| Max capacity | 144cores (single fiber), 432/576cores (ribbon) |
| Cable ports | 1oval+8round ports |
| Cable diameter | Oval: φ8-25mm; round:φ8-18mm |
| Material | Body: PP+GF, Tray: ABS |
| Seal material | Vualcanized silicone rubber |
| Tray capacity | 24cores single fiber |
| Tray qty | 6pcs |
| IP grade | IP68 |
| Net weight | 3.5-4.5kg |
144 Cores Fiber Optic Splice Closure Features
Different cable ports can be available, such 1oval+4round, 1oval+6round ,1 oval+8round in heat shrink or mechanical sealing,
good in practicality.
It applies to various ways of bifurcations including bifurcation of uncut cable.
It applies to the installation of Φ8~18 cable.
Ribbon cable is available, which can be installed with 6C or 12 C ribbon cable, corresponding max capacity is 432
core, 576 core.
Optional accessories

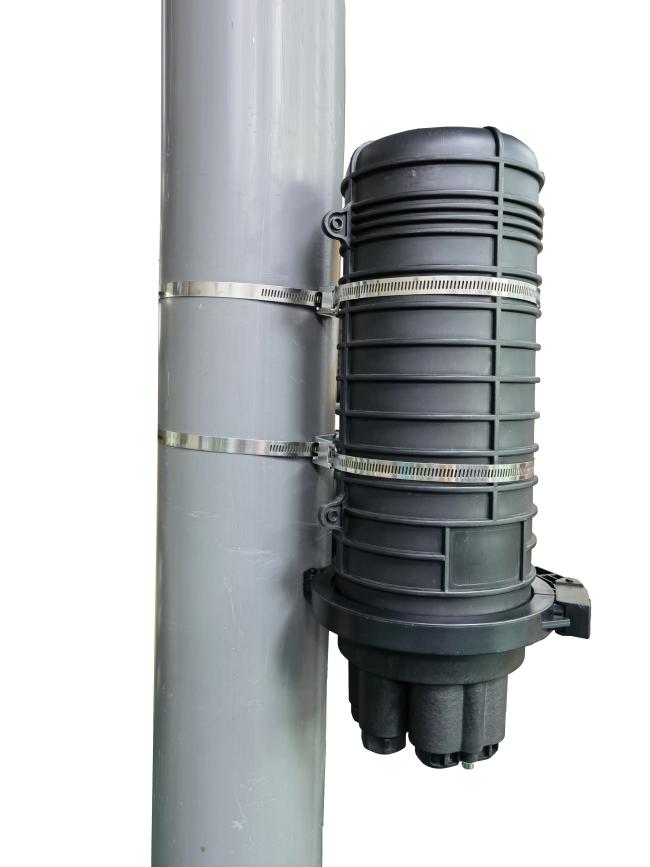

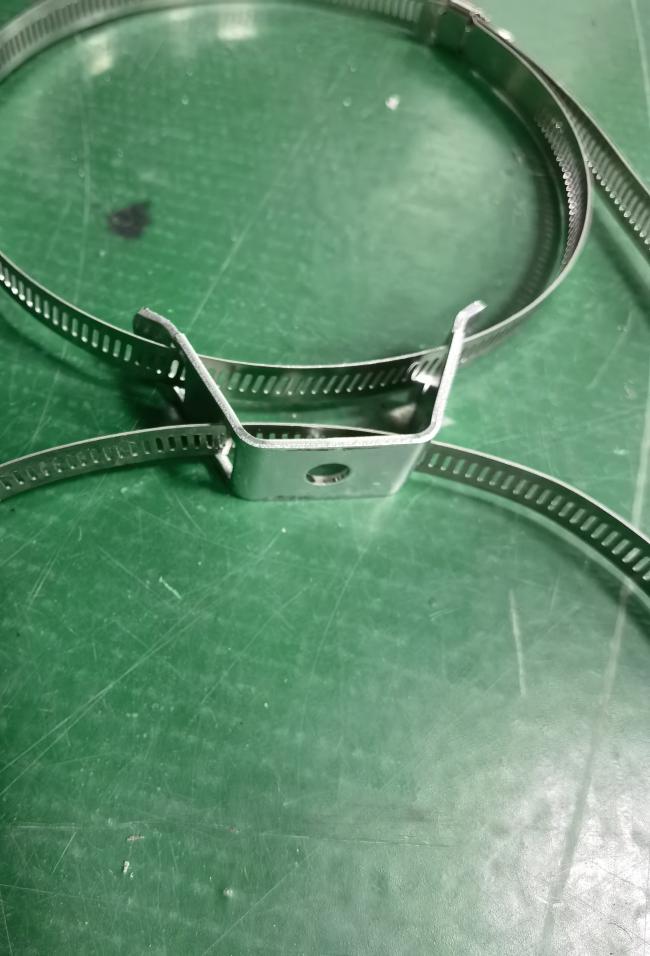

Hanging hook, Wall mounting (Duct mounting) kits, Pole Mounting kit, Grounding device, Air valve
- Wide application like Underground, Aerial mount, Vault, Pole Mount,Wall Mount, etc ,will configurate as customer request.
FOSC Fiber enclosure Order Information:
GJS-9501-XX-XX-X
GJS-9501-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)--cable port(1+4,1+6,1+8), Seal type(heat shrink or mechanical sealing

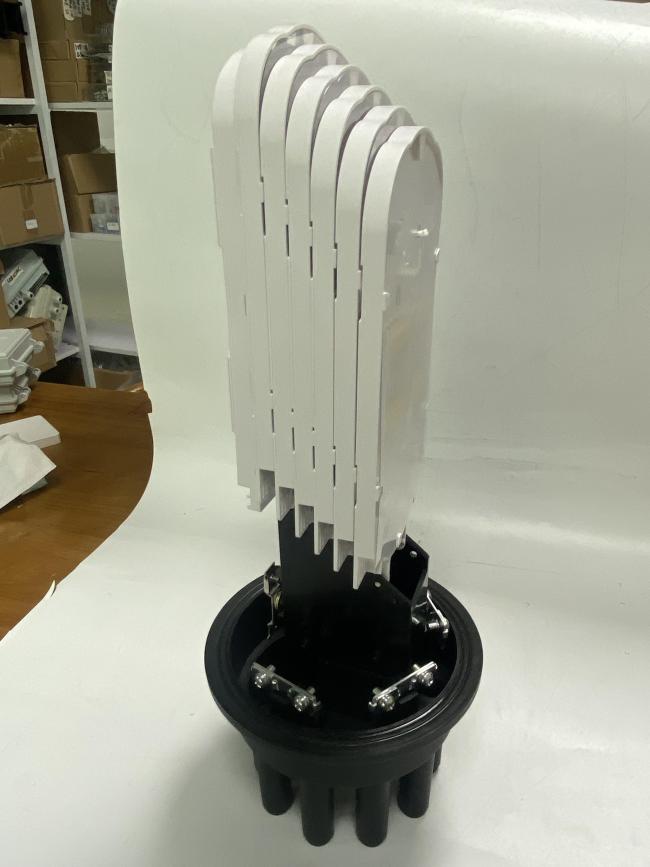

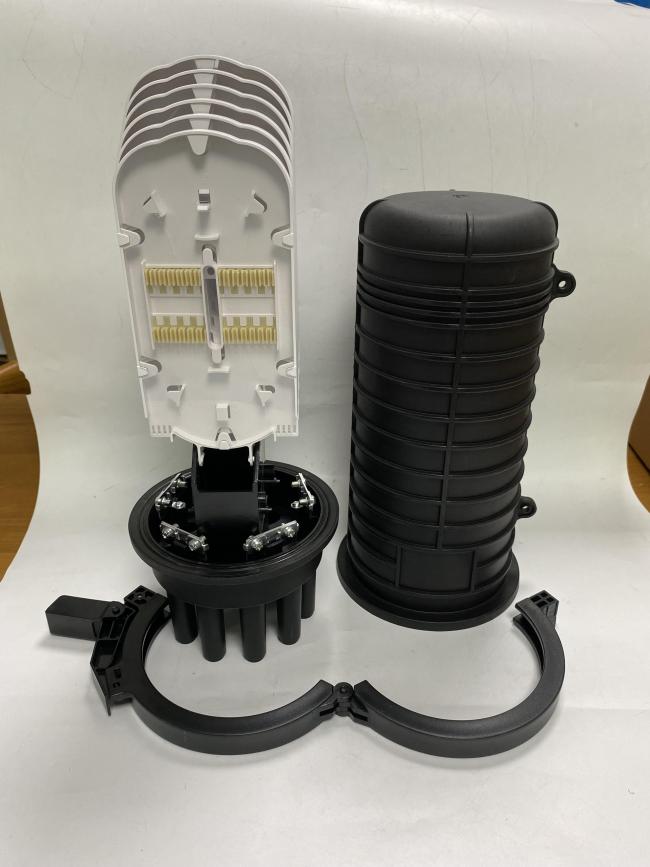

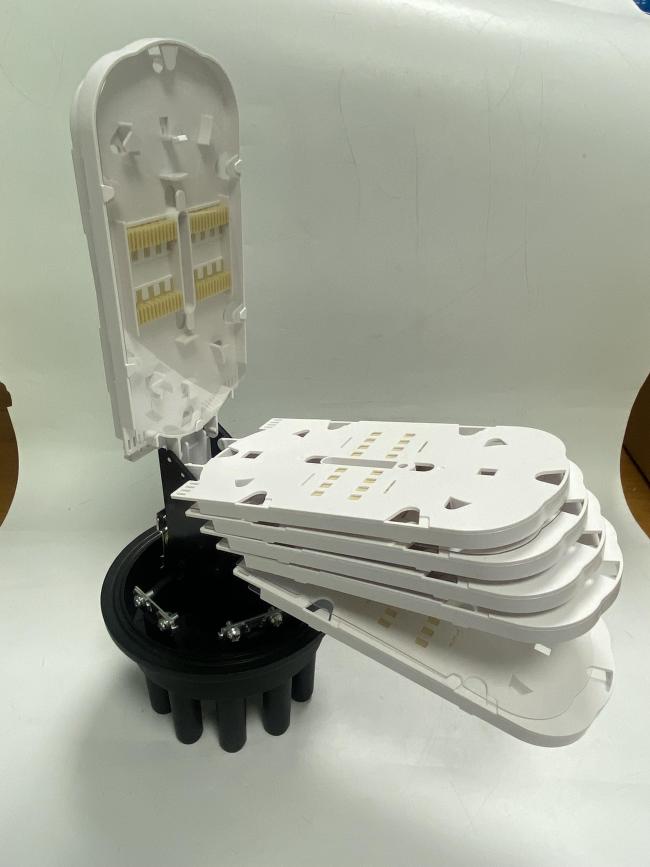

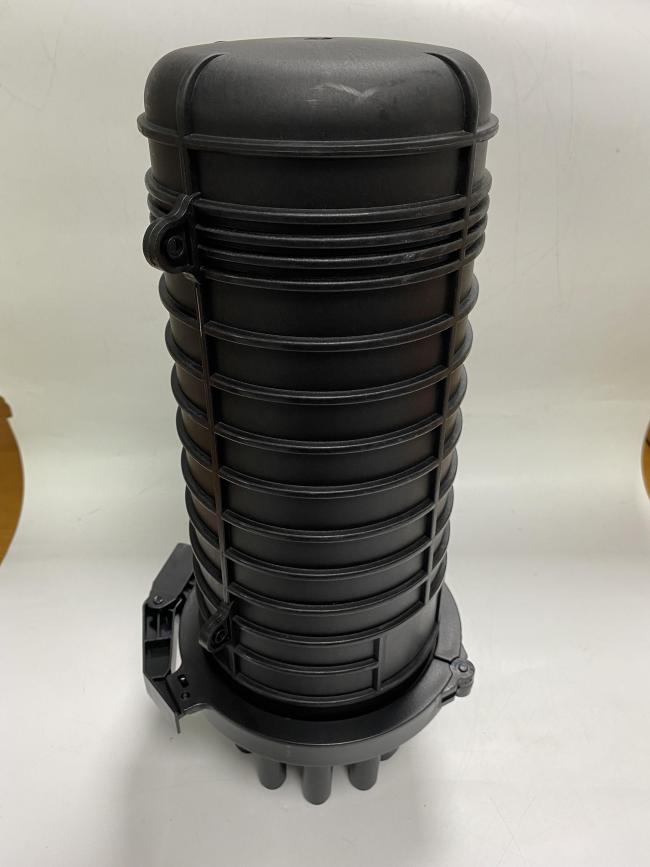

Product pictures:
