2U 19 inch Metal ODF Fiber Optic Patch Panel For FTTH FTTX CATV LAN Data Center
Price:
negotiate
MOQ:
10pc
Delivery Time:
5-8days
Brand:
YINGDA
Product Description

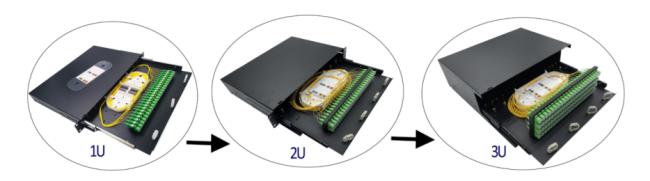

Sliding Out 1U 2U Fiber Patch Panel MODEL
Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly and branch connection, and protective the fiber.
48 patch panel Features
- Applicable in the termination and 19'' standard structure,
- Rack mount in optical distribution frame ODF
- Suitable for FC ,SC, ST, LC, E2000 adapters
- 1.2mm Cold rolled steel sheet, with electrostatic spraying
- Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cover
- Clip cover design, dust proof and whole box closed not in operation
- Total front operation with cable clamps and routing area, large fiber storage
- 4 Cable entry ports at back, diameter can be customized, normally 20mm
- Box color can be customized, white, black,etc.
- Silk print or laser mark both available.
- All the metal parts are stainless steel for long life span guarantee.
Box Dimension
| Model | Dimension(W*D*H)mm | Max capacity(cores) |
| GPSM-1U-SC24 | 482*300*1U | 24 |
| GPSM-1U-FC24 | 482*300*1U | 24 |
| GPSM-1U-2SC24 | 482*300*1U | 48 |
| GPSR-2U-SC48 | 482*300*1U | 48 |
| GPSR-2U-FC48 | 482*300*2U | 48 |
| GPSR-3U-SC96 | 482*300*3U | 96 |
| GPSR-4U-SC144 | 482*300*4U | 144 |
24 Patch Panel Technical Specification
| Width | 482 mm |
| Deepth | 300 mm |
| Height | 1U, 2U, 3U, 4U, etc |
| Max capacity | 144 cores |
| Material | 1.2 mm cold rolled steel SPCC |
| Cable entry port | 4 round port with rubber φ20mm |
| Cable exit port | SC FC LC ST E2000, etc adapter port |
| Adapter quantity | 144 pcs |
| Material coating | Powder |
| Operating temperature | -10~+85°C |
| Standards | TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C, CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS |
| IP Rating | IP20 |
| Color | White, black |
Connector specification
| Insertion loss | <0.3dB |
| Return loss | >65dB APC, >50dB UPC, >30dB PC |
| Mating durability | 500 times |
| Wavelength | 850-1550nm |
| Standards | IEC61300, IEC61754, ROHS, etc |

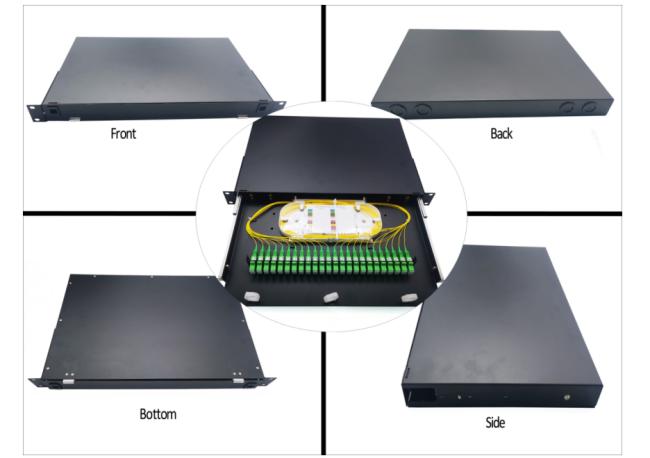

Product details
Pack information
| Model | QTY/CTN (pc) | CTN SIZE /cm | N.W./CTN (kg) | G.W./CTN (kg) |
| GPSR-1U | 5 | 48.5*42*35 | 25 | 27.5 |
| GPSR-2U | 4 | 47*35*55 | 24.8 | 26.35 |
| GPSR-3U | 3 | 47*35*45 | 22.1 | 23.65 |
| GPSR-4U | 2 | 50*35*54 | 17.2 | 18.5 |
Standard accessory
| Item | Qty | Item | Qty |
| Mounting ears | 1pair | Heat shrink protection tubes | Configuration on request |
| Number mark | Configuration on request | Nylon tie | Configuration on request |
| Mounting screws | 6pcs | Buffer tube | 1pc |
Yingda Offer all kinds of ODF box, welcome inquiry at
Sophie Wang
SHENZHEN YINGDA PHOTONIC CO.,LTD.
Email: sales@yingdapc.com
TEL: +86 18688982406
