Gray Outdoor Fiber Optic Distribution Box SC/FC/ST/LC Fiber Optic Termination Box
Price:
0.18USD-4.29USD
MOQ:
10pc
Delivery Time:
5-8days
Brand:
no
Product Description
DIN Rail Fiber Optic Terminal Box
Yingda Fiber Optic DIN terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. This metal terminal box is made of cold rolled steel, adapter plate is changeable, suitable for SC FC LC ST adapters, back with brackets to mounted on the 35mm DIN rail.
Features
Standard size, light weight and reasonable structure
Made of cold rolled steel or aluminium material with spraying

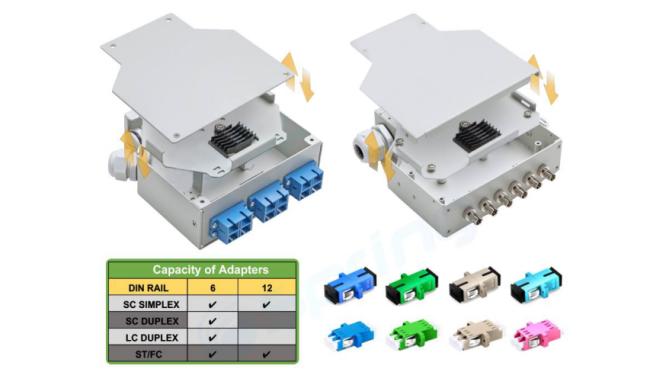

Splice tray can be overturn, easy to manage
E2000 SC LC FC ST adapter ports optional
DIN guide rail, easy to install on rack patch panel in cabinet
Capacity fro 4cores, 6core, 8core, 12cores to 24cores
Indoor wall mount or DIN rack
Color white or black both ok
Application
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN network
DIN mounting
CATV network
Specification

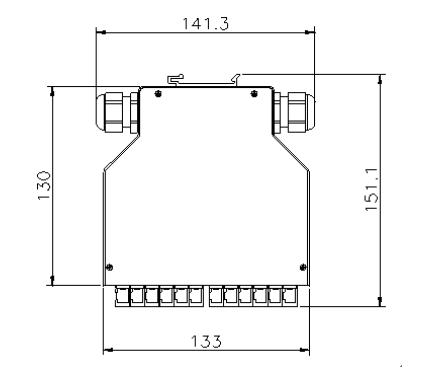

| Model | Adapter | Adapter Quantity | Capacity (core) | Dimension (mm) |
| DIN-SC06 | SC simplex | 6 | 6 | 130*141*45(1U) |
| DIN-8ST | ST simplex | 8 | 8 | 130*141*45(1U) |
| DIN-2SC06 | SC duplex | 6 | 12 | 130*141*45(1U) |
| DIN-12ST | ST simplex | 12 | 12 | 130*141*45(1U) |
| DIN-2SC12 | SC duplex | 12 | 24 | 130*141*67.5(1.5U) |
| DIN-SC24 | SC simplex | 24 | 24 | 130*141*67.5(1.5U) |
Pack information
| Size | Quantity/carton box | Carton size | Gross weight /carton box |
| 12cores /1U | 50pcs | 44*32*48cm | 26.66kg |
| 24cores /1.5U | 45pcs | 44*32*48cm | 25kg |

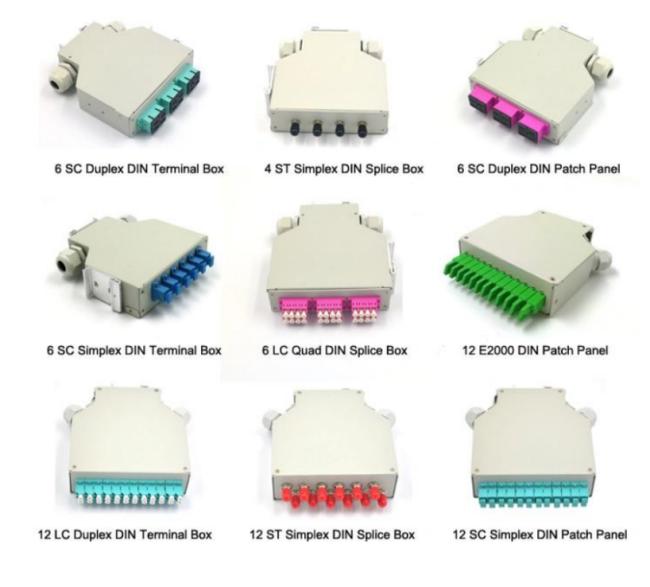

Product Showcase
