Indoor 8 SC / LC duplex Fiber Optic Distribution Box 1in 8out Fiber Optic Termination Box
FTB108H Fiber Optic Termination Box
The product is used in the end termination of residential building and villas to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles.
Features
² FTTH indoor wall mount, pole mount or aerial mount, home or work area
² Embedded surface frame, easy to install and disassemble
² Integrated with fiber cassette and cable management rods
² Max.8 SC/LC duplex adapter, 8 cores fusion splice holder
² High quality ABS+PC engineering plastic
² Dust-proof, and ROHS proof with IP45 protection level
² Laser mark, Logo print position reserved on the lid
² Special key lock to anti-thief, strength strips for better protection
Specification
| Model | FTB108H |

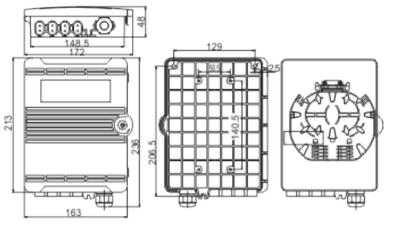

| Dimension (A*B*C) | 213*163*48 mm |
| Max.Capacity | 8 core (single fiber) |
| Cable ports | 1in, 8out |
| Cable diameter | in: 7-12mm, out: 2*3mm |
| Adapter | 8SC / LC duplex |

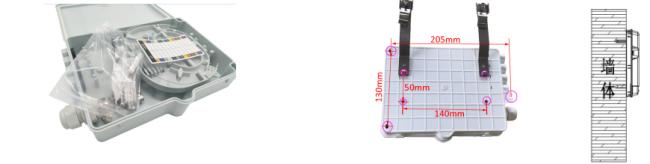

Standard Accessory: key, mounting screw, sleeve, nylon tie; Mounting size:wall mount-130/205mm;aerial mount-50/140mm
Pack information
| Net weight | Inner box | Quantity / carton box | Carton box size | Gross weight/carton box |
| 501.9g | mm | 20pcs | 61*27*43cm | 11.75kg |
