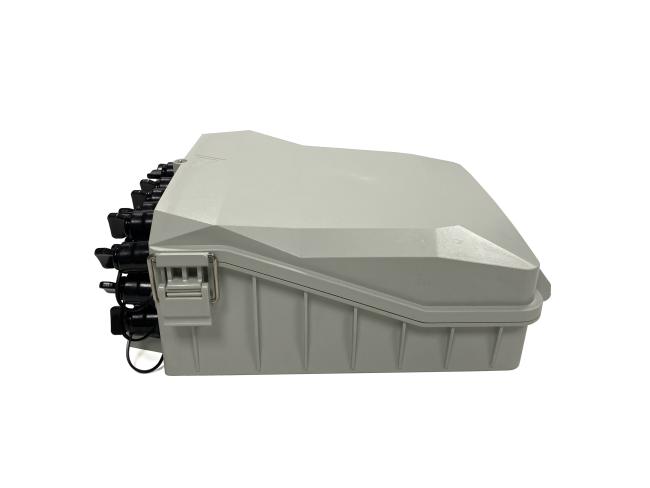

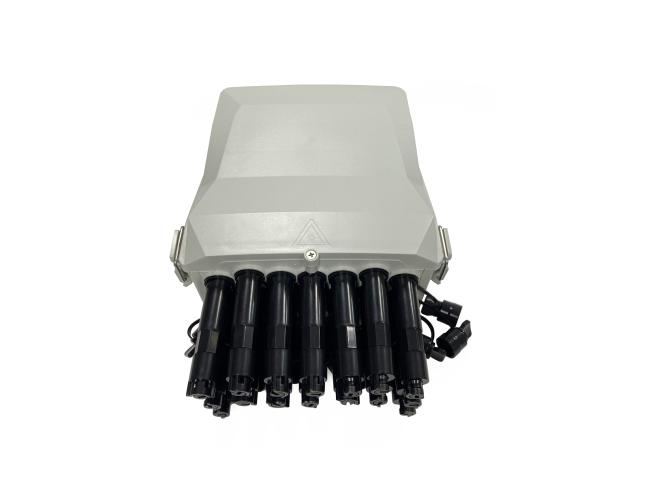

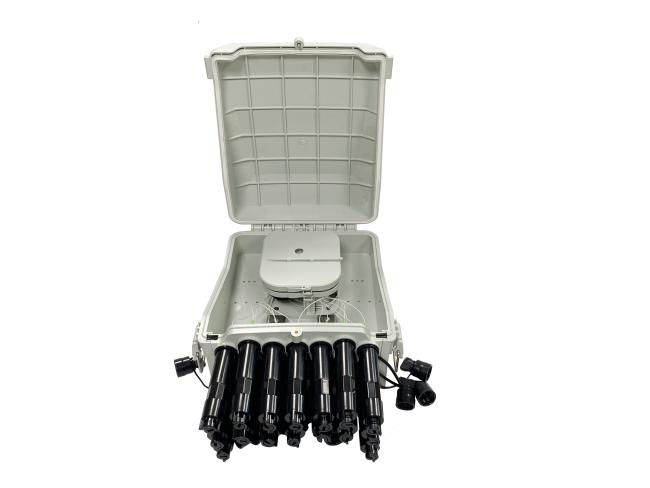

FAT 16 Ports Fiber Optic Splitter Box Waterproof Fast Connector For Outdoor Use
FAT 16L Fiber Distribution Box
FAT-16L Optical Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system,maximum 16 households end termination.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building. Especially the bottom plate and the front cable ports panel is changeable to be round drop cable ports, mini sc adapters, opti-tap sc adapters, or sc connectors with waterproof plug as per real construction needs.
Features
Main sell point:
This fiber optic distribution box use the same main body and cable inputs, but cable outputs can do various types:
Round Drop Cable Ports, Mini SC Adapter, Opti-Tap Mini SC Adapter, Waterproof Fast Connector Exit etc.
Easy to installation, the adapter panel can be removable.
Top cover with laser mark, and large space for 2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix
logo or wiring diagram printing. and winding,both sides with adapter holders
Application
- FTTH access network
- Telecommunication network
- CATV networks
- Data communications network
- Local area networks
Specification
| Model | FDB0224L |
| Dimension | 306*237*116mm |
| Adapter qty | 16cs SC simplex coupler with flange |
| Splitter qty and type | 2pcs 1:8 splitter or 1pc 1:16 splitter |
| Max. Capacity | 24 cores single fiber |
| Minimum fiber bending | ≥30mm |
| Cable inlet | 1 mid span, 2pcs PG13.5 cable glands |
| Cable outlet | 24pcs round rubber ports for drop cable |
| Color | Grey, black |
| Protection grade | IP65 |
Standard accessory
expansion screws,metal key,nylon tie, sleeve,buffer tube
Product Details

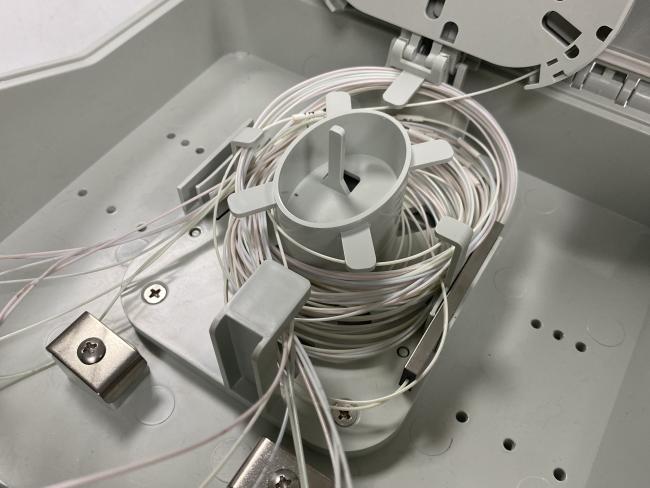

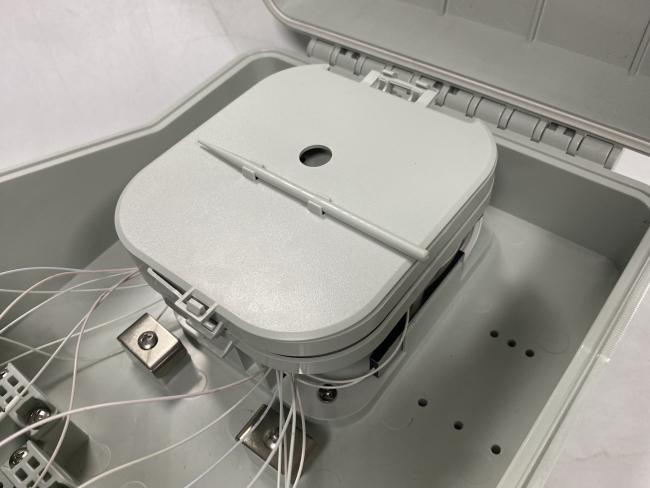

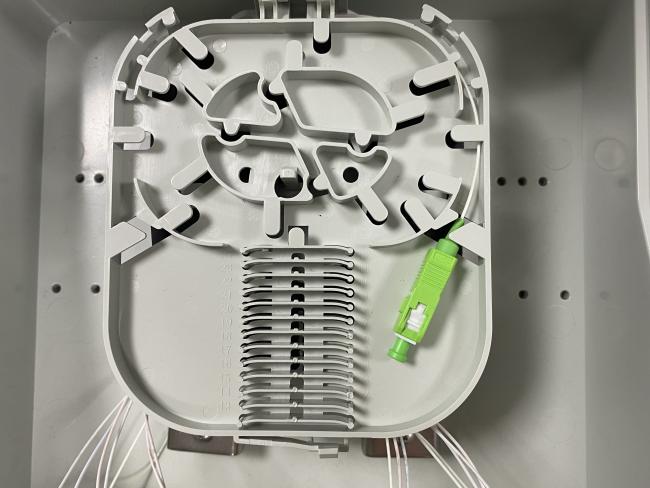

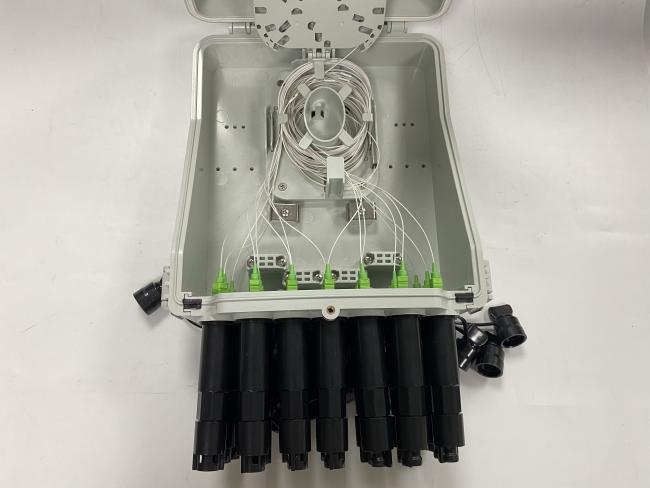

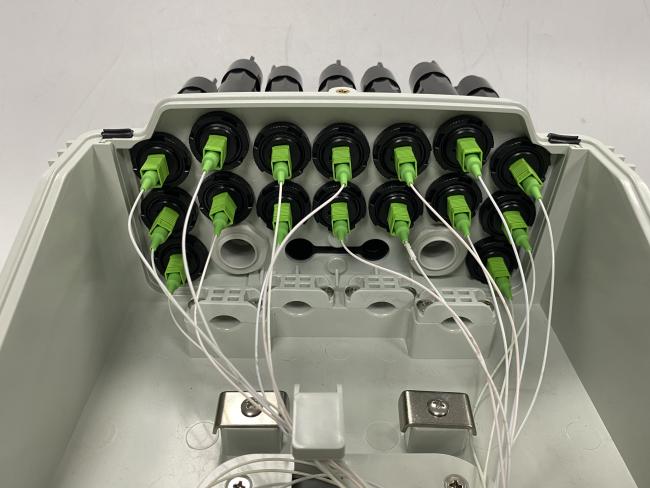

3 Layers inner parts: adapter plate / fusion splice tray / fiber storage and management area
Package information
| Packing | 500*450*400MM |
| Weight | 20kgs |
| Quantity | 10 pcs/box |
