Small type 2in 2out Inline Fiber Optic Splice Closure 12 24 Cores IP68
12 24Cores Inline Horizontal Fiber Optic Joint Enclosure 2in 2out Aerial Mount
The product can be applied in the straight line and branch line(one into two, one into three)connections of optical cables(single fiber and ribbon fiber) within the diameter of 16mm(φ), all types and structures, when laid overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.
12 Core Fiber Optic Closure Specification
| Model | GJS-H12 |
| Dimension | 300*120*55mm |
| Cable ports | 2in 2out |
| Tray capacity | 12 cores (single fiber) |
| Tray quantity | 2pcs |
| Max capacity | 24cores(single fiber) |
| Optical fiber winding radius | ≥40mm |
| Extra loss of fiber tray | ≤0.01dB |
| Working temperature | - 200C ~ + 600C |
| Lateral pressure-resistance | ≥2000N / 10cm |
| Shock-resistance | ≥20N.m |
12Core Fiber Splice Closure Application
- Aerial, underground, pipeline, handhole, etc
Standard mounting kits at back, hinge design to ensure the box and cover in a unibody, no need to remove
-----------------------------------------------------------------------------------------------------------------------------------------------------
There are 2*cable glands each side, cable diameter φ16mm with grommets and fixtures inside of the box, better protection and waterproof.
-----------------------------------------------------------------------------------------------------------------------------------------------------
This fiber optic splice closure is inline type, total 8pcs 12core splice tray overlapped into 96cores. The trays all fix on bottom integrated plate with screws.
-----------------------------------------------------------------------------------------------------------------------------------------------------
This horizontal splice closure is locked with screw rods all around, which ensure underground application good waterproof function. It can be opened easily with an Allen key.
Internal plastic part is a complete set, whole set can be take out by hand, no need special tool.

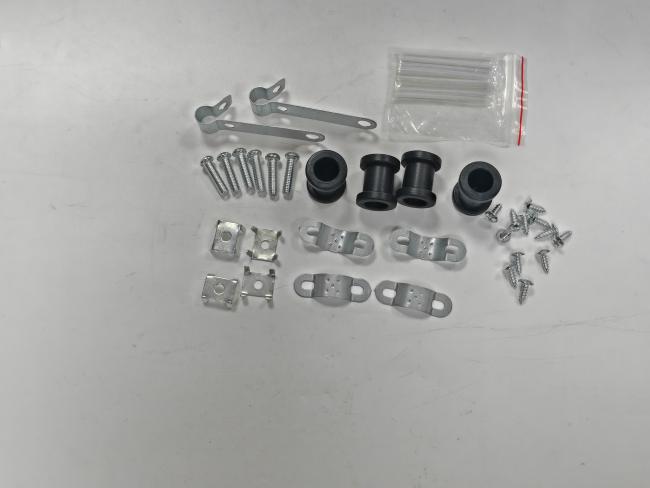

| Main body | 1set |
| PVC tape | 1roll(optional) |
| Label | 1-2pcs (configuration on request) |
| Heat shrink protection sleeve | 1-24pcs (configuration on request) |
| Handing tool | 1set |
| Rubber seal | 0-2pcs(optional) |
| English instruction | 1pc |
| Cable ties | 1-32pcs(optional) |
