2in 2out 4 Ports Fiber Optic Termination Box For Drop Cable Splicing And Protection Box
2in 2out 4 Ports Fiber Optic Termination Box for Drop Cable Splicing and Protection Box
FSB drop cable splicing protection box is a case used to help protect the fiber joint (splicing spot) with a heat shrink protection tube, it is able to hold up to 2pc drop cable and widely used as a termination point for the drop cable to connect with pigtail or bare fiber access to ONT in FTTH indoor application. It integrates fiber splicing, storage and protection in one solid box.
Splicing Protection Box F022 Features
- Dust-proof design with IP-45 Protection level

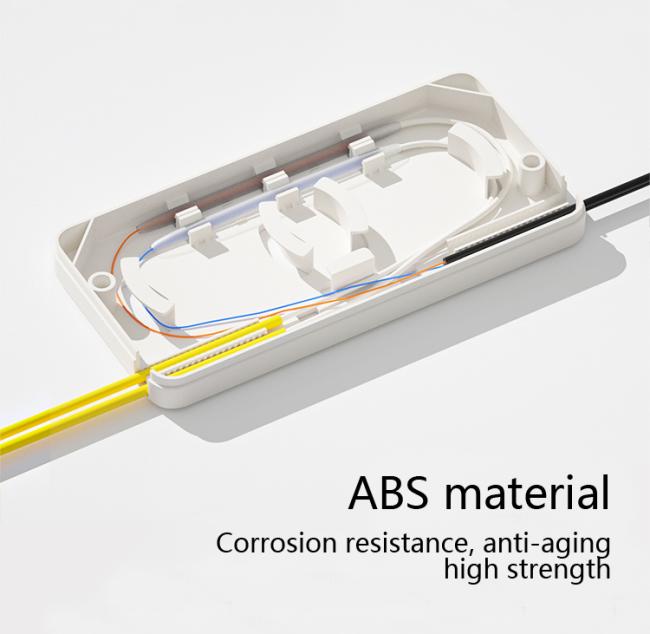

- Industrial ABS PP engineering plastic material, white color
- Protect the fiber splice sleeve 40mm, 45mm or 60mm from damage

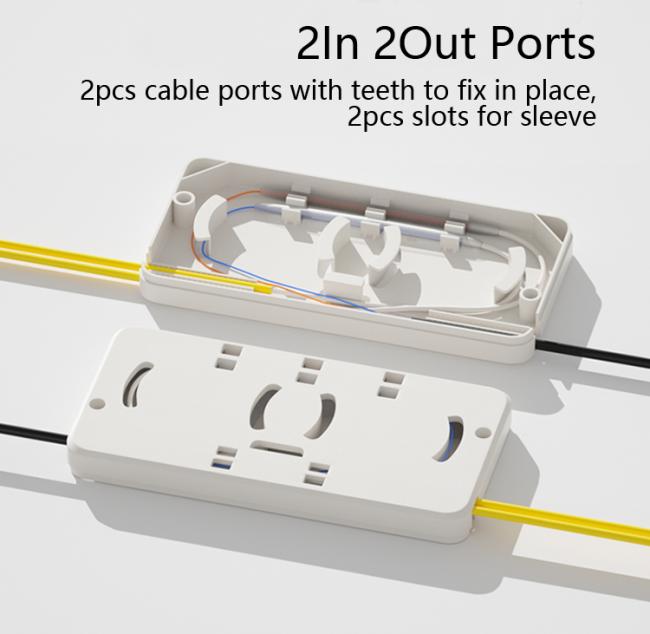

- 2in 2out cable go directly through the box
Splicing Protetion Box F022 Specification
| Model | FSB-F022 |

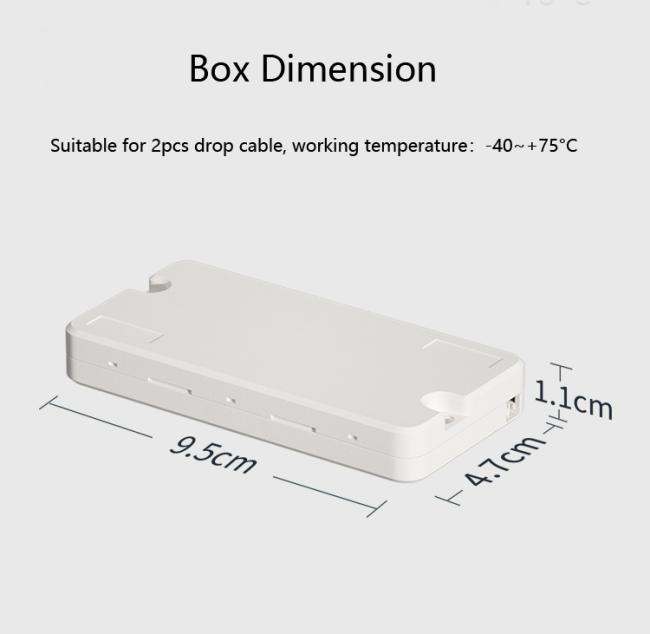

| Dimension(L*W*D) | 95*47*11 mm |
| Max capacity | 2 core single fiber |
| Cable ports | 2in 2out |
| Cable diameter | Flat drop cable 2.0*3.0mm, indoor cable 0.9mm, 2,0mm, 3.0mm, 250um bare fiber |
| Color | Transparent |
| Working temperature | -40~+75°C |
| Material | ABS / PP |

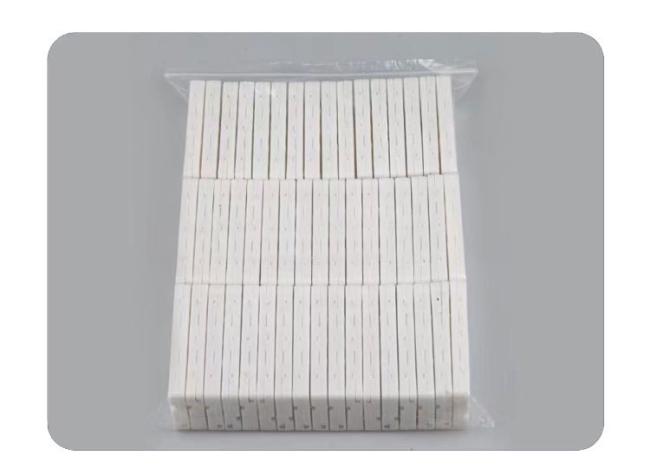

Splicing Protection Box F022 Pack Information: 50pcs/bag

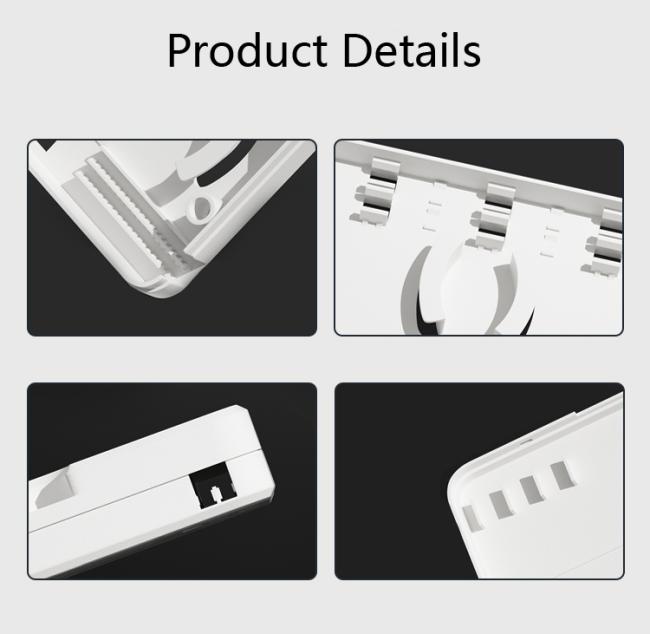

Splicing Protection Box F022 Product Details
