3in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box
3in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box
FSB drop cable splicing protection box is a case used to help protect the fiber joint (splicing spot) with a heat shrink protection tube, it is able to hold up to 3 pc drop cables and widely used as a termination point for the drop cable to connect with pigtail or bare fiber access to ONT in FTTH indoor application. It integrates fiber splicing, storage and protection in one solid box.
Drop Cable Protection Box F033 Features
- Dust-proof design with IP-45 Protection level
- Industrial ABS PP engineering plastic material, white color
- Protect the fiber splice sleeve 40mm, 45mm or 60mm from damage
- 3in 3out cable go directly through the box

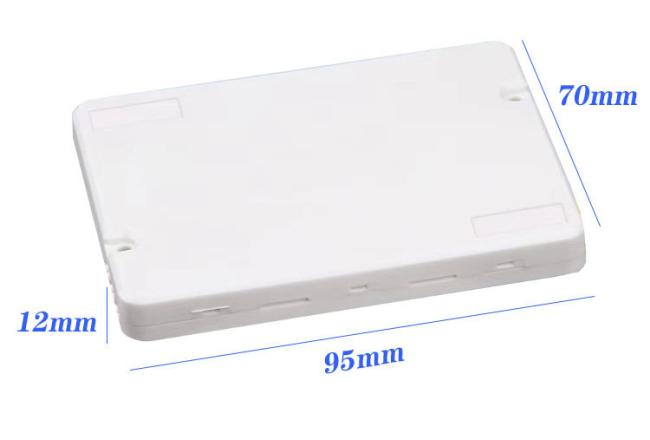

Drop Cable Protection Box F033 Dimension
Drop Cable Protection Box F033 Specification
| Model | FSB-F033 |
| Dimension(L*W*D) | 95*70*12 mm |
| Max capacity | 3 core single fiber |
| Cable ports | 3in 3out |
| Cable diameter | Flat drop cable 2.0*3.0mm, indoor cable 0.9mm, 2,0mm, 3.0mm, 250um bare fiber |
| Color | Transparent |
| Working temperature | -40~+75°C |
| Material | ABS / PP |
Drop Cable Protection Box F033 Pack Information: 20pcs/bag

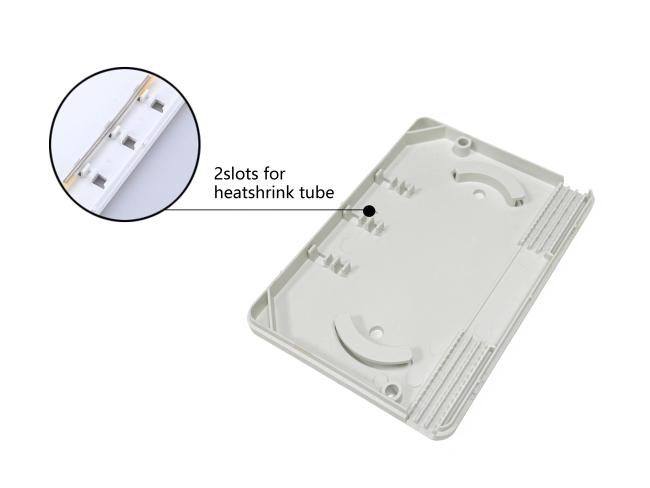

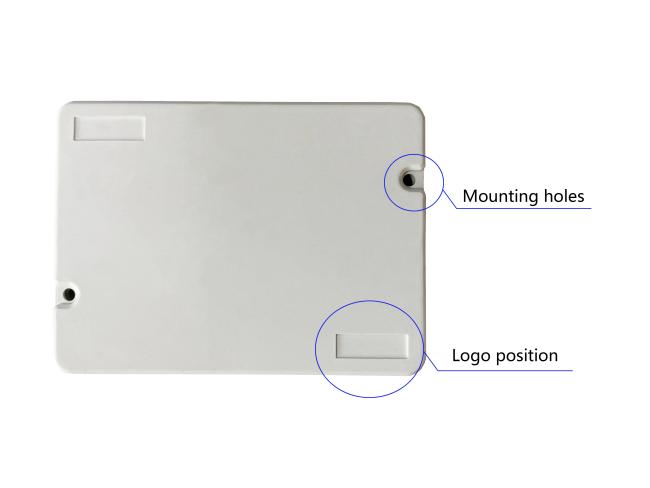

Drop Cable Protection Box F033 Product Details
