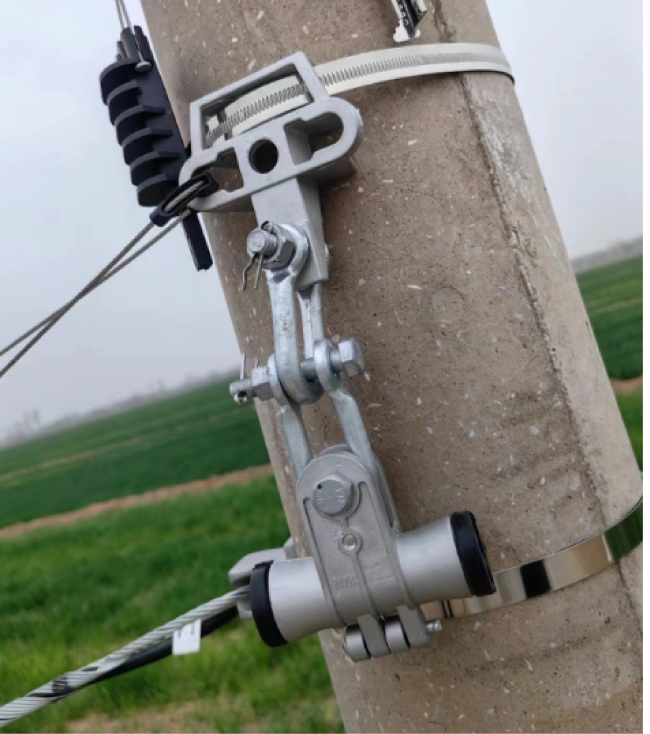

UPB bracket is manufactured from aluminum alloy, high mechanical strength and long lasting, widely used in fiber optic cable deployment system. It is used for the installation of 1 to 3 parallel cables or 5 drop wires, and good stay system on all types of poles like wooden, metal or concrete materials with 14 / 16 mm bolts or with two 20 mm bands. Meanwhile, the UPB bracket can used as a plate for the installation of cross-arms 5/14 and 5/15.

UPB Bracket Features

• Easy installation and light weight;
• Fixed to the pole by 2 stainless steel band (20 mm) or 1 bolts 14~16mm diameter;
• Provide the principal of all in one device, by offering up to 5 clamping points;
• High breaking load allows withstand a sufficient load without anchor clamp slip or break;
• Material is aluminum alloy, passivized ensure high mechanical strength, long life span;
• The installation can be proceed on the poles of walls, wooden, metal concrete material made, by using stainless steel band or bolts.

UPB Bracket Specification
