Unbalanced Splitter 18 Ports Outdoor Fiber Optic Distribution Box Pre-connectorized Connector Mini SC

1X16 + 1X2 Splitter 18 Ports Outdoor Fiber Optic Distribution Box Pre-connectorized Connector Mini SC

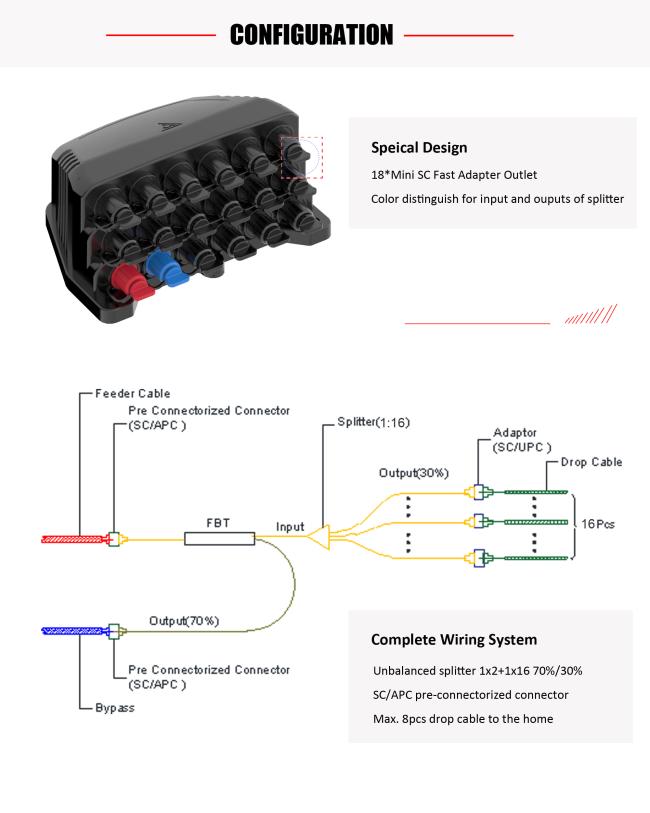

CTO-18-16P Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx telecommunication network system it can also provide feeder cable for the next SDSP after splitting. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

18 Port Optical Distribution Box Features

• Water-proof design with IP65 Protection level.
• Integrated with splice cassette and cable management system.
• Manage fibers in a reasonable fiber radius condition.
• Easy to maintain and extend the capacity.
• Suitable for pre-Connectorized Cable Assemblies.
• 10 ports cable entrance for FTTH drop cable.
• perform in accordance with IEC 61753-1 Table A.14.
• Identification table labeling inside the cover.

Unbalanced Splitter Distribution Box Application

• FTTH access network
• Telecommunication network
• CATV networks
• Data communications network
• Local area networks

Unbalanced Splitter Distribution Box Specification
