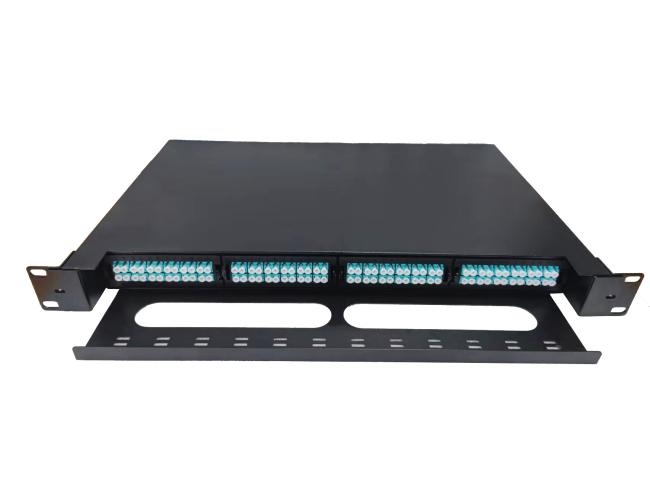

YINGDA MPO Patch Panel 96fibrs for High-Density Fiber Distribution and Management in Data Centers

MPO Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for data center and high density cabling system, it is large capacity and small size, good performance. It is 19inch standard size for rack mount optical distribution frame, suitable to use LC duplex couplers.

Features

• Standards: IEC / EN 61754-7 (MPO connector) and TIA-568-B.1-7
• Modular connection system: Factory pre terminated optical fiber connection components, any length and any optical fiber SM & mm, trunk cable and module box, easy installation, plug and play system solution
• High density connection system: compact design, 12 core connector, up to 96 core optical fiber 1U rack mount
• After factory pre termination and testing, the quality assurance and consistency exceed the demand of 10Gbit
• Made of high quality Cold rolled steel sheet, with electrostatic spraying
• Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cover
• Total front operation with cable clamps and routing area, large fiber management area
• 2U,3U are available

Application

Machine rooms of data center and intranet

Product Detail

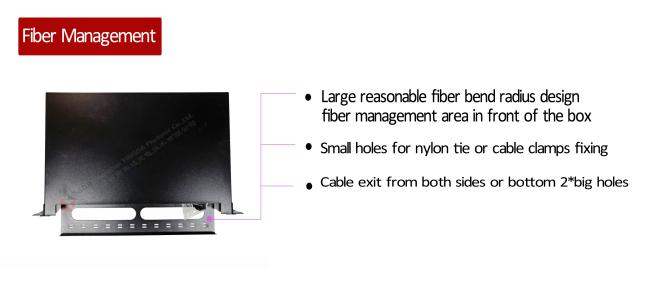

Fiber Management

1.Large reasonable fiber bend radius design, fiber management area in front of the box

2. Small holes for nylon tie or cable clamp fixing

3. Cable exit from both sides or bottom 2*big holes or 4*holes

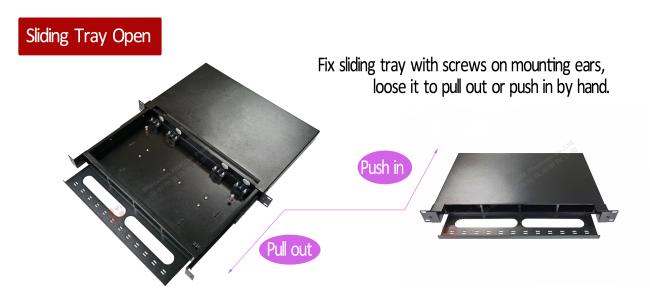

Sliding tray Open

Easy to operate when installation

Order information

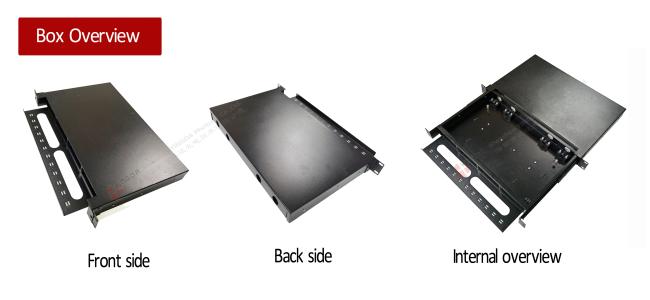

More product pictures

• each 1piece / box , good protection to box and internal fibers.
• front dustproof panel is transparent, but flexible to take off. It is good for fiber protection and system safe.

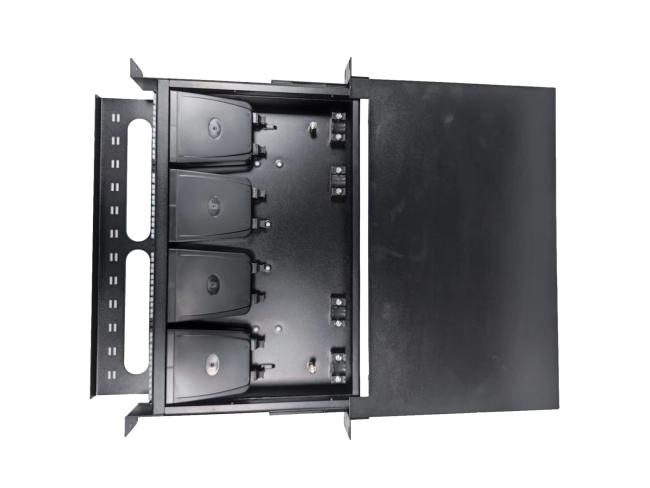

• each patch panel can hold 4 pieces of MPO cassette modules, each modules can do 12fibers=6xLC duplex, or 24fibers=12xLC duplex.
• it is also can use only for MPO ports for truck cable.
• all modules use high quality LC duplex adapters without flange,it is high compact, datacenter system speical use.
• each MPO cassette module can be taken off , and it is sliding type. Good to install and maintance.
• front operation panel have 2 long holes for cable routing and in and out.

If need 3U MPO/MTP patch panel, please contact us for link.
