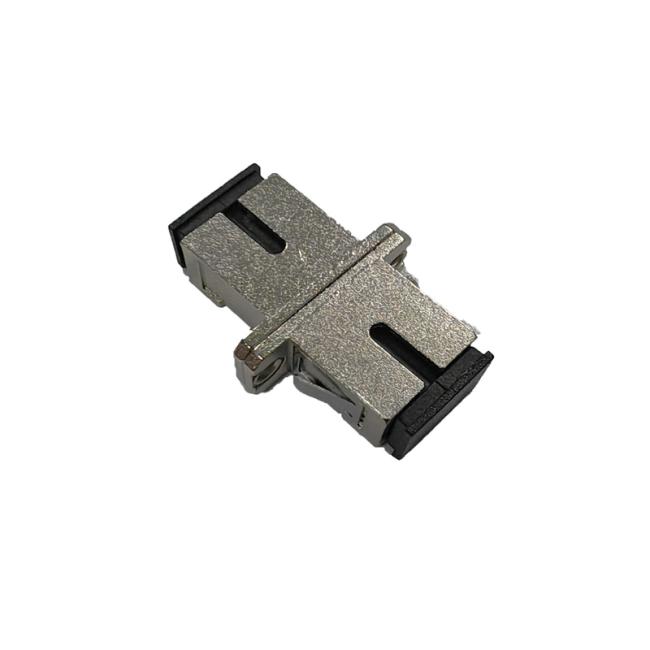

High Precision SC Simplex Fiber Optic Adapter With Metal Housing And Low Insertion Loss
Price:
0.04USD-2.15USD
MOQ:
10PCS
Delivery Time:
2-5days
Brand:
YINGDA
Product Description
High Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal Housing
Features:
- Low insertion loss, high return loss
- Good compatibility
- High precision of mechanical dimensions
- High reliability & stability
- Both eramic and Bronze Sleeve are available
- PC,APC,UPC optional
- Duplex
- Metal housing
Application:
- Local Area Network
- CATV System
- Telecommunication Networks
- Equipment Test Specification:
Specification:
|
Parameter |
Unit |
SC-SC Duplex |
|
SM/ MM |
||
|
PC/UPC/APC |
||
|
Insertion Loss (Typical) |
dB |
≤0.2 |
|
Return Loss |
dB |
≥60 |
|
Exchangeability |
dB |
≤0.2 |
|
Repeatability |
dB |
≤0.2 |
|
Durability |
Time |
>1000 |
|
Operating Temperature |
°C |
-40~75 |
|
Storage Temperature |
°C |
-45~85 |
