144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground

(GJS-03H)FOSC400B8 Fiber Optic Splice Closure Joint Box

Features

• Excessive fibers can be stored in storage baskets. Easy in fiber management.
• Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
• Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
• The splice trays are hinged for access to any splice tray, without disturbing other trays.
• The inner parts and fixing parts are made of stainless steel
• With a earthing device protect it from damage by lightning
• Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications(tap-off, expressed, branch, and repair)

Specifications

Application

• Underground, Aerial, Vault, Pole Mounting and Wall Mounting

Standard accessories

Dome, Base, clamp, O-ring,metal storage basket, Splice Tray,Heat shrink protective sleeve,buffer tube,Cable ties,Grounding wire, Labeling paper, Installation Manual, etc

1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper

(2.5 x30mm)+ branching clip etc

8 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)etc

Optional accessories

Hanging hook,Wall mounting(Duct mounting) kits,Pole Mounting kit,Grounding device,Air valve

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

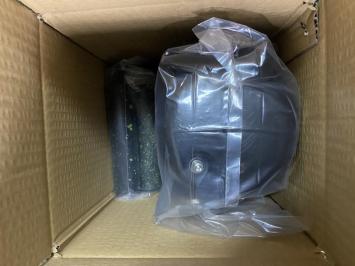

Packing Method:

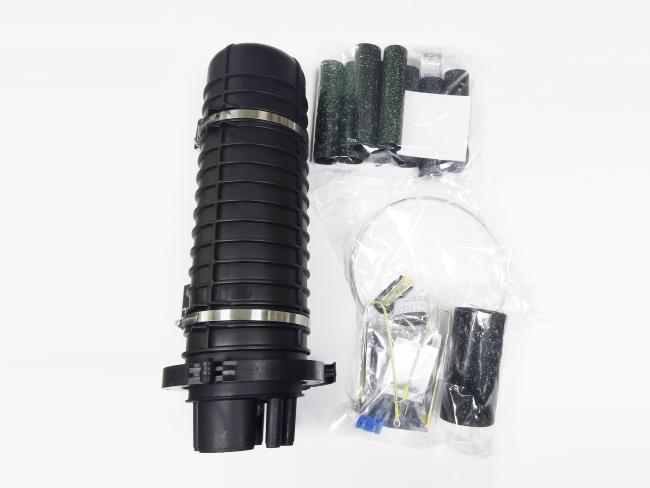

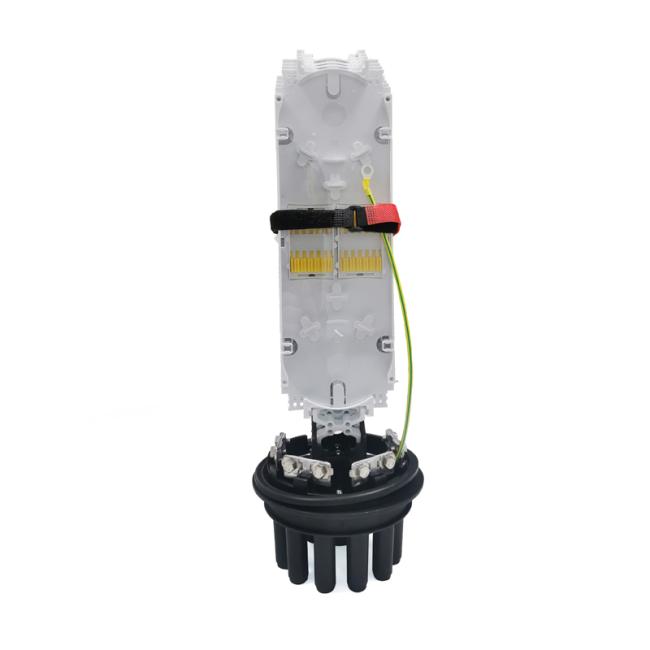

Actual Picture:
