LC/SC/ST/FC/LSH Fiber Optic Pigtail With Good Exchange Ability And Stability

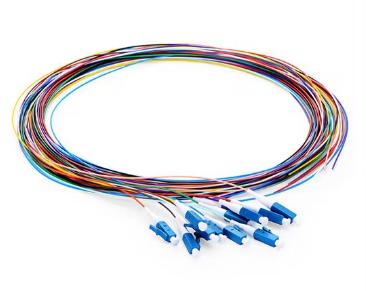

Multimode Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Specification
| Connector Type | LC/SC/ST/FC/LSH | Polish Type | UPC |
| Fiber Mode | OM4 | Wavelength | 850/1550nm |
| Cable Type | Color-coded/Bunch/Ribbon | Fiber Grade | G.651/Bend Insensitive |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 850nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Minimum Bend Radius | 30mm | Cable Diameter | 0.9/2.0/3.0mm |
| Type | custom | Fiber Count | 4/6/8/12/24/48 cores |
| Storage Temperature | -45~85°C | Operating Temperature | -40~75°C |
Packing Delivery:
Delivery: 5-10 working days, depends on quantity.
Packing: PP bag and carton box
Application:
1.Telecom Network
2.LAN and WAN
3.CCAV and cable TV
4.Multimedia

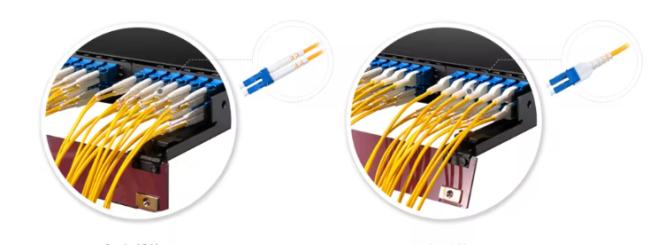

5.Active device termination

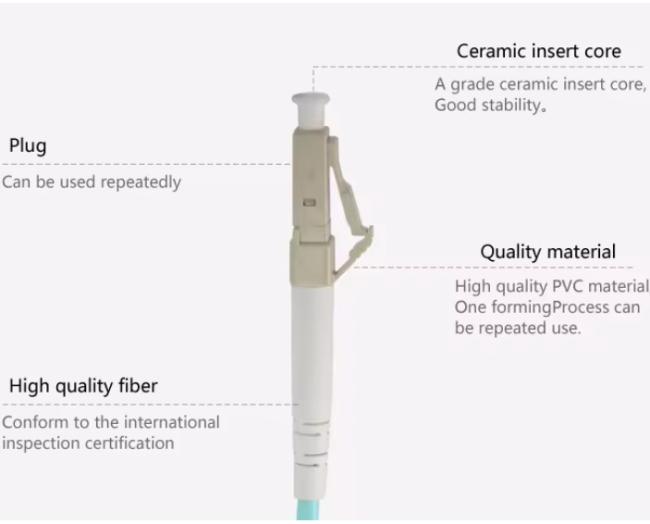

Characteristics:
1. Simplex and duplex connector available
2. High precision of mechanical dimensions.
3. Good exchange ability and good durability;
4. Low Insertion Loss, High temperature Stability and Good exchangeability.
5 Fan-out Available, Pigtail Available, Various
