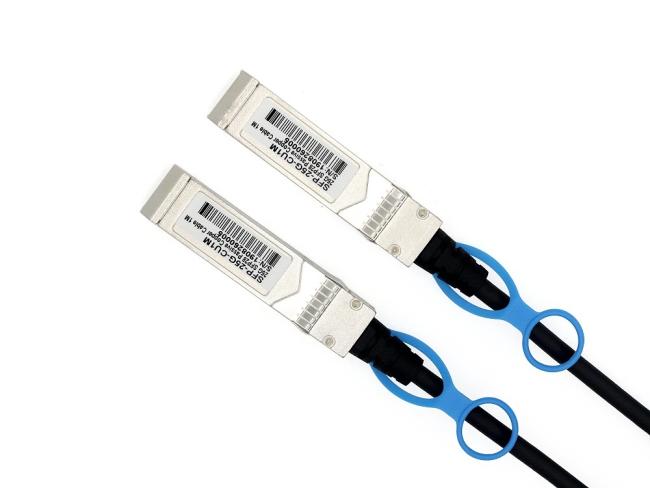

25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter
Description
High-speed SFP28 Cable 25Gb DAC comply with IEEE P802.3by Ethernet standard and SFF-8402 SFP28 standard. It is a high-performance, cost-effective I/O solution for 25GB Ethernet and 25G Fiber Channel applications, which can achieve high port density, configurability and utilization at a very low cost and reduce power budget. Its transmission distance can reach 5 meters.
Technical Parameter
| Product Model |
SFP H25Gb Cu5m |
| Transmission rate | 25G |
| Transmission distance | 1-5M (optional) |
| Packaging form |
SFP28 to SFP28
|
| Cable Type | 30AWG/24AWG |
| Brand | YINGDA |
| Compatible with brand | Extreme, Intel, Huawei, Cisco, HP, H3C, etc |
| Operating temperature | 0~70℃ |
| Warranty | 3Years |
| Cable material | PVC |
| Power supply voltage | 3.3V |
Features
- Supports hot-swappable SFP28 form factor
- Compliant with SFF-8431/SFF-8432
- Compliant with SFP+ MSA and 10GSFP+Cu standards
- Maximum rate up to 25.7815 Gbps
- Connection length up to 5 meters via active copper cable
- Enhanced EMI/EMC performance
- Provide cable sizes from 30AWG to 28AWG
- I2C-based two-wire serial interface with customizable EEPROM signature
- Maximum power consumption 0.5W
- Compliant with RoHS 6.0
- 2-3 working days fast delivery if a standard products
Widely Compatibility
To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many
brands of switches, such as Cisco, Intel...
Wide Application
25G Ethernet
Data storage and communications industry switches/routers/hba
Enterprise Networking SAN
High Performance Computing Clusters
High-end servers
InfiniBand QDR and Base Station/ BBU/ RRU
More DAC cable for optional
| Item# | Transmission rate | Transmission distance | Cable Type | Packaging form |
| SFP-10G-CUxM | 10G | 1-10M | 30/24AWG | SFP+ to SFP+ |
| SFP28-25G-CUxM | 25G | 1-5M | 30/26AWG | SFP28 to SFP28 |
| QSFP-40G-CUxM | 40G | 1-7M | 30/24AWG | QSFP+ to QSFP+ |
| QSFP28-100G-CUxM | 100G | 1-5M | 30/26AWG | QSFP28 to QSFP28 |
| QSFP-4x10G-CUxM | 40G | 1-7M | 30/24AWG | QSFP+ to 4SFP+ |
| QSFP28-4x25G-CUxM | 100G | 1-5M | 30/26AWG | QSFP28 to 4SFP28 |
