Description

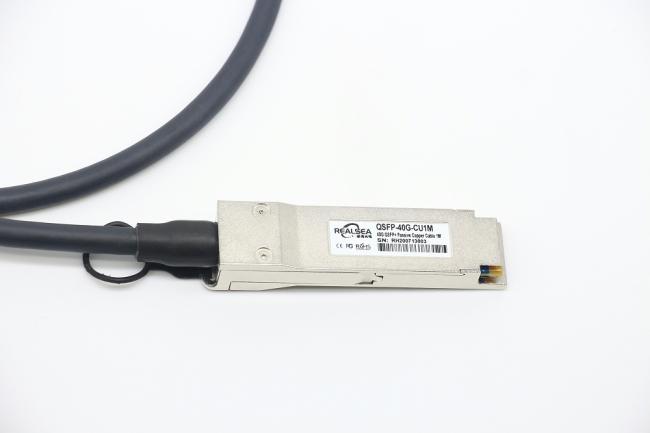

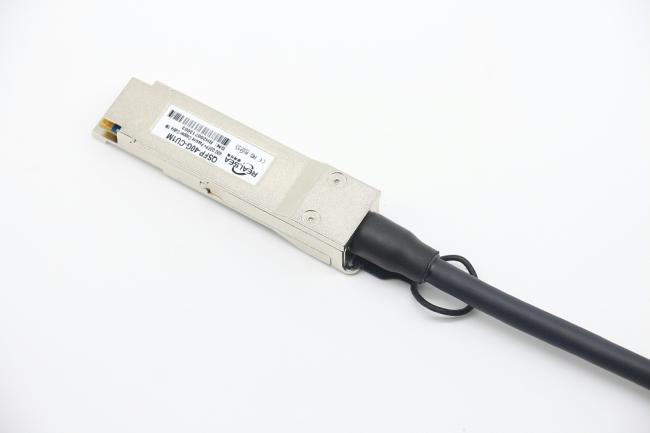

The QSFP28 high-speed cable is applied in data center interconnection scenarios such as 100G Ethernet and InfiniBand. It is 100% compatible with all series of brand servers, switches, routers, PDH/SDH transmission equipment, EPON, GPON, WDM PON base stations and other full series of devices. The QSFP28 high-speed cable has advantages such as extremely high reliability, low cost and low power consumption.

Technical Parameter

Features

• Supports hot-swappable QSFP+ form factor
• 4-channel full-duplex active copper transceiver
• Maximum rate up to 100Gbps
• Compliant with QSFP28  MSA and IEEE 802.3ba 40GBASE-CR4 standards
• Compatible with Ethernet Fibre Channel and InfiniBand SDR/DDR/QDR standards
• Connection length up to 5 meters via passive copper cable
• Enhanced EMI/EMC performance
• Available cable sizes from 30AWG to 24AWG
• I2C-based two-wire serial interface with customizable EEPROM signature
• Operating temperature: 0~70℃
• RoHS 6.0 compliant

Widely  Compatibility

To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many brands of switches, such as Cisco,  Intel...

Wide Application
