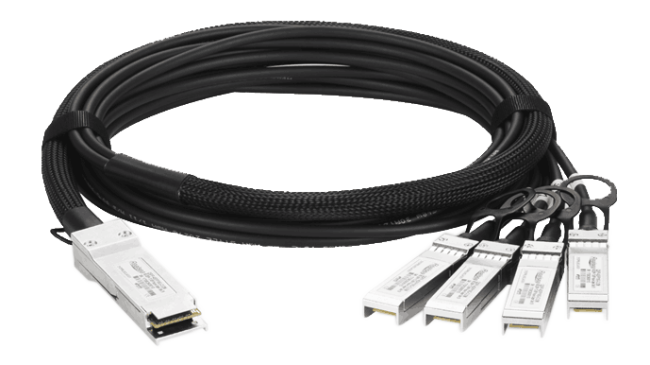

100G QSFP28 To 4x25G SFP28 DAC Twinax Cable Direct Attach Copper Material Compatible With Cisco

Description

The 100G QSFP28 to 25G SFP28 high-speed cable is applied in the data center for the 100G (100GBASE-SR4) to 4-channel 25G (25GBASE-SR) Ethernet branch link. At the same time, it is 100% perfectly compatible with all brands of servers, switches, routers, PDH/SDH transmission equipment, EPON, GPON, and WDM PON base stations.

The 100G QSFP28 to 4 SFP28 DAC is suitable for stacking and interconnection of short-distance big data devices. One end is a 100G QSFP28 interface, and the other end has 4 25G SFP28 interfaces. It can provide customers with 100G data transmission and complies with IEEE 802.3BA standard, SFF-8665/SFF-8679, IEEE 802.3bj and Infiniband EDR standards.

Technical Parameter

Features

• Supports hot-swappable QSFP28 and SFP28 packages
• Complies with QSFP28 MSA, SFP28 MSA, SFF-8636, and SFF-8402 standards
• Maximum rate up to 103.125 Gbps (4 x 25 Gbit/s)
• Complies with IEEE 802.3bj 100GBASE-CR4 and 802.3by 25GBASE-CR standards
• Cable length can be customized within 5 meters
• Low insertion loss and low crosstalk, etc.
• Operating temperature: 0 – 70℃
• Power supply voltage: 3.3V
• Complies with RoHS 6.0

Widely  Compatibility

To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many brands of switches, such as Cisco,  Intel...
