2.5G BiDi SFP 1310nm 40KM SingleMode Dual Fiber LC SMF Transceiver Module SFP-2.5G-LH-40
Price:
3.6usd-8usd
MOQ:
10pcs
Delivery Time:
5-7 working days
Brand:
YINGDA
Product Description
2.5G BiDi SFP 1310nm 40KM SingleMode Dual Fiber LC SMF Transceiver Module SFP-2.5G-LH-40
The SFP transceivers are high performance, cost effective modules supporting data-rate of 2.5Gbps and 40km transmission distance with SMF.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA and SFF-8472.
Feature:
Up to 2.5Gbps data links
1310nm DFB Laser and PIN photo-detector
Up to 40km on 9/125µm SMF
Duplex LC receptacle optical interface compliant
Hot pluggable
All-metal housing for superior EMI performance
RoHS6 compliant (lead free)
Operating case temperature:
Commercial: -5ºC to +70ºC
Extended: -20ºC to +80ºC
Industrial: -40ºC to +85ºC

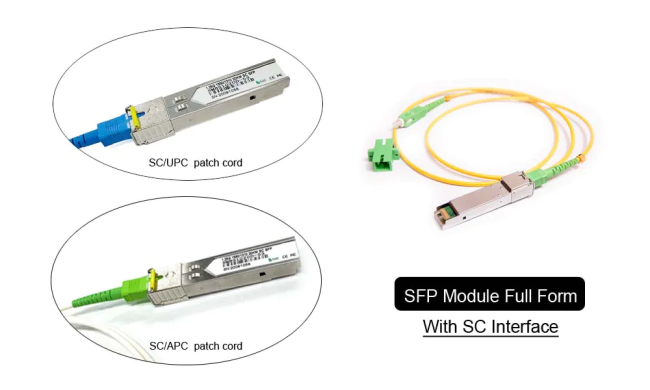

The SFP Module Full Form consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and control unit. All modules satisfy class I laser safety requirements. The gold-plated contacts on the surface of the gold fingers are thickened to enhance conductivity and allow for repeated insertion and removal. It can be used together with SC patch cords for termination connection.
Applications
SONET OC-48/ SDH STM-16
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission system

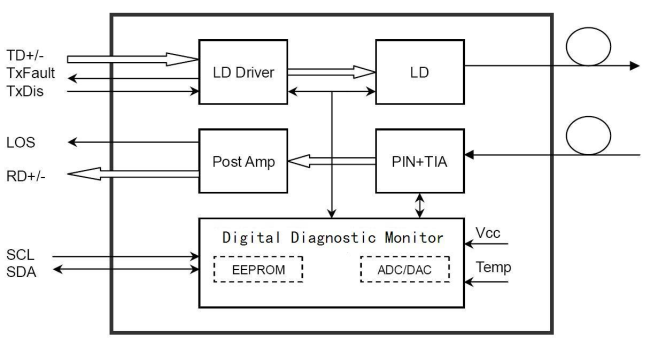

Module Block Diagram
Optical Parameters
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section | ||||||
| Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |
| Spectral Width (-20dB) | ∆λ | 1 | nm | |||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||
| Average Optical Power (avg.) | Pout | -2 | 3 | dBm | 1 | |
| Laser Off Power | Poff | - | - | -45 | dBm | |
| Extinction Ratio | ER | 8.2 | - | - | dB | 2 |
| Relative Intensity Noise | RIN | - | - | -128 | dB/Hz | 12dB reflection |
| Optical Rise/Fall Time | tr / tf | - | 160 | ps | 3 | |
| Optical Return Loss Tolerance | - | - | 12 | dB | ||
| Output Optical Eye | Compliant with ITU-T G.957 | 2 | ||||
| Receiver Section | ||||||
| Receiver Center Wavelength | λc | 1260 | 1620 | nm | ||
| Receiver Sensitivity in Average Power | Sen | -22 | 0 | dBm | 4 | |
| Los Assert | LOSA | -35 | - | - | dBm | |
| Los Dessert | LOSD | - | - | -23 | dBm | |
| Los Hysteresis | LOSH | 0.5 | - | 5 | dB | |
| Overload | Pin-max | - | - | 0 | dBm | 4 |
| Receiver Reflectance | - | - | -12 | dB | ||
| Receiver Power (damage) | - | - | 3 | dBm | ||

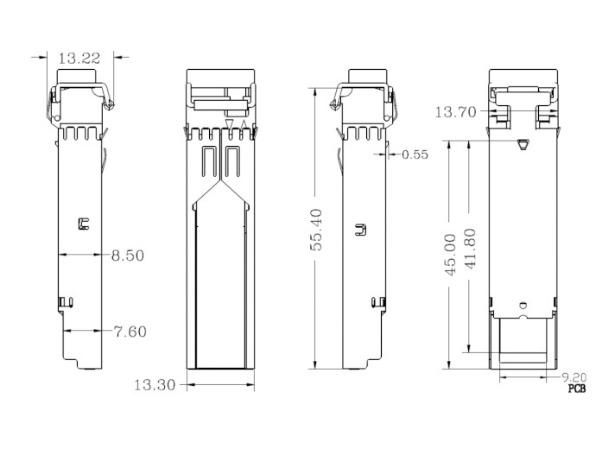

Mechanical Dimensions
