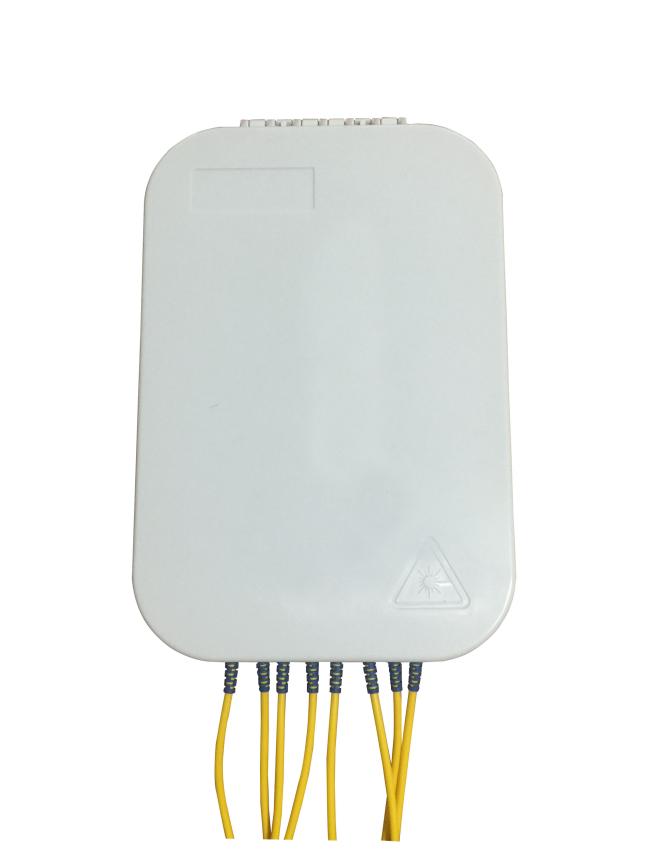

Fiber Optic Termination Box with 1x8 PLC Splitter for FTTH Indoor Wall Mounted
Fiber Optic Termination Box with 1x8 PLC Splitter for FTTH Outdoor Wall Mounted
This wall-mounted fiber optic termination box integrates a 1x8 PLC splitter and fiber management in one compact unit, designed for FTTH drop fiber termination, splicing, and distribution at residential and outdoor locations. It serves as an ideal fiber distribution point between the feeder cable and subscriber drop cables.
YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
FTB108E (Indoor Optical Socket) is a passive optical device for connecting ONTs and home information panels, ATB Installed indoors, provides optical fiber sockets, and supports wall-mounted installation.
Fiber To The Home, FTTH is a transmission method for optical fiber communication. This box directly connect the fiber to the subscriber's home (user desired place). The optical fiber communication mode and strategy is different with FTTN, FTTC, HFC (Hybrid Fiber Coaxial) which are all depend on metal wires including twisted pair and coaxial cable.FTTH is used as the last one kilometer information transmission.
Features
- Built-in 1x8 PLC splitter with low insertion loss and uniform power distribution
- Wall-mounted design, suitable for both indoor FTTH home use and outdoor installation
- Rugged ABS/PC housing with excellent weather resistance for outdoor environments
- Pre-installed SC/APC (or SC/UPC) adapters with dust caps
- Splice tray for fusion splicing and cable storage; optional mechanical splice / fast connector installation
- Splash-proof structure protects fibers and splices from moisture and dust
Specifications
|
Name of Material |
Specification |
Q’ty |
Remark |
|
Heat shrinkable tube |
￠3.0*45mm |
8PCS |
|
|
Nylon cable ties |
3*120mm |
6PCS |
|
|
Plastic expansion tubes |
φ6 |
3PCS |
|
|
Cross Countersunk head tapping screws |
M3.5*25 |
3PCS |
|
|
Adapter |
SC/SX |
8PCS |
optional |
Product dimension

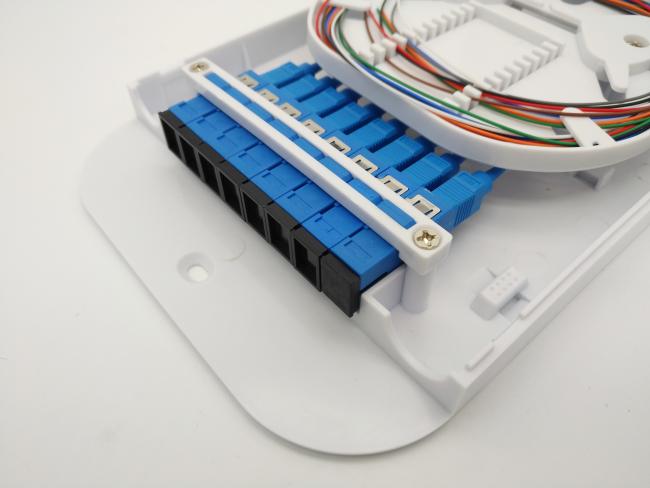

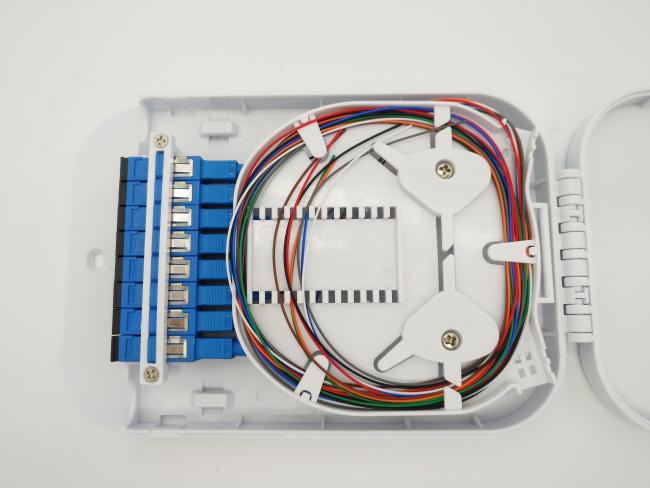

Compact size design, This Fibra GPON splitter box are made of ABS material, and all cable management in front including cable enter, exit, and distriubution. 1in 1 out round cable port at both side of the adapter holder, max. hold 15mm outer diameter of fiber optic cable. 8 SC adapter holders for splitter output pigtail or 8 SC fiber pigtails.
- 1x fiber tray have enough space for fiber optical cable routing and storage.
- there is a place to fix the steel tube which can use PLC splitter.
Although this fiber optic panel is only suitable for indoor wall mounting, its internal design is unique, with each functional section clearly defined and complete, making it the perfect partner for FTTH, FTTB, FTTP, and other home, campus, enterprises installation applications.
