48Fibers MPO MTP Patch Cord OS2 SingleMode 4X12Fiber MPO Jumper Cable LSZH/Riser For Data Center
MPO Fiber Optic Product Description:
It features MPO Male to MPO Female connectors and utilizes Single mode 9/125 10GB fiber. The model is a 12 fiber MPO cable with Type B (Key up, Key Up) polarity and an LSZH jacket. Our MPO patch cable is one of thousands of fiber optic cable assemblies available in-stock and ready to ship.
The cable itself can have 8~144 core, which can be either single mode or multi-mode. The single-mode fiber has three types, G652D / G657A1 / G657A2. While the multi-mode fiber has 62.5/125, 10G OM2 / OM3 / OM4, or bending insensitive 10G multi-mode cable.
Yingda has a strong product design and manufacturing capability for MPO/MTP products. We can provide products specifically tailored to meet customer requirements. We guarantee that all products we deliver have excellent performance and reliability.
MPO to MPO Cable SMF Features:
High-Capacity 48-Fiber Design: Consolidates four 12-fiber links or two 24-fiber links into one managed cable assembly.
Female-to-Female Interface: Unpinned connectors designed for safe, direct mating with Pinned (Male) QSFP+ and QSFP28 transceivers.
Multiple Fiber Options: Available in OM3, OM4, OM5 (Multimode) and OS2 (Singlemode) to match your active equipment specifications.
Space Efficient: Reduces cable bulk in pathways and vertical managers compared to running 24 individual duplex patch cords.
Premium Connectors: Uses high-precision MPO or MTP® (US Conec) connectors to ensure optimal physical contact and minimal signal loss.
Factory Terminated: 100% tested for insertion loss, return loss, and 3D interferometry to guarantee performance.
MPO Connectors Optical Parameters
| Insertion loss(dB) | SM Standard | SM Elite | MM Standard | MM Elite | |
| ≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 | ||
| Return loss(dB) | ≥60 | ≥20 | |||
| Durability (dB) | ≤0.2, 500 times mating | ||||
| Tensile strength(kgf) | 10 | ||||
| Working temperature(℃) | -20 ~+70 | ||||
| Measurement wavelength(nm) | 1310 | 850 | |||
| Standards | IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc | ||||
| Housing color | Green connectors+black boot | Yellow connector+black boot | OM1&OM2: beige connector+black boot
OM3&OM4:aqua connector+black boot OM3&OM4: violet connector+black boot |
||
Geometry parameters
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Radius of curvature(mm) | 500 | – | 50 | – |
| Polishing angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Item | Min | max | ||
| Fiber height (nm) | 1000 | 3000 | ||
| Max fiber height error (nm) | 600 | |||
| Adjacent fiber height error (nm) | -300 | +300 | ||
| Avg. fiber height error (nm) | -300 | +300 | ||
| Central concave (nm) | 300 | |||
LC/SC/FC Fiber Connectors
| Fiber mode | Single Mode | Multimode | |
| Connector polishing | PC | APC | PC |
| Insertion loss (dB) | ≤0.3 | ||
| Return loss (dB) | ≥50 | ≥60 | ≥35 |
| Repeatability(dB) | ≤0.2, 1000 times mating | ||
| Working temperature(℃) | -40 ~+85 | ||
| Measurement wavelength (nm) | 1310 | 850 | |

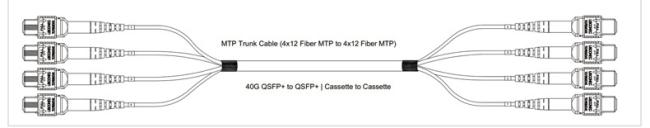

48 cores MPO Trunk Fiber Cable Assembly Structure Illustration

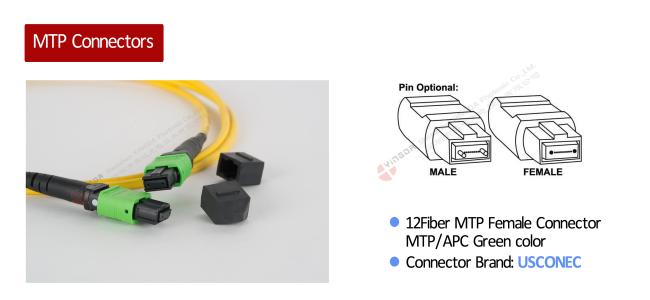

MTP MPO Connector
It's four 12-fiber MPO connectors on each end, there are Male and Female type connector are optional.
Packing information:
There is individual pack for each one, it's including test report. or wooden/plastic drum with test report for large meter. Such as 50M,100M...
Frequently bought together:
YINGDA'S MPO Patch Cord Workshop
YINGDA MPO cable production teams is adopt multiple tests to strictly control quality for clients. 100% End-Face inspection and polarity test.
