Small White Fiber Optic Enclosures Wall Mount With FC , SC , ST , LC Adapters
4 Port Adapter Metal SC Fiber Optic Termination Box, Wall Mount Terminal Box
Model: FTB104
Description
FTB104 metal material white color customer terminal box is used in the end termination of
residential buildings and villas, it is used to fix and splice with pigtails SC/upc or SC/APC,
LC fiber optic connector can be used according to customer request. It contain 2pcs cable
port input, 4output for adapters with cable gland.
Features
- small size,light weight, pleasing in appearance
- wall mounted with mechanical protection function
- max fiber capacity 4 fibers,4 adapter output square standard SC
- available for FC,SC,ST,LC adapters
- hinge and convenient press-pull button lock design
- OEM,customer logo or customer package label or shipping box can be made.
Specifications
|
Model |
Size(H*W*D)mm |
Cable ports |
Max capacity of splice |
|
FTB104 |
140*105*27 |
2 holes |
4 cores |
Packing information
|
Model |
CTN qty/pc |
CTN size/cm |
G.w./kg |
|
FTB104 |
50 |
73*31.5*27.5 |
22.80 |
Product show:

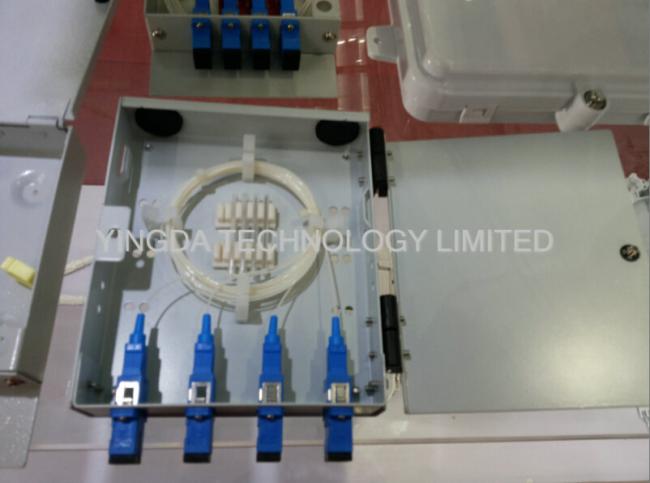

1. pre-assemly inside box with 4pcs SC pigtails 0.9mm single mode, 4 pcs SC / UPC fiber optic adapters, and with cable sealing rubber at the back 2 pcs cable ports. Adapters installed with screws, safe and stable.

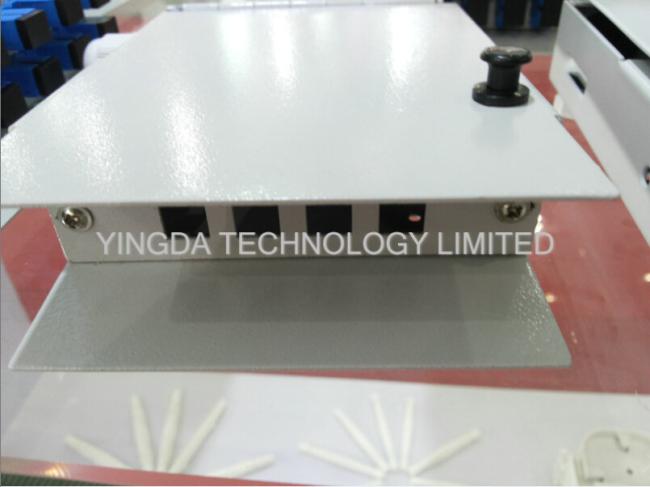

2. empty product outer apearance, SC port 4 pcs, click on
3. empty product details with accessories:
- cable fix circle plastic
- heat shrinkable fixture,
- sleeve 60mm ( heat shrinkable tube )
- wall mount expansion screws
- nylon tie
- adapter mounting screws
- cable gland
- cable port sealing fixture
