FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box
FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box

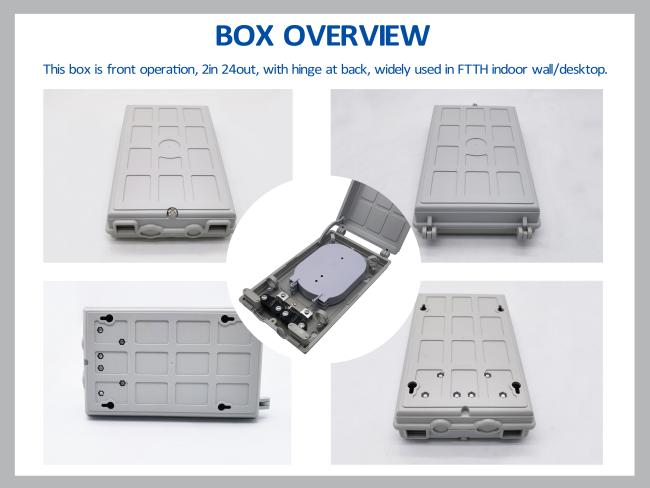

FTB001 Fiber Optic Termination Box is suitable for jointing fiber cable and pigtail, and it protects fiber optic splices and helps to distribute.
The termination box is either a wall-Mounting type or a desktop type, which is mainly used in telecommunication equipment room and network equipment room.
Specification:
|
Model |
Q'ty. of entry/exit ports |
Splice trays |
Max capacity |
SC adapter |
Dimension (LxWxH) |
|
FTB-001-8SC |
2 cable ports + 24 small ports for pigtails |
1 |
12 |
8 |
264x154x56mm |
|
FTB-001 |
2 |
24 |
no |

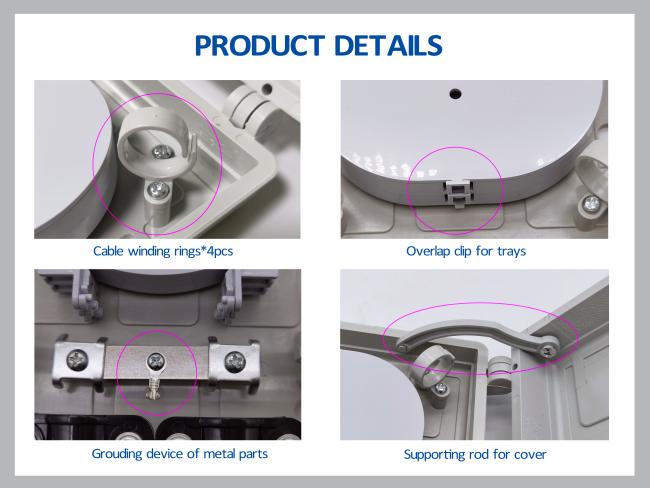

Features
Light weight, small size, large capacity to 24 cores
Provide splice connection protection of fiber cable and pigtail.

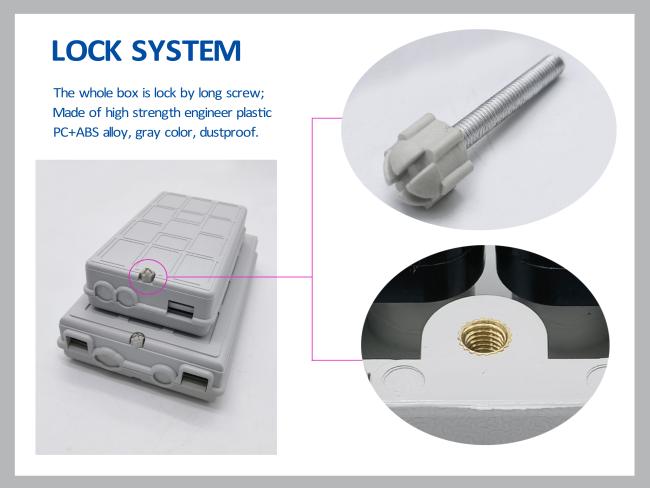

Made of PC high strength engineering plastic material, good mechanical strength, reliable and long lasting.
Slide N Lock fiber optic splice tray with its opening angle above 90 degree, easy for installation and maintenance.
Application
Suitable to connect the drop (or pigtails) to the raiser fibers splices.
Indoor wall Mount IP54
FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.
| Model | CTN qty | CTN size/cm | GW.W./kg |
| FTB-001-8SC | 32 | 65*30*56.5 | 24 |
| FTB-001 | 32 | 65*30*56.5 | 24 |
Empty closure box including:
Cover, Base, splice tray, Heat shrink protective sleeves, Strength member fixtures, Cable Clamps, Strain relief combs, PVC tape, Cable ties, Labeling paper, Wall mounting kits, Tray cover
If you need smaller box, suggest FTB002 as below:
https://www.fibreopticbox.com/buy-FTB002.html?keyword=FTB002
