GPON Passive Steel Tube High Performance PLC Optical Fiber Splitter G652D G657A1 G657A2 Hytrel

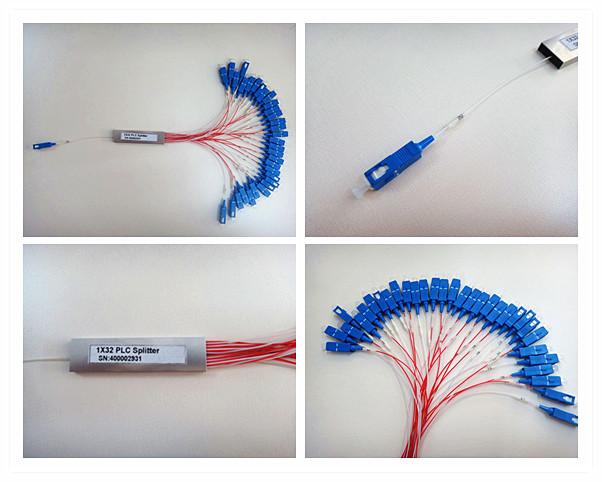

1*32 Passive Plc Optical Fiber Splitter Box Low Pdl, Low Insertion Loss For Fiber To The Home
Fiber optic splitter is used to split a fibre optic beam into several beams at a certain splitting ratio.
Fibre optic splitter is one of the key components in ftth.
YINGDA PHOTONIC supply Planar Light wave Circuits which are key components used in FTTx networks. It including 1XN to 64 and 2XN to 64 types, they are with a wide range of working wavelength from 1260nm to1620nm. The PLC splitter can be with optional various kinds of connectors and cable length, they feature
compact size and very good optical performance.
Specification
1xn Splitter technical
| Split ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Operating Wavelength(nm) | 1260-1620nm | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)P Grade | 3.8 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 | 23.8 |
| Insertion Loss (dB) S Grade | 4 | 7.3 | 10.5 | 13.7 | 16.9 | 21 | 24.2 |
| Loss Uniformity(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss (dB) | 55 | ||||||
| Directivity (dB) | 55 | ||||||
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40- +85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature | -40- +85℃ | ||||||
| Storage Temperature | -40- +85℃ | ||||||
Tube size
| Split ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Mini-Module Dimension(mm) | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | N/A |

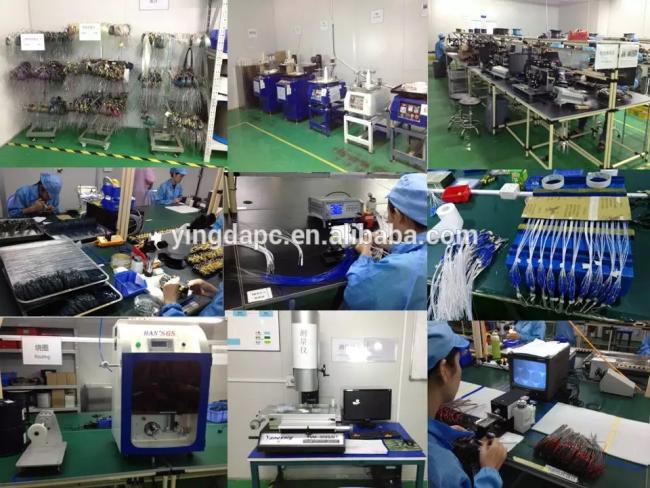

PLC splitter production procedure:
YINGDA have high advanced production machines, uv test machine, PDL, IL RL test instruments, and high and low temperature cycle machines, many imported brand to ensure high quality.
all goods is test 100% before delivery, and at least 10year quality guarantee.

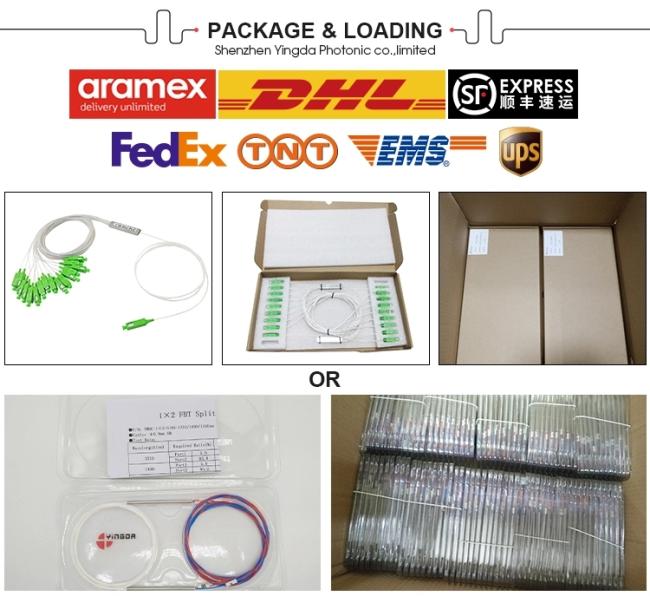

PACKAGE:
1. CARTON BOX, each inner box hold 1pc 1x:32 blockless splitter, with foam and nylon tie, then it is fixed very well. then 20pcs inner box in a mastre box for delivery
2. BLISTER BOX. each 1pc of mini splitter will pack in a plastic transparent blister box, then 200pcs in a master box for delivery.
Features
- Good channel-to-channel uniformity
- High Reliability and Stability
- Low Insertion loss
- Low PDL
- Compact Design
Application
- Optical Signal Distribution
- FTTX Systems
- PON Networks
- CATV Links
