OEM Fiber Optic PLC Splitter 1x64 1x128 2mm Cassette Type Fc Sc Lc St Connectors

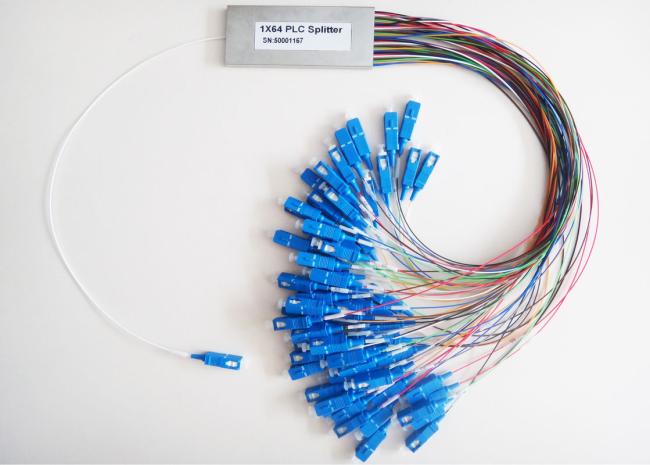

1*64 Fiber Optic Plc Splitter Single Mode 2mm Cassette Type Fc Sc Lc St Connectors
Fiber optic splitter is used to split a fibre optic beam into several beams at a certain splitting ratio.
Fibre optic splitter is one of the key components in ftth. SHENZHEN YINGDA PHOTONIC supply
Planar Light wave Circuits which are key components used in FTTx networks. It including 1XN to
64 and 2XN to 64 types, they are with a wide range of working wavelength from 1260nm to1620nm.
The PLC splitter can be with optional various kinds of connectors and cable length, they feature
compact size and very good optical performance.
Sell point:
1. Connectors; SC FC LC ST
2. Cable output input diameter
3. Cable length (unit: meter)
4. Fiber type: G652D G657A1 G657A2
5. Package detail
6. OEM logo label design
Specification
1xn Splitter technical
|
Split ratio |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
||||
|
Operating Wavelength(nm) |
1260-1620nm |
||||||||||
|
Fiber Type |
G657A1 or customer specified |
||||||||||
|
Insertion Loss (dB)P Grade |
3.8 |
7.1 |
10.2 |
13.5 |
16.5 |
20.5 |
23.8 |
|
|
||
|
Insertion Loss (dB) S Grade |
4.0 |
7.3 |
10.5 |
13.7 |
16.9 |
21 |
24.2 |
|
|
||
|
Loss Uniformity(dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
2.5 |
|
|
||
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
|
|
||
|
Return Loss (dB) |
55 |
||||||||||
|
Directivity (dB) |
55 |
||||||||||
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
||
|
Temperature Stability (-40- +85℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
||
|
Operating Temperature |
-40- +85℃ |
||||||||||
|
Storage Temperature |
-40- +85℃ |
||||||||||
Tube siz
|
Split ratio |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
|
Mini-Module Dimension(mm) |
60*7*4 |
60*7*4 |
60*7*4 |
60*12*4 |
80*20*6 |
100*40*6 |
N/A |
Features
- Good channel-to-channel uniformity
- High Reliability and Stability
- Low Insertion loss
- Low PDL
- Compact Design
Application
- Optical Signal Distribution
- FTTX Systems
- PON Networks
- CATV Links
Yingda can provide customized designs to meet specialized feature applications, and also offers modular assemblies that integrated other components to form a full function module.
